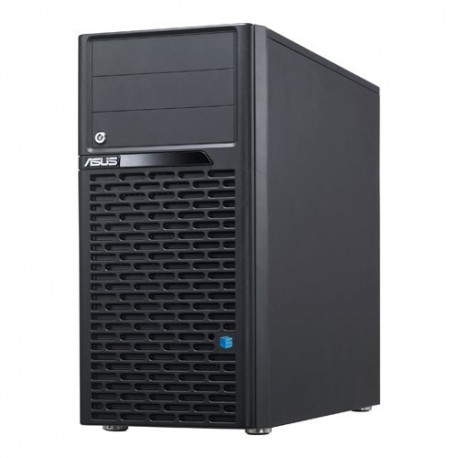

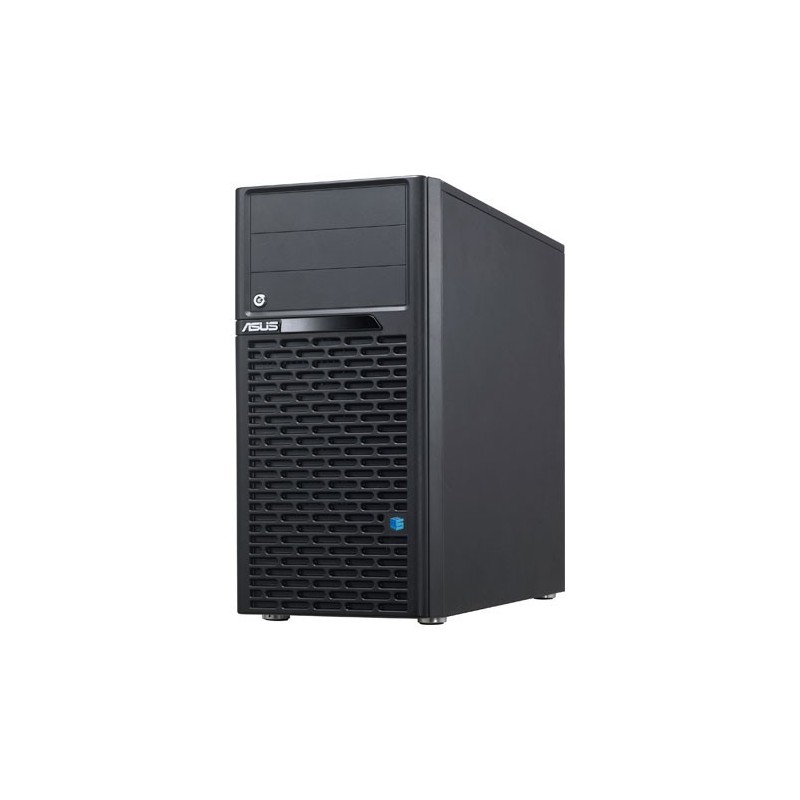

Server Asus ESC1000 G2

ESC1000 G2
intel Centrino2
Power Computing Hybrid Sangat Kuat dengan dilengkapi Integrasi I / O

ASUS ESC1000 G2 adalah workstation generasi kedua profesional berdasarkan Intel ® Xeon ® platform E5-1600 prosesor, menampilkan tiga 5,25 "media bay, empat hot-swap 3.5" SATA kandang hard drive, 80Plus Emas pasokan listrik 1350W, dan enam PCI express 3.0 x16 slot ekspansi. Hal ini dirancang untuk aplikasi profesional dalam dinamika fluida, penelitian medis, teknik, ilmu-ilmu, pemodelan keuangan, real-time grafis, rendering, dan tugas berat ray tracing.

Specifications Server Asus ESC1000 G2

Processor / System Bus

• 1 x Socket 2011
• Intel® Xeon® E5-1600 Series
• Intel® Core™ i7-3900/3800 Processor Family

Core Logic

• Intel® X79 Chipset

Memory

• Capacity : Maximum up to 64GB UDIMM
• Memory Type :
• Quad Channel, DDR3, 2400(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066, UDIMM, non ECC
• Quad Channel, DDR3, 1600/1333/1066, UDIMM, with ECC
• Memory Size :
• 1GB, 2GB, 4GB, 8GB UDIMM

Expansion Slots

• Total: 6
• 4 x PCI-E 3.0 x16 (dual at x16/x16; Quad at x8/x8/x8/x8)
• 2 x PCI-E 3.0 x16 (at x4 mode )

Storage

• SATA Controller :
• Intel® X79
• 2 x SATA3 6Gb/s ports
• 4 x SATA2 3Gb/s ports
• Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
• (Support Software RAID 0, 1, 5, 10 )
• SATA Controller :
• Marvell 88SE9128
• 2 x SATA3 6Gb/s ports
• Marvell® RAID Utility (For Windows Only)
• (Support Software RAID 0/1)

HDD Bays

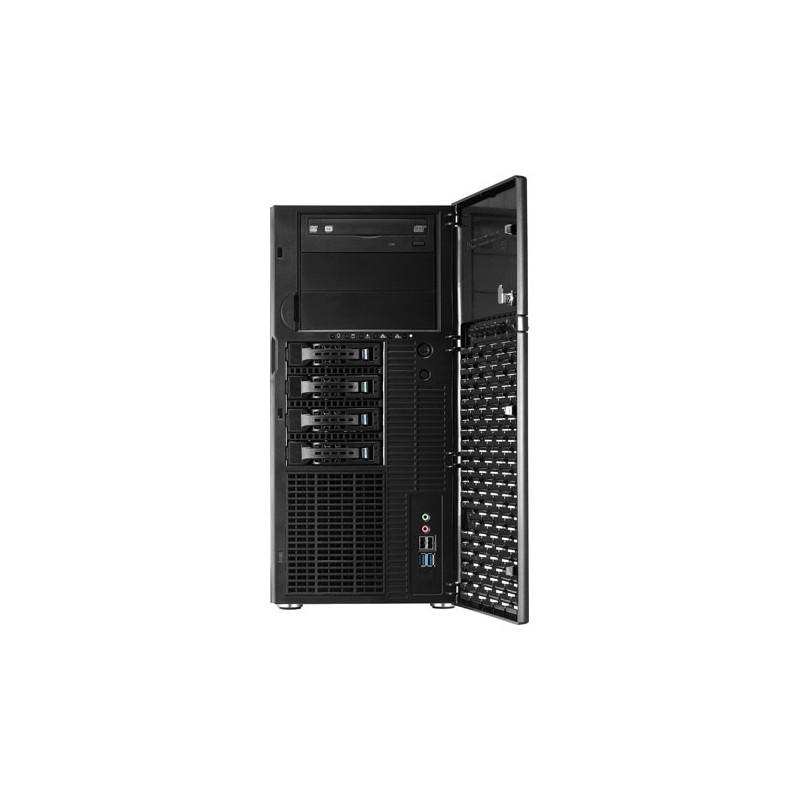

• 4 * Hot-swap 3.5" "HDD Bays

Auxiliary Storage FDD/CD/DVD

• 3 * 5.25" media bays
• (Optional: No ODD/DVD-RM)
• (DVD-RW default for North America)

Networking

• 1 x Intel® 82574L
• 1 x Intel® 82579V (PHY)

Multi-GPU Support

• Support ATI® CrossFireX™ technology, up to Quad CrossFireX
• Supports NVIDIA® 4-Way Geforce SLI™ technology

On Board I/O

• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x USB BIOS Flashback switch
• 1 x S/PDIF Out (Optical)
• 8 x USB 2.0 ports
• 2 x USB 3.0 ports
• 1 x IEEE 1394a port
• 2 x RJ-45 ports
• 1 x 8-channel Audio I/O

OS Support

• Fedora 16
• Windows® 7 32/64-bit
• Windows® Vista 32/64-bit
• Windows® XP 32/64-bit
• RedHat® Enterprise Linux Desktop WS 6.2
• Open SUSE 12.1
• Ubuntu Desktop 11.1

Safety

• Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)

EMI

• US (FCC, CFR47 Part 15, Class B)
• Europe (CE, EN55022 & EN55024)
• Australia (C-TICK)
• Taiwan (BSMI)

Dimensions

• 445mm * 217.5mm * 545mm(5U)

Weight

• 17kg

Power Supply

• 1350W 80+ Gold Single Power Supply
• (following different configuration by region as below)

Environment

• Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
• Non operation humidity: 20% ~ 90% ( Non condensing)

Accessory Box

• 1 x ESC1000 G2 User's Guide
• 1 x Bag of Screws
• 1 x AC Power Cable
• 1 x P9X79 WS Support DVD
• 1 x COM prot Cable

Optional Items

• Cooler for CPU 150W upgrade kit (13G070795020)

Part List Server Asus ESC1000 G2

MB

• ASUS P9X79 WS Workstation board

HDD Backplane

• 1 x SAS/SATA Backplane (BP4LX-TRS8) (60SC00M0-SC0B02)

Front Panel Board

• 1 x Front I/O Board (FPB-TRS8A) (61-C1SDJ1-01)

CPU Heatsink/ Cooler

• 1 x 150W CPU Cooler (13G070795020)

Power Supply Unit

• 1 x 1350W Single Power Supply (0A100-00090100)

HDD Tray

• 4 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)

HDD Cage

• 1 x T50C HDD Cage (13GS1H0AM010-1)

Fan

• 3 x Front Fan (80mm x 25mm) (13G074186020)

• 1 x Rear Fan (120mm x 38mm) (13G074158010)

Fan Holder

• 3 x Front Fan Holder (13GS1600P040-1)

Optical Drive

• 1 x DVD-RW (17G141147005)

• (DVD-RW default for North America)

Mounting Rails

• 1 x Rail-Kit for Tower (13GS0K00M040)

Cable

• 2 x SATA 6G CABLE 7P G/F BLA 500MM (14G000130233)

• 1 x SATA 7Pin TO 7Pin, L=500mm (14G000100101)

• 1 x WIRE CABLE USB 10P TO 10P ,L=500(14G143083100)

• 1 x USB3.0 CABLE HSG TO HSG L=600 (14001-000800DP)

• 1 x AUDIO CABLE 2*5P TO 2*5P HSG (14G143086002)

• 1 x FAN CABLE 4P/M TO 4P/F, L100MM (14G000015410)


1. Spesifikasi dapat berubah tanpa pemberitahuan. Silahkan hubungi toko terdekat untuk informasi yang tepat. Produk mungkin tidak tersedia di semua pasar.
2. Warna PCB dan versi paket software dapat berubah tanpa pemberitahuan.
3. Merk dan nama produk yang disebutkan adalah merek dagang dari masing-masing perusahaan.
