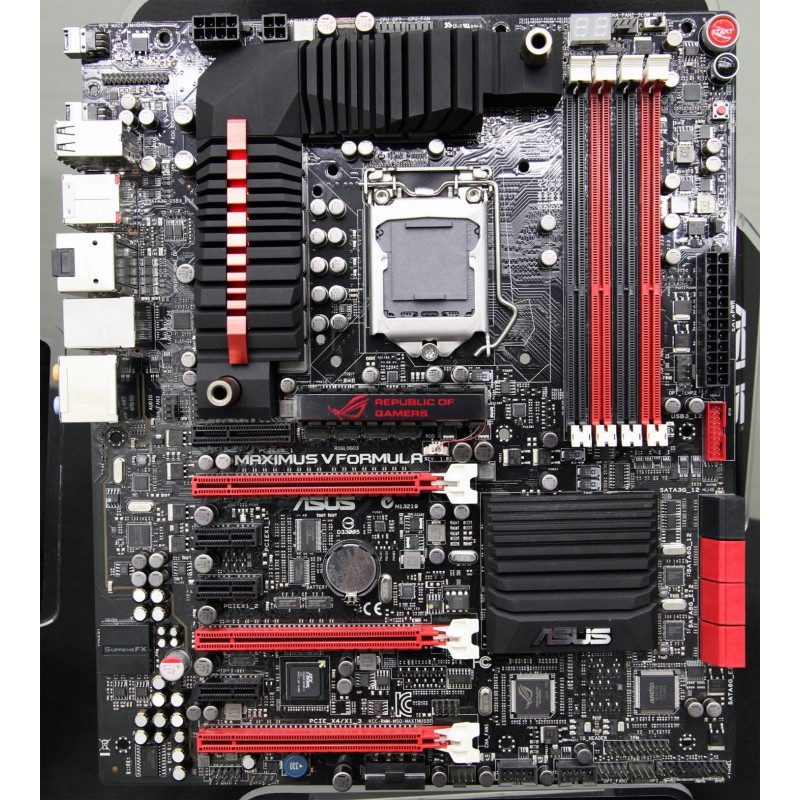

Mainboard Asus Maximus V Formula ThunderFX

Spesifikasi Mainboard Asus Maximus V Formula ThunderFX:

CPU

• Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™
• i3/Pentium®/Celeron® Processors
• Supports Intel® 22 nm CPU
• Supports Intel® 32 nm CPU
• Supports Intel® Turbo Boost Technology 2.0
• * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• * Refer to www.asus.com for CPU support list
• ChipsetIntel® Z77

Memory

• 4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
• MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).

GraphicIntegrated Graphics Processor

• Multi-VGA output support : HDMI/DisplayPort ports
• - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
• Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

• Supports NVIDIA® SLI™ Technology
• Supports AMD 3-Way CrossFireX™ Technology
• Supports AMD CrossFireX™ Technology
• Supports LucidLogix® Virtu™ MVP Technology *1
• Expansion Slots3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) *2
• 1 x PCIe 2.0 x4
• 3 x PCIe 2.0 x1
• 1 x mini-PCIe 2.0 x1 *3

StorageIntel® Z77 chipset :

• 2 x SATA 6Gb/s port(s), red
• 2 x SATA 3Gb/s port(s), black
• 1 x eSATA 3Gb/s port(s), red
• 1 x mini-SATA 3Gb/s port(s) , black
• Support Raid 0, 1, 5, 10
• Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart
• Connect Technology *4
• ASMedia® PCIe SATA controller : *5
• 4 x SATA 6Gb/s port(s), red

LAN

• Intel®, 1 x Gigabit LAN Controller(s)
• Wireless Data NetworkWi-Fi 802.11 a/b/g/n
• Supports dual band frequency 2.4/5 GHz
• Bluetooth
• Bluetooth V4.0
• Bluetooth V3.0+HS

Audio

• SupremeFX IV built-in 7.1-Channel High Definition Audio CODEC
• - Output Signal-to-Noise Ratio (A-Weighted): 110 dB
• - Output THD+N at 1kHz: 95 dB
• - TI 6120A2 high fidelity headphone amplifier
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

• - SupremeFX Shielding™ Technology
• - ELNA premium audio capacitors
• - 1500 uF Audio Power Capacitor
• - Blu-ray audio layer Content Protection
• - DTS Ultra PC II
• - DTS Connect
• - Optical S/PDIF out port(s) at back panel

ThunderFXPerformance and Chipset:

• Output Signal-to-Noise Ratio (A-Weighted):114dB
• Digital-to-Analog Converter: 120dB SNR, 107dB THD+N (Max. 192kHz/ 24-bit)
• C-Media 6631 audio processor (Max. 192kHz/ 24bit)
• Built-in high fidelity headphone amplifier
• Up to 300 ohms headphone impedance support

Special Features:

• Multi-platform Support: PC, Xbox 360, PS3
• Master/ voice/ game volume control independently (PS3, Xbox 360)
• Built-in ENC (Environmental Noise Cancellation) Technology
• GamEQ: 3 preset EQ profiles with graphical audio effect tuning hints
• Xear™ Surround Headphone
• Xear™ SingFX
• FlexBass™, Smart Volume Normalize™
• DS3D GX 1.0, OpenAL

I/O Ports:

• 2x RCA audio input
• 1x USB 2.0 connector
• 1x 3.5mm headphone jack
• 1x 3.5mm microphone jack
• 1x 2.5mm microphone jack for Xbox 360 voice input

Dimensions:

• 191 x 137.5 x 37mm (LxWxH)
• USB Ports
• Intel® Z77 chipset :
• 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® Z77 chipset :

• 8 x USB 2.0 port(s) (4 at back panel, black+white, 4 at mid-board)
• ASMedia® USB 3.0 controller :
• 2 x USB 3.0 port(s) (2 at back panel, blue)
• Overclocking FeaturesmPCIe Combo™ (mPCIe/mSATA combo card)

ROG Connect :

• - RC Diagram
• - RC Remote
• - RC Poster
• - GPU TweakIt

Extreme Engine Digi+ II :

• - 8 -phase CPU power design + 4 -phase iGPU power design
• - 2 -phase Memory power design

ROG Extreme OC kit :

• - Slow Mode
• - LN2 Mode
• - EZ Plug
• ProbeIt

UEFI BIOS features :

• - ROG BIOS Print
• - GPU.DIMM Post
• GameFirst II
• iROG
• Extreme Tweaker
• Loadline Calibration
• USB BIOS Flashback

Overclocking Protection :

• - ASUS C.P.R.(CPU Parameter Recall)

Special FeaturesASUS TurboV EVO :

• - CPU Level Up

ASUS EPU :

• - EPU

ASUS Wi-Fi GO!

• - Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send

ASUS Exclusive Features :

• - AI Suite II
• - Ai Charger+
• - USB Charger+
• - USB 3.0 Boost
• - Disk Unlocker

ASUS Quiet Thermal Solution :

• - ASUS Fan Xpert 2

ASUS EZ DIY :

• - ASUS O.C. Profile
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 2

ASUS Q-Design :

• - ASUS Q-Shield
• - ASUS Q-Code
• - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• - ASUS Q-Slot
• - ASUS Q-DIMM
• - ASUS Q-Connector

Back I/O Ports1 x DisplayPort

• 1 x HDMI
• 1 x eSATA 3Gb/s
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.0
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 1 x Optical S/PDIF in
• 5 x Audio jack(s)
• 1 x Clear CMOS button(s)
• 1 x ROG Connect On/ Off switch(es)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 6 x SATA 6Gb/s connector(s)
• 2 x SATA 3Gb/s connector(s)
• 2 x CPU Fan connector(s) (4 -pin)
• 3 x Chassis Fan connector(s) (4 -pin)
• 3 x Optional Fan connector(s) (4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Slow Mode switch(es)
• 8 x ProbeIt Measurement Points
• 3 x Thermal sensor connector(s)
• 1 x LN2 Mode header(s)
• 1 x EZ Plug connector(s) (4-pin Molex power connector)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Go Button(s)
• 1 x mPCIe Combo header(s)

Accessories

• User's manual
• I/O Shield
• 2 x SATA 3Gb/s cable(s)
• 4 x SATA 6Gb/s cable(s)
• 1 x SLI bridge(s)
• 1 x Q-connector(s) (2 in 1)
• 1 x ROG Connect cable(s)
• 1 x 12 in 1 ROG Cable Label(s)
• 1 x mPCIe Combo card(s) with dual band WiFi 802.11 a/b/g/n module + Bluetooth v4.0/3.0+HS module
• 1 x 2-in-1 RF Cable(s)
• 2 x Wi-Fi Ring Moving Antenna(s)
• 1 x Diablo III Mousepad(s)
• 1 x ROG Logo Sticker(s)
• 1 x 2.5mm Xbox 360 voice input cable(s)
• 1 x dual-head USB cable(s)
• 1 x ThunderFX Xbox 360 AV + 3.5 mm to RCA cable(s)

BIOS

• 64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
• Manageability
• WfM2.0, DMI2.0, WOL by PME, PXE
• Support Disc
• Drivers
• Kaspersky® Anti-Virus
• DAEMON Tools Pro Standard
• GameFirst II
• ROG CPU-Z
• Mem TweakIt
• ASUS AI Suite II
• ASUS WebStorage
• ASUS Utilities
• Form Factor
• Extended ATX Form Factor
• 12 inch x 10.1 inch ( 30.5 cm x 25.7 cm )
• Note*1: LucidLogix Virtu MVP supports Windows 7 operating systems.
• *2-1: PCIe 3.0 speed is supported by Intel® 3rd generation Ivy Bridge Core™ Processors.
• *2-2: x8/x4/x4 mode is supported by Intel® 3rd generation Ivy Bridge Core™ Processors.
• *3-1: The mPCIe 2.0 x1 slot is located on mPCIe Combo™ expansion card.
• *3-2: The mini-PCIe slot is pre-installed with an Wi-Fi/Bluetooth module.
• *4: Supports on Intel® Core™ processor family with Windows® 7 operating systems.
• *5: These SATA ports are for data hard drives only.
