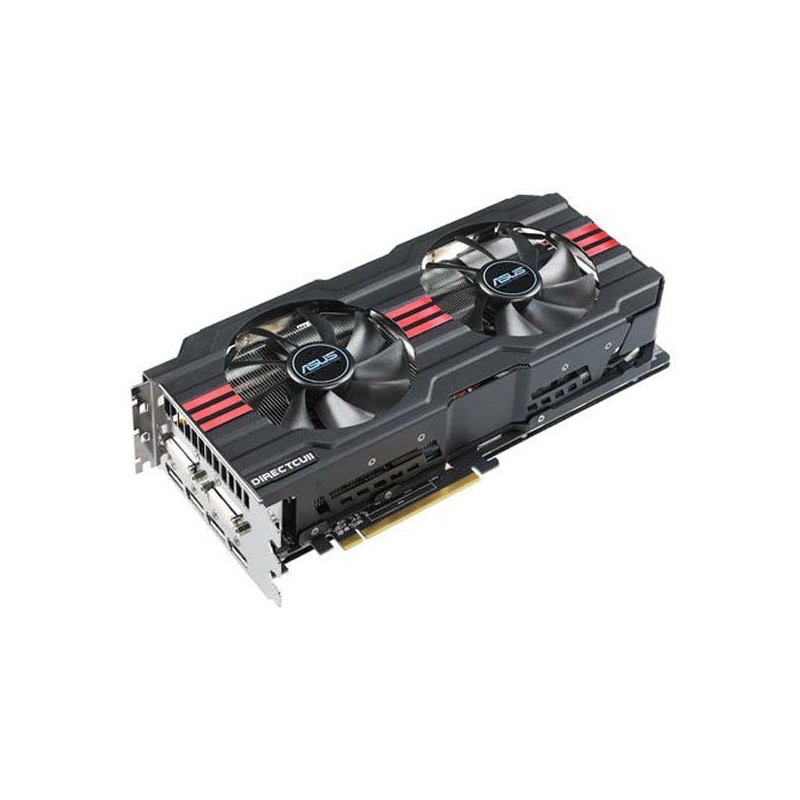

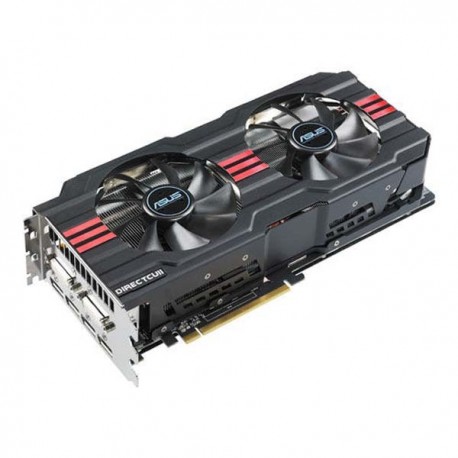

Asus Radeon HD 7970 3GB DDR5 384 Bit DirectCU II

Spesifikasi produk VGA Asus Radeon HD 7970 3GB DDR5 384 Bit DirectCU II

Model
Brand

• ASUS

Model

• HD7970-DC2T-3GD5

Interface
Interface

• PCI Express 3.0 x16

Chipset
Chipset Manufacturer

• AMD

GPU

• Radeon HD 7970

Core Clock

• 1000MHz

Stream Processors

• 2048 Stream Processors

Memory
Effective Memory Clock

• 1400MHz (5.6Gbps)

Memory Size

• 3GB

Memory Interface

• 384-Bit

Memory Type

• GDDR5

3D API
DirectX

• DirectX 11

OpenGL

• OpenGL 4.2

Ports
DisplayPort

• 4 x DisplayPort

DVI

• 2 x DVI (1 Single Link, 1 Dual Link)

General
RAMDAC

• 400 MHz

Eyefinity Support

• Yes

CrossFireX Support

• Yes

Cooler

• With Fan

Power Connector

• 2 x 8-Pin

Dual-Link DVI Supported

• Yes

HDCP Ready

• Yes

Card Dimensions (L x H)

• 11" x 5.1" x 2.1"

Features
Features

• Cranked 75MHz over reference for an ultimate engine clock of 1000MHz
• All new DirectCU thermal design utilizes six all-copper heatpipes and 20% bigger dissipation area, achieving 20% cooler and 14dB quieter performance than reference
• Acclaimed DIGI+ VRM with 12-phase Super Alloy Power technology delivers precise digital power and enhanced durability for stable overclocking
• VGA Hotwire allows you to plug and solder wires on the card's voltage regulators and accurately read and control Vcore, Vmem, and PLL voltages on a hardware level
• GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface
• One card drives up to six screens with AMD Eyefinity 6
