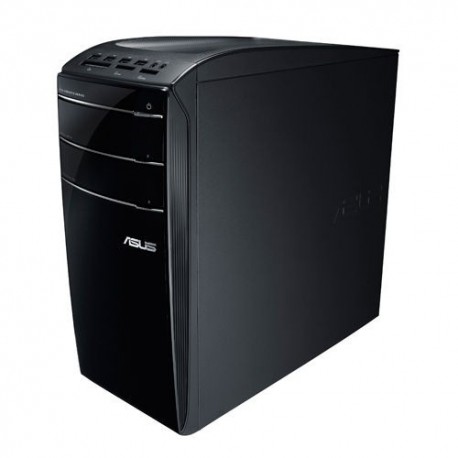

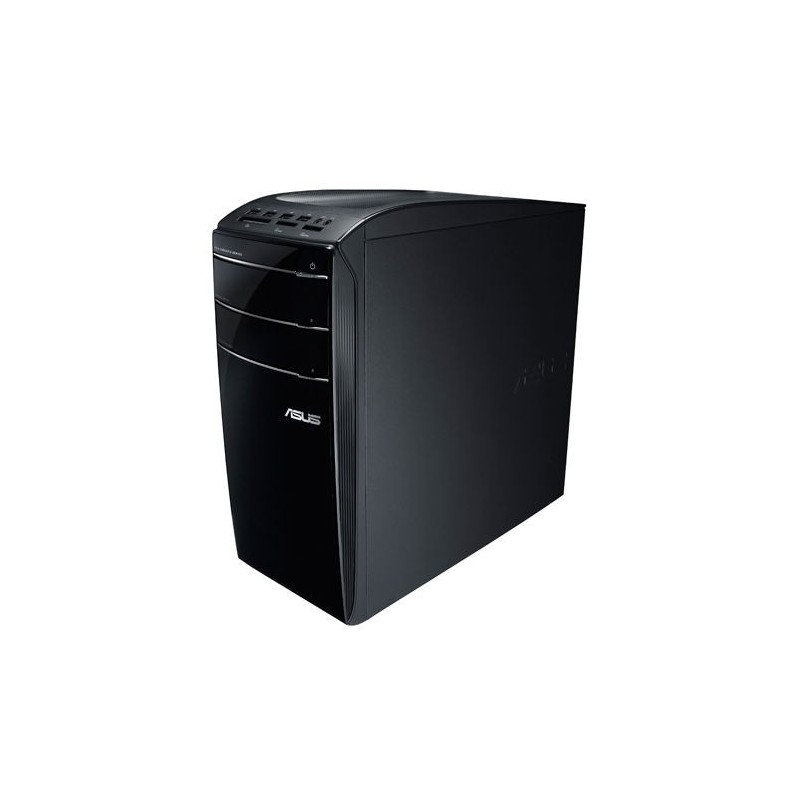

Asus CM6830-ID003D Intel i5 2320

Spesifikasi produk Desktop Asus CM6830-ID003D Intel i5 2320

Sistem Operasi

• DOS

Prosesor

• The 2nd generation Intel® Core™ i3/i5/i7 Processor
• The 3rd generation Intel® Core™ i3/i5/i7 Processor

CPU

• CM6830-ID003D: Intel® Core™ i5-2320(6M Cache, 3.00 GHz)
• CM6830-ID006D/8D: Intel® Core™ i5-3450 - Ivy Bridge(6M Cache, 3.10 GHz)
• CM6830-ID007D: Intel® Core™ i5-3470 - Ivy Bridge(6M Cache, 3.20 GHz)
• CM6830-ID011D: Intel® Core™ i5-3570 - Ivy Bridge(6M Cache, 3.40 GHz)

Chipset

• Intel® H61

Grafis

• NVIDIA® GeForce GT530 1GB
• NVIDIA® GeForce GT530 2GB
• Intel® HD Integrated Graphics
• NVIDIA® GeForce GT620 2GB

Memori

• 4 GB Up to 8 GB
• Dual Channel at 1333MHz
• 2 x DIMM

Slot Ekspansi1 x PCI

• 2 x PCI-e x 1
• 1 x PCI-e x 16

SATA

• 4 x SATA 3Gb/s
• 2 x SATA 6Gb/s

Storage

• 1TB Up to 4TB SATA 6Gb/s Hard Drive (7200RPM)

Drive Optik
LAN

• 10/100/1000 Mbps

Audio

• Realtek ALC892
• High Defination Audio Codec
• High Definition 8 Channel Audio

Port I/O Panel Depan

• 1 x 16 -in-1 Card Reader
• 1 x Headphone
• 1 x Microphone
• 4 x USB 2.0

Port I/O Belakang

• 2 x USB 3.0
• 4 x USB 2.0
• 1 x PS/2(Keyboard/Mouse)
• 1 x DVI-D
• 1 x HDMI-Out
• 1 x VGA(D-Sub)-Out
• 1 x RJ45 LAN
• 1 x S/PDIF out(Audio jack)
• 1 x 8 Channel Audio
• 1 x Optical S/PDIF out

Card Reader

• 16-in-1: CF/ Micro Drive/ MS/ MS Duo/ MS Pro/ MS Pro Duo/ SD/ MMC/ MMC4.0/ RS-MMC/ RS-MMC4.0/ SDHC/ MS Micro-M2/ Mini SD/ Micro SD/ Mini MMC

Power Supply

• 300 W Peak

Dimensi

• 173 x 410 x 420 mm (WxHxD)
• 242 x 510 x 550 mm (WxHxD) with Carton

Berat

• 9 kg

Aksesori

• Keyboard
• Mouse
• Power Cord
• Warranty Card
• Quick Manual

Utilities

• ASUS AI-SUITE II
• ASUS AI Manager
• ASUS My Logo2
• ASUS Update
• ASUS Q-fan
• ASUS@Vibe
• ASUS AI Charger
• ASUS WebStorage
• ASUS Music Maker

Catatan

• Garansi : 2 Tahun Lokal

Monitor:

• CM6830-ID003D, CM6830-ID006D/8D.: 18.5" LED Monitor
• CM6830-ID007D: 20" LED Monitor
• CM6830-ID011D: 18.5" LED Monitor
