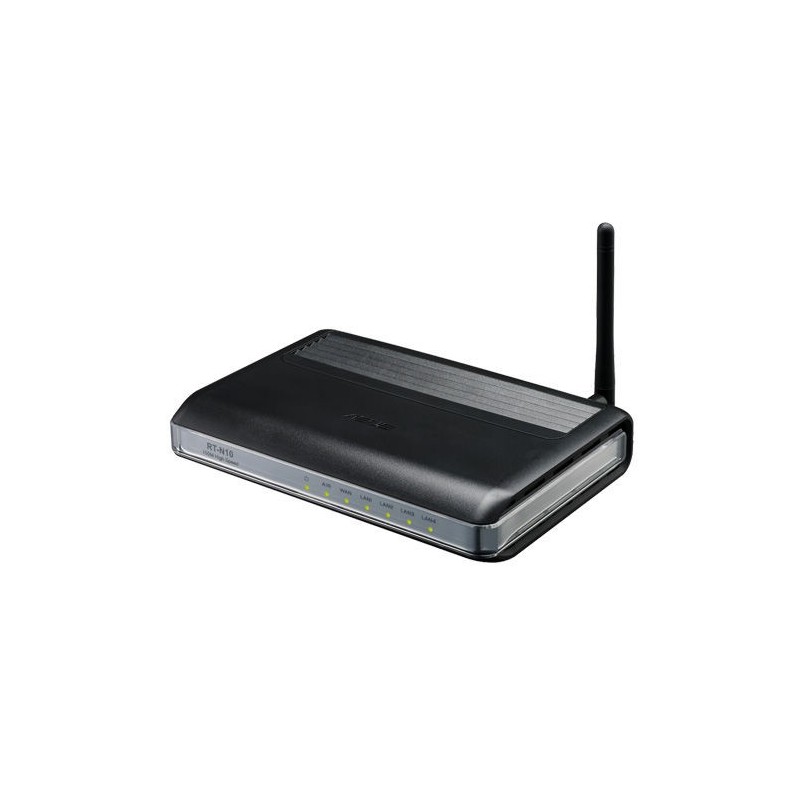

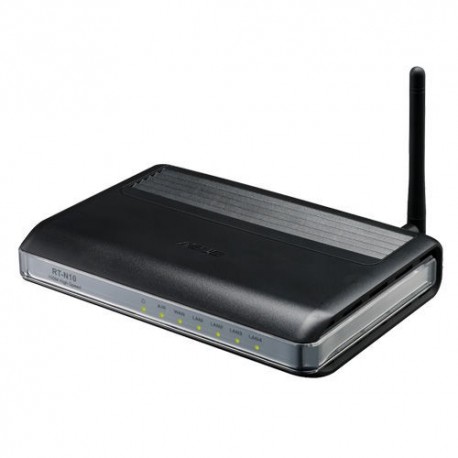

ASUS Wireless Router G2 150 Mbps RT-N10

Spesifikasi produk Networking ASUS Wireless Router G2 150 Mbps RT-N10

Model
Brand

• ASUS

Model

• RT-N10+

Spec
Standards

• IEEE802.11b/g/n-compatible IEEE802.11d, IEEE802.3, 802.3u, 802.11i, 802.11e, IPv4

Security

• Firewall: NAT and SPI (Stateful Packet Inspection), intrusion detection including logging
• Logging: Dropped packet, security event, Syslog
• Filtering: Port, IP packet, URL Keyword, MAC address
• Encryption: 64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK
• Authentication: MAC address Access Control

WAN Ports

• 1 x 10/100M WAN; 4 x 10/100M LAN

LEDs

• Power x 1, WLAN x 1, WPS x 1, WAN x 1, LAN x 4

Buttons

• Restore, WPS

Wireless Data Rates

• Up to 150Mbps

Frequency Band

• 2.4GHz - 2.4835GHz

Antenna

• 1 x 3dbi external fixed antenna

Channels

• 11 CH (US, Canada), 13 CH (EU), 14 CH (Japan)

Transmitted Power

• 14~16dBm(n mode)
• 14~16dBm(g mode)
• 17~19dBm(b mode)

Interface

• Ethernet Port

Power Adapter

• AC input: 100V~240V(50~60HZ); 100V~240V(50~60HZ)
• DC output: 12V with max. 0.5A current

Wireless Adapter included

• No

Dimensions

• 6.81" x 5.08" x 1.30"

Weight

• 0.64 lbs.

Temperature

• 0°C - 40°C (32°F - 104°F)

Humidity

• 10% - 90% (Non-Condensing)

Features
Features

• EZQoS(Easy Quality of service)Allow multiple network activities (FTP, Game, P2P…) to work smoothly at the same time
• Smart Wizard browser-based administration
• Remote management
• Repeater/Router/Bridge mode
• 4 SSIDs
• Radio power adjustment
• Save/restore configuration files
• Upgrades via web browser
• Firmware restoration
• Device discovery
• DHCP server, WAN DHCP client.

Packaging
Package Contents

• RT-N10+
• RJ45 Cable
• Support CD
• Warranty Card
• Power Supply

Manufacturer Warranty
Parts

• 2 years limited

Labor

• 2 years limited
