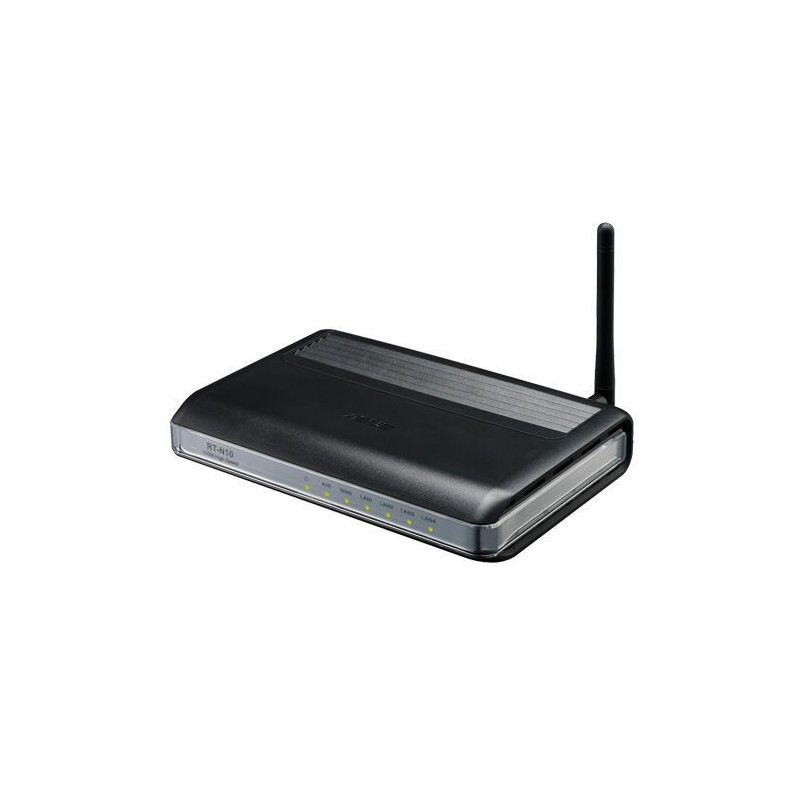

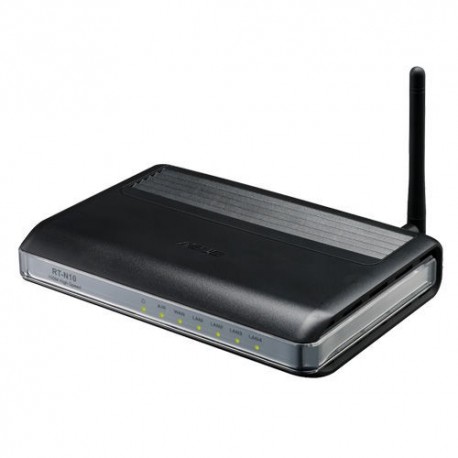

ASUS Wireless Router G2 150 Mbps RT-N10U

Spesifikasi produk Networking ASUS Wireless Router G2 150 Mbps RT-N10U

Network Standard

• IEEE802.11b, IEEE802.11g, IEEE802.11n-compatible IEEE802.11d, IEEE802.3, 802.3u, 802.11i, 802.11e, IPv4

Features

• EZQoS(Easy Quality of service)Allow multiple network activities (FTP, Game, P2P…) to work smoothly at the same time
• Smart Wizard browser-based administration
• Remote management
• Save/restore configuration files
• Upgrades via web browser
• Firmware restoration
• Device discovery
• DHCP server, WAN DHCP client

Interface

• WAN: 1 x RJ45 for 10/100 BaseT;
• LAN: 4 x RJ45 for 10/100 BaseT; Support Ethernet and 802.3 with max. bit rate 10/100Mbps and auto cross-over function (MDI-X)
• Restore button: Push for 5 seconds to restore factory setting
• EZSetup button: Automatically SSID and WEP or WPA configuration

Antenna

• 1 X external detachable dipole antenna
• 1 X internal PCB antenna
• Operating Frequency
• 2.4GHz

Operation Channel

• 11 for N.America, 13 for EU, 14 for Japan

Data Rate

• 802.11n Draft 2.0 up to 150Mbps*
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
• 802.11b: 1, 2, 5.5, 11Mbps

Output Power

• n mode:15~17dBm
• g mode:15~17dBm
• b mode: 16~18dBm

LED Indicator

• Power x 1, AIR x 1, WAN x 1, LAN x 4

Utilities

• Device Discovery: Discover router in network and help user to invoke Web Configuration page
• EZSetup: Help you to setup wireless and Internet connection easily
• Firmware Restoration: Restore firmware while system enters rescue mode

Security

• Firewall: NAT and SPI (Stateful Packet Inspection), intrusion detection including logging
• Logging: Dropped packet, security event, Syslog
• Filtering: Port, IP packet, URL Keyword, MAC address
• Encryption: 64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK
• Authentication: MAC address Access Control

Power Adapter

• AC input:
• 100V~120V(50~60Hz) for US type
• 220V~230V(50Hz) for EU and UK type
• DC output:
• 9V with max. 1A current or 5V with max. 1.2A current

Physical Specifications

• Dimensions: 165 X 115 X 30(L x W x H)mm
• Weight: 260g

Environmental Specification

• Operating Temperature: 0°C to 40°C (32°F to 104ºF)
• Storage Temperature: -20° to 70° C (-4°F to 158°F)
• Operating Humidity: 10% to 90% RH (Non-condensing)
• Storage Humidity: 5% to 95% RH (Non-condensing)

Package Contents

• RT-N10 * 1
• RJ45 Cable * 1
• Support CD * 1
• Antenna * 1
• Warranty Card * 1
• Power Supply * 1
