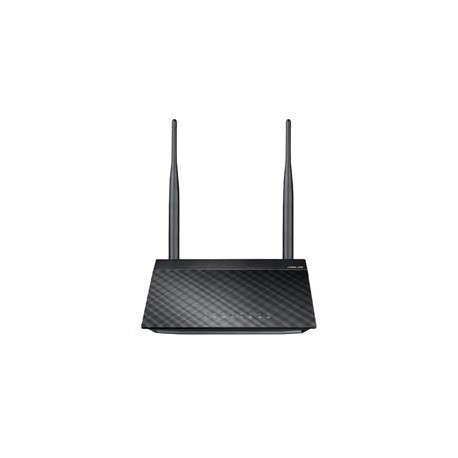

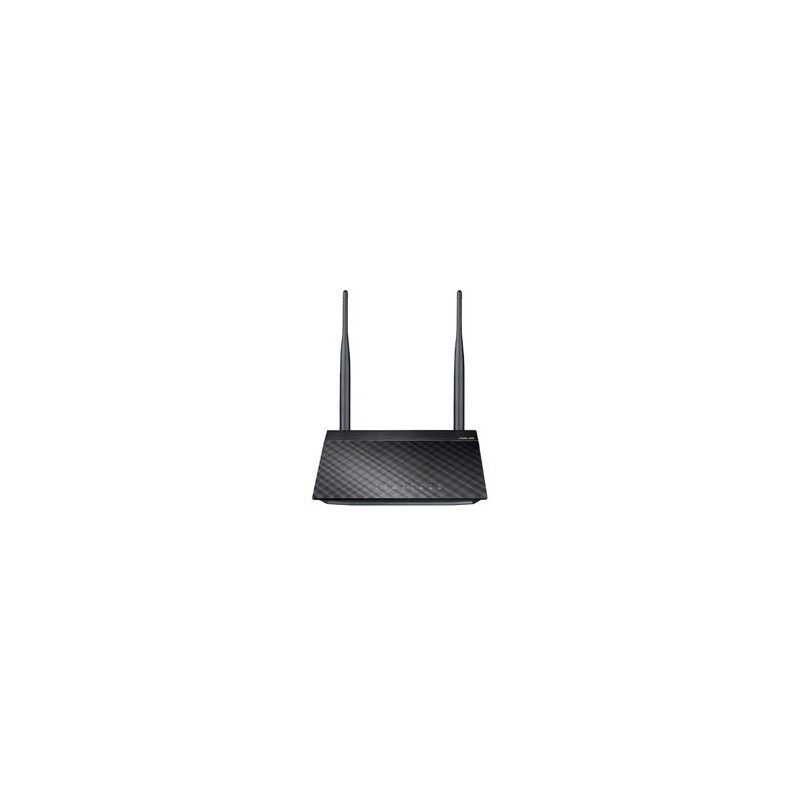

ASUS Wireless-N Router RT-N12E

Spesifikasi produk Networking ASUS Wireless-N Router RT-N12E

Network Standard

• IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4

Product Segment

• N300 complete networking; 300Mbps

Data Rate

• 802.11b : 1, 2, 5.5, 11Mbps
• 802.11g : 6,9,12,18,24,36,48,54Mbps
• 802.11n : up to 300Mbps

Antenna

• External 5 dBi antenna x 2
• *Antenna type will differ according to local regulations and requirement in each country

Operating Frequency

• 2.4GHz

Encryption

• 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support

Firewall & Access Control

• Firewall: NAT and SPI (Stateful Packet Inspection)
• Filtering: Port, IP packet, URL Keyword, MAC address

Management

• DHCP, System Event Log

WAN Connection Type

• Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Utilities

• Device Discovery
• Firware Restore
• Setup Utility

Ports

• 1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN

Button

• WPS Button, Reset Button, Power Button

LED Indicator

• PWR x 1
• LAN x 4
• WAN x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 0.5 A current

OS Support

• Windows® 8 , 32bit/64bit
• Windows® 7 , 32bit/64bit
• Windows® Vista
• Windows® XP , 32bit/64bit
• Mac OS X 10.4
• Mac OS X 10.5
• Mac OS X 10.6
• Mac OS X 10.7
• Linux

Environmental

• Operating Temperature: 0 °C to 45 °C ( °F to ºF)
• Storage Temperature: -20 ° to 70 ° C ( °F to °F)
• Operating Humidity: 10 % to 90 % (Non-condensing)
• Storage Humidity: 5 % to 90 % (Non-condensing)

Dimensions

• 168 x 124 x 30 mm (LxWxH)

Weight

• 210 g

Package Content

• RT-N12E Wireless Router
• RJ-45 Cable
• Power Adapter
• Warranty CardQuick Start GuideSupport CD (User Manual and Utility Software)
