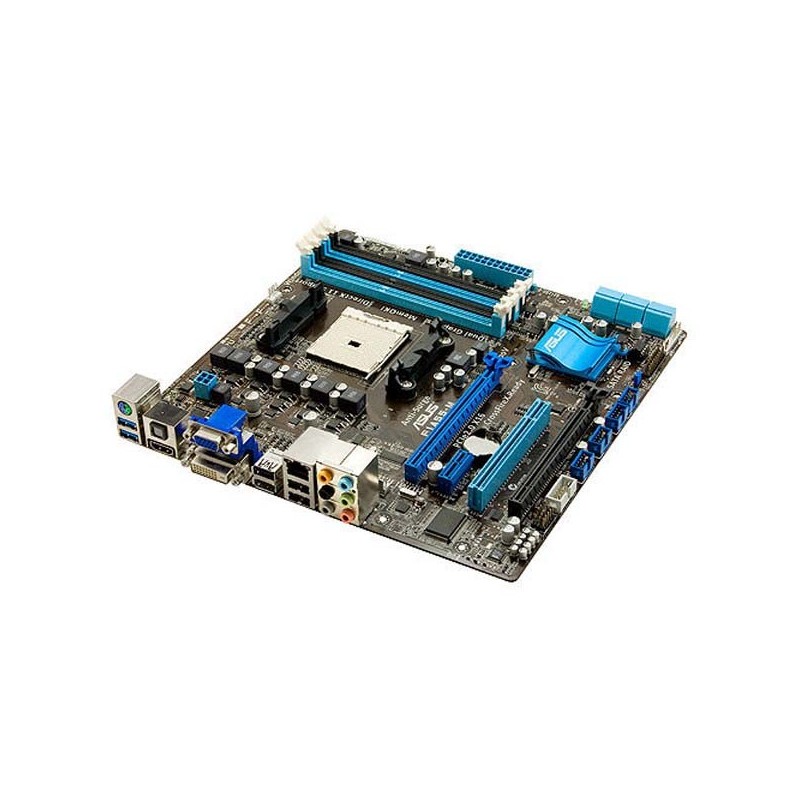

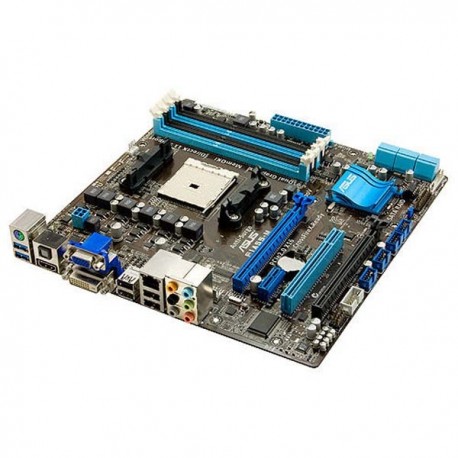

ASUS F1A55-M FM1 A55 DDR3

Spesifikasi produk Motherboard AMD ASUS F1A55-M FM1 A55 DDR3

Model

Brand

• ASUS

Model

• F1A55-M LE

Supported CPU
CPU Socket Type

• FM1

CPU Type

• A4 / A6 / A8 / E2 APU

Chipsets
Chipset

• AMD A55 (Hudson D2)

Memory
Number of Memory Slots

• 2×240pin

Memory Standard

• DDR3 2250(O.C.) / 1866 / 1600 / 1333 / 1066

Maximum Memory Supported

• 32GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 2.0 x16

• 2 (x16, x4)

PCI Express x1

• 1

PCI Slots

• 1

Storage Devices
SATA 3Gb/s

• 6

SATA RAID

• 0/1/10/JBOD

Onboard Video
Onboard Video Chipset

• None

Onboard Audio
Audio Chipset

• Realtek ALC887

Audio Channels

• 8 Channels

Onboard LAN

LAN Chipset

• Realtek 8111E

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 2

Video Ports

• D-Sub + DVI

USB 1.1/2.0

• 6 x USB 2.0

Audio Ports

• 3 Ports

Internal I/O Connectors
Onboard USB

• 6 x USB 2.0

Other Connectors

• 1 x COM port(s) connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x Power Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x parallel port connector(s)
• 1 x Front panel connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)

Physical Spec
Form Factor

• Micro ATX

Dimensions (W x L)

• 9.6" x 9"

Power Pin

• 24 Pin

Features
Features

• UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
• AI Suite II - One-stop Access to Innovative ASUS Features
• Multi-GPU CrossFireX Support!
• Anti-surge- Protect Your Device!
