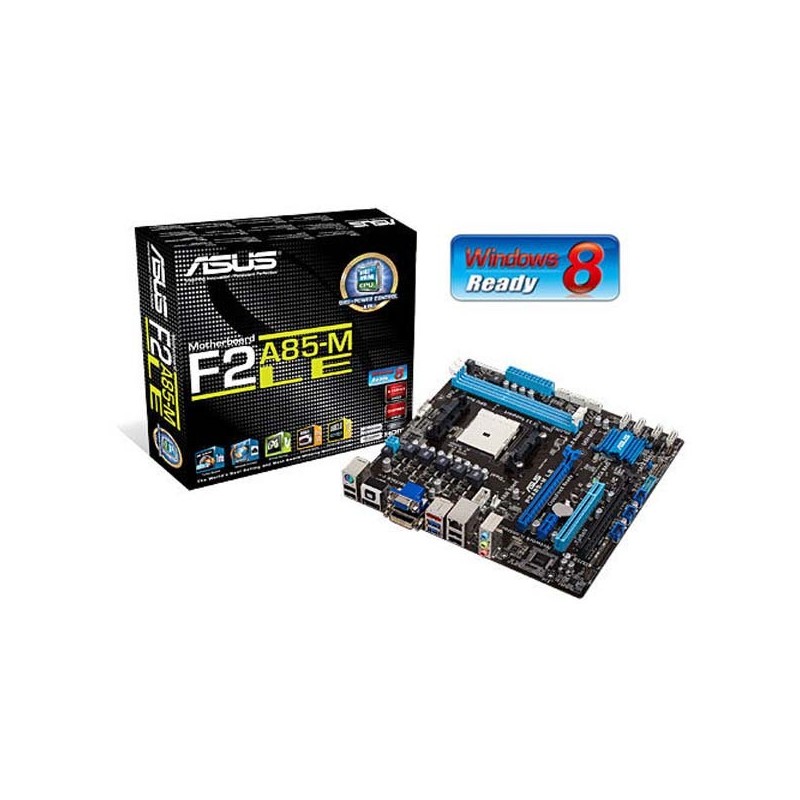

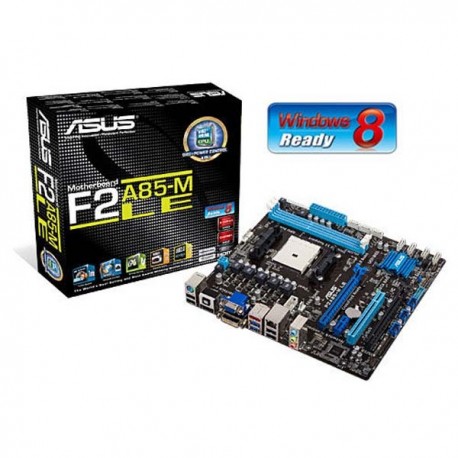

ASUS F2A85-M LE FM2 A85 DDR3

Spesifikasi produk Motherboard AMD ASUS F2A85-M LE FM2 A85 DDR3

CPU

• AMD Socket FM2 Athlon™/ASeries Processors
• Supports CPU up to 4 cores
• Supports AMD® Turbo Core 3.0 Technology

Chipset

• AMD A85X FCH(Hudson D4)

Memory

• 2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Support AMD Memory Profile (AMP) memory
• * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Graphic

• Integrated AMD Radeon™ HD 7000/8000 Series Graphics in A-series APU
• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• Maximum shared memory of 2048 MB
• AMD® Dual Graphics technology support *1
• Supports DirectX 11

Expansion Slots

• 2 x PCIe 2.0 x16 (x16/x4)
• 1 x PCIe 2.0 x1
• 1 x PCI

Storage

• AMD A85X FCH(Hudson D4) chipset :
• 7 x SATA 6Gb/s port(s), gray
• 1 x eSATA 6Gb/s port(s), red
• Support Raid 0, 1, 5, 10, JBOD

LAN

• Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC887 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

USB Ports

• AMD A85X FCH(Hudson D4) chipset : *2
• 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
• AMD A85X FCH(Hudson D4) chipset :
• 10 x USB 2.0 port(s) (4 at back panel, , 6 at mid-board)

ROG Exclusive Features

• Overclocking Protection :
• ASUS C.P.R.(CPU Parameter Recall)

Special Features

• ASUS TPU :
• TurboV
• GPU Boost
• ASUS EPU :
• EPU
• ASUS Digital Power Design :
• Industry leading Digital 3 +2 Phase Power Design
• ASUS DIGI+ VRM Utility
• ASUS Exclusive Features :
• AI Suite II
• Ai Charger
• Anti-Surge
• ESD Guards
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost
• Disk Unlocker
• ASUS Quiet Thermal Solution :
• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert
• ASUS EZ DIY :
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2
• 100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x D-Sub
• 1 x HDMI
• 1 x eSATA
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0 (blue)
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 3 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x COM port(s) connector(s)
• 7 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (4 x -pin)
• 1 x Chassis Fan connector(s) (4 x -pin)
• 1 x Power Fan connector(s) (3 x -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x parallel port connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)

Accessories
User's manual

• I/O Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.7, ACPI V2.0a

Support Disc

• Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)

Form Factor

• mATX Form Factor
• 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
