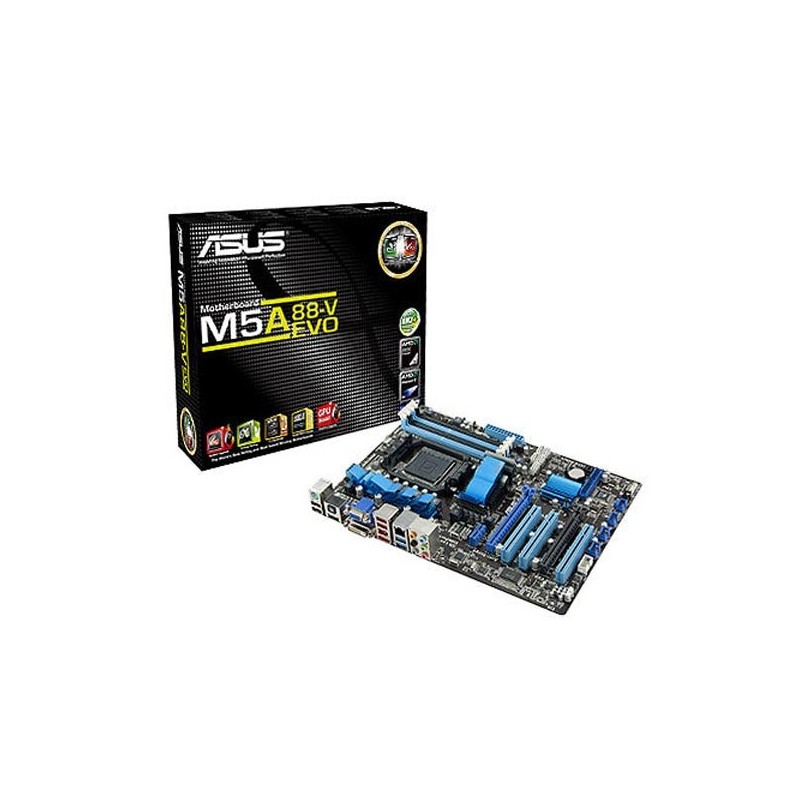

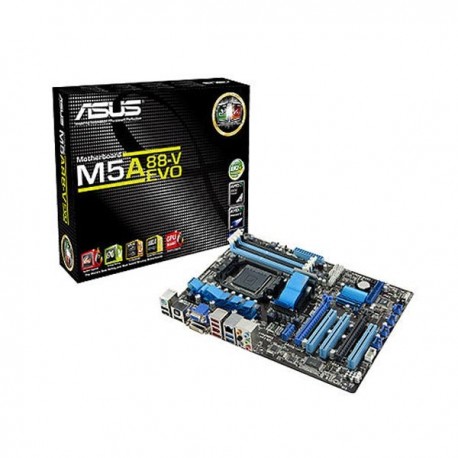

ASUS M5A88-V EVO AM3 AM3 AMD880G DDR3

Spesifikasi ASUS M5A88-V EVO AM3 AM3 AMD880G DDR3

Model
Brand

• ASUS

Model

• M5A88-V EVO

Supported CPU
CPU Socket Type

• AM3+

CPU Type

• FX / Phenom II / Athlon II / Sempron 100 Series

FSB

• 2600MHz Hyper Transport (5200 MT/s)

Chipsets
Chipset

• AMD 880G

South Bridge

• AMD SB850

Memory
Number of Memory Slots

• 4×240pin

Memory Standard

• DDR3 2000(O.C.)/1866(O.C.)/1600(O.C.)/1333/1066

Maximum Memory Supported

• 16GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 2.0 x16

• 2 (x16, x4)

PCI Express x1

• 1

PCI Slots

• 3

Storage Devices
PATA

• 1 x ATA133 2 Dev. Max

SATA 6Gb/s

• 5 x SATA 6Gb/s

SATA RAID

• 0/1/5/10/JBOD

Onboard Video
Onboard Video Chipset

• ATI Radeon HD 4250

Onboard Audio
Audio Chipset

• Realtek ALC892

Audio Channels

• 8 Channels

Onboard LAN
LAN Chipset

• Realtek 8111E

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 1 x PS/2 keyboard/mouse combo port

Video Ports

• D-Sub + DVI

HDMI

• 1 x HDMI

USB 3.0

• 2 x USB 3.0

USB 1.1/2.0

• 4 x USB 2.0

IEEE 1394

• 1 x IEEE 1394a

eSATA

• 1 x eSATA 6Gb/s

S/PDIF Out

• 1 x Optical

Audio Ports

• 6 Ports

Internal I/O Connectors
Onboard USB

• 8 x USB 2.0

Onboard 1394

• 1 x 1394a

Other Connectors

• 1 x IDE connector(s)
• 1 x COM port(s) connector(s)
• 1 x IEEE 1394a connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x Power Fan connector(s)
• 1 x S/PDIF out Header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x MemOK! button(s)
• 1 x TPU switch(es)
• 1 x Core Unlocker switch(es)

Physical Spec
Form Factor

• ATX

Dimensions (W x L)

• 12.0" x 9.6"

Power Pin

• 24 Pin

Features
Features

• AMD 140W CPU Support
• AM3+ CPU Support Ready
• Dual Intelligent Processors - TPU & EPU
• Core Unlocker - Unlock the Potential, Turbocharge your Performance!
• GPU Boost Instant - iGPU Level Up!
• Turbo Unlocker - On demand real-time system tuning
