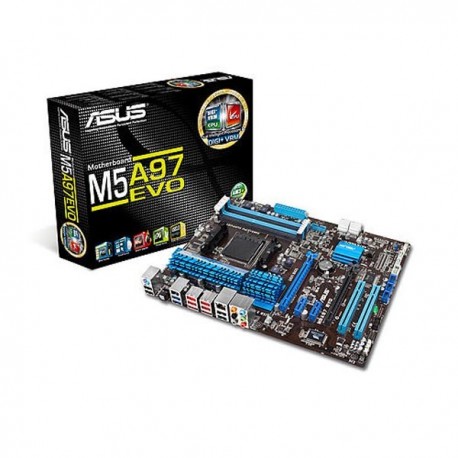

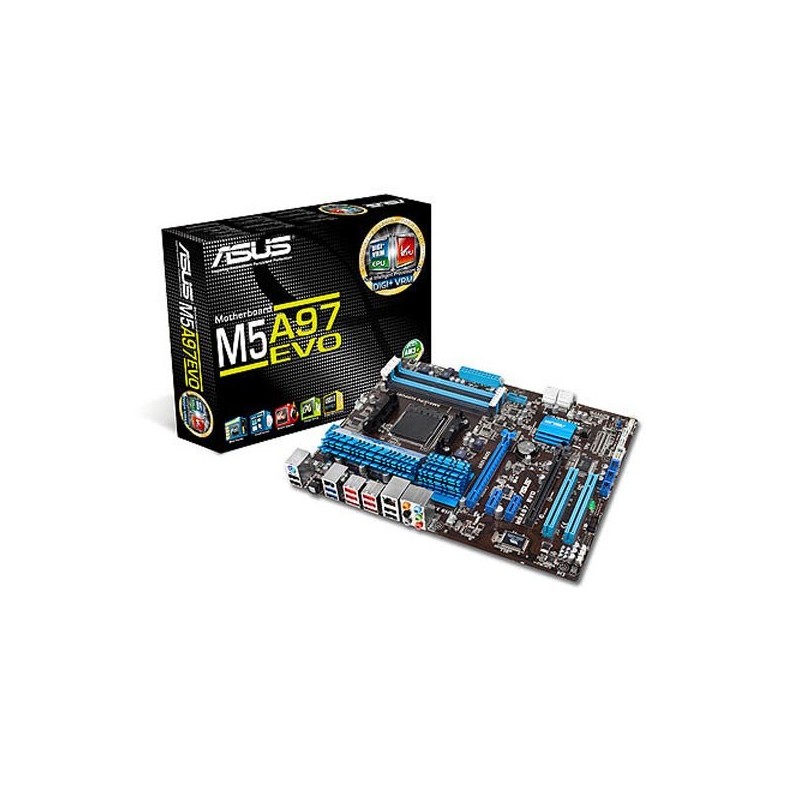

ASUS M5A97 EVO AM3 AM3 AMD970 DDR3

Spesfikasi ASUS M5A97 EVO AM3 AM3 AMD970 DDR3

CPU

• AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
• Supports AM3+ 32 nm CPU
• Supports CPU up to 8 cores
• Supports CPU up to 140 W
• AMD Cool 'n' Quiet™ Technology

Chipset

• AMD 970/SB950

Memory

• 4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1800/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture

System Bus

• Up to 4.8 GT/s HyperTransport™ 3

Multi-GPU Support

• Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

• 1 x PCIe 2.0 x16 (blue)
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 2 x PCIe 2.0 x1
• 2 x PCI

Storage
AMD SB950 controller :

• 6 x SATA 6Gb/s port(s), gray
• Support Raid 0, 1, 5, 10

JMicron® JMB362 controller :

• 2 x eSATA 3Gb/s port(s), red

LAN

• Realtek® 8111E , 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC892 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

• Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
• DTS Surround Sensation UltraPC
• ASUS Noise Filter
• Optical S/PDIF out port(s) at back panel

IEEE 1394

• VIA® 6308P controller
• 2 x IEEE 1394a port(s)
• (1 at mid-board, 1 at back panel)

USB Ports
ASMedia® USB 3.0 controller :

• 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

AMD SB950 controller :

• 14 x USB 2.0 port(s) (8 at back panel, black+red, 6 at mid-board)

ROG Exclusive Features
Overclocking Protection :

• ASUS C.P.R.(CPU Parameter Recall)

Special Features
ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
ASUS TPU :

• Auto Tuning
• TurboV
• TPU switch

ASUS EPU :

• EPU
• EPU switch

ASUS Digital Power Design :

• Industry leading Digital 6 +2 Phase Power Design
• ASUS DIGI+ VRM Utility

ASUS Exclusive Features :

• MemOK!
• AI Suite II
• Ai Charger+
• Front Panel USB 3.0 Support
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• USB 3.0 Boost

ASUS Quiet Thermal Solution :

• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert

ASUS EZ DIY :

• ASUS O.C. Profile
• ASUS EZ Flash 2
• ASUS MyLogo 2
• Multi-language BIOS

ASUS Q-Design :

• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM
• ASUS Q-Connector

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 2 x eSATA 3Gb/s
• 1 x IEEE 1394a
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0
• 8 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x IEEE 1394a connector(s)
• 1 x CPU Fan connector(s) (4 -pin)
• 2 x Chassis Fan connector(s) (1 x 4 -pin, 1 x 3 -pin)
• 1 x Power Fan connector(s) (1 x 3 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x MemOK! button(s)
• 1 x TPU switch(es)
• 1 x EPU switch(es)
• 1 x Clear CMOS jumper(s)

Accessories

• User's manual
• I/O Shield
• 3 x SATA 6Gb/s cable(s)
• 1 x Q-connector(s) (2 in 1)

BIOS

• 32 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2

Manageability

• WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• ASUS Update
• Anti-virus software (OEM version)

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
