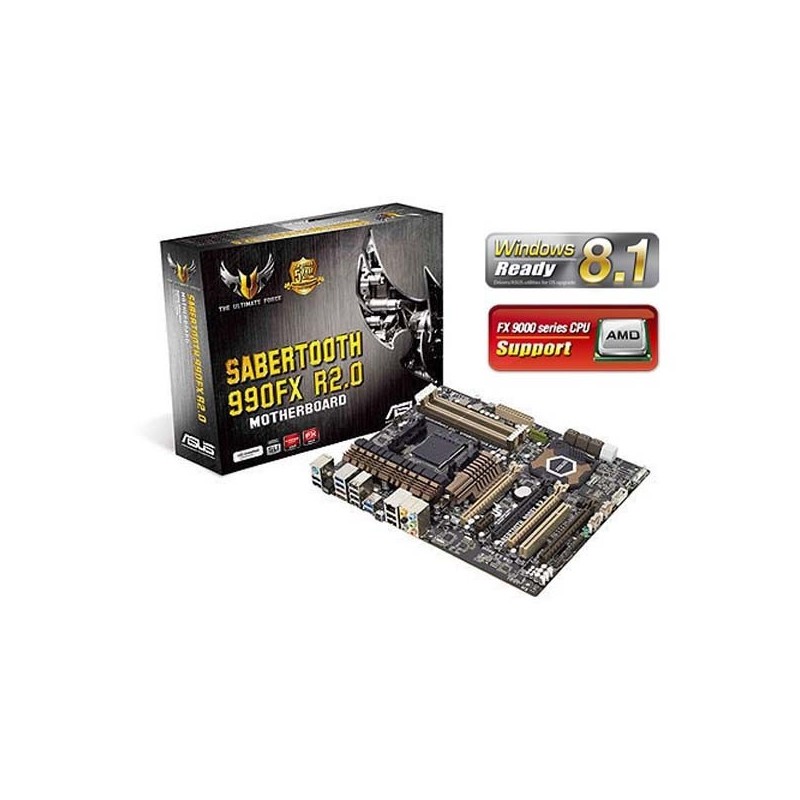

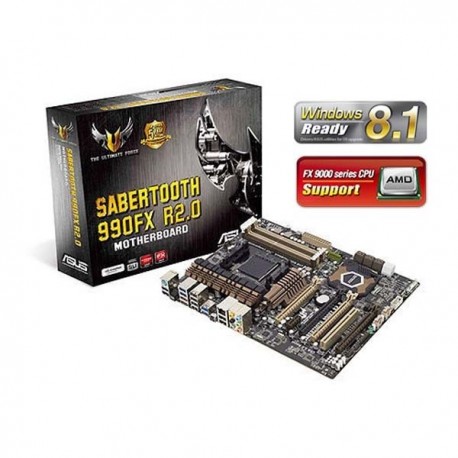

ASUS Sabertooth 990FX AM3 AM3 AMD 990FX DDR3 1600 USB3 SATA3

Spesifikasi produk Motherboard AMD ASUS Sabertooth 990FX AM3 AM3 AMD 990FX DDR3 1600 USB3 SATA3

Model
Brand

• ASUS

Model

• SABERTOOTH 990FX R2.0

Supported CPU
CPU Socket Type

• AM3+

CPU Type

• FX / Phenom II / Athlon II / Sempron 100 Series

FSB

• 2600MHz Hyper Transport (5200 MT/s)

Chipsets
Chipset

• AMD 990FX + SB950

Memory
Number of Memory Slots

• 4×240pin

Memory Standard

• DDR3 1866/1600/1333/1066

Maximum Memory Supported

• 32GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 2.0 x16

• 3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1
• 1 x PCIe 2.0 x16 (x4 mode, black)
• *1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance.

PCI Express x1

• 1 x PCIe 2.0 x1

PCI Slots

• 1

Storage Devices
SATA 6Gb/s

• 8 x SATA 6Gb/s

SATA RAID

• 6 x SATA 6Gb/s port(s) (brown) Support Raid 0, 1, 5, 10

Onboard Video
Onboard Video Chipset

• None

Onboard Audio
Audio Chipset

• Realtek ALC892

Audio Channels

• 8 Channels

Onboard LAN
LAN Chipset

• Realtek 8111F

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 1 x PS/2 keyboard/mouse port

USB 3.0

• 4 x USB 3.0

USB 1.1/2.0

• 8 x USB 2.0

eSATA

• 2 x eSATA 6Gb/s

S/PDIF Out

• 1 x Optical

Audio Ports

• 6 Ports

Internal I/O Connectors

Onboard USB

• 2 x USB 3.0 + 4 x USB 2.0

Other Connectors

• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 4 x Chassis Fan connector(s) (4 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x DirectKey Button(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x Clear CMOS jumper(s)

Physical Spec
Form Factor

• ATX

Dimensions (W x L)

• 12.0" x 9.6"

Power Pin

• 24 Pin

Features
Features

• TUF CeraM!X Heatsink Coating Tech. - 50% Larger Area for Heat Dissipation with the Revolutionary Ceramics-coating Technology.
• TUF Thermal Radar - Real Time Temp. Detection and Heat Removal
• TUF Components [Alloy Choke, Cap. & MOSFET; Certified by Military-standard] - Certified for Tough Duty
• New DIGI+ Power Control - All-New Digital Power Control for both CPU and DRAM
• USB BIOS Flashback - Easy, Worry-free USB BIOS Flashback with Hardware-based Design
• Remote GO! - One-stop PC Remote Control and Home Entertainment
• Windows 8 Ready - Assured Compatibility
