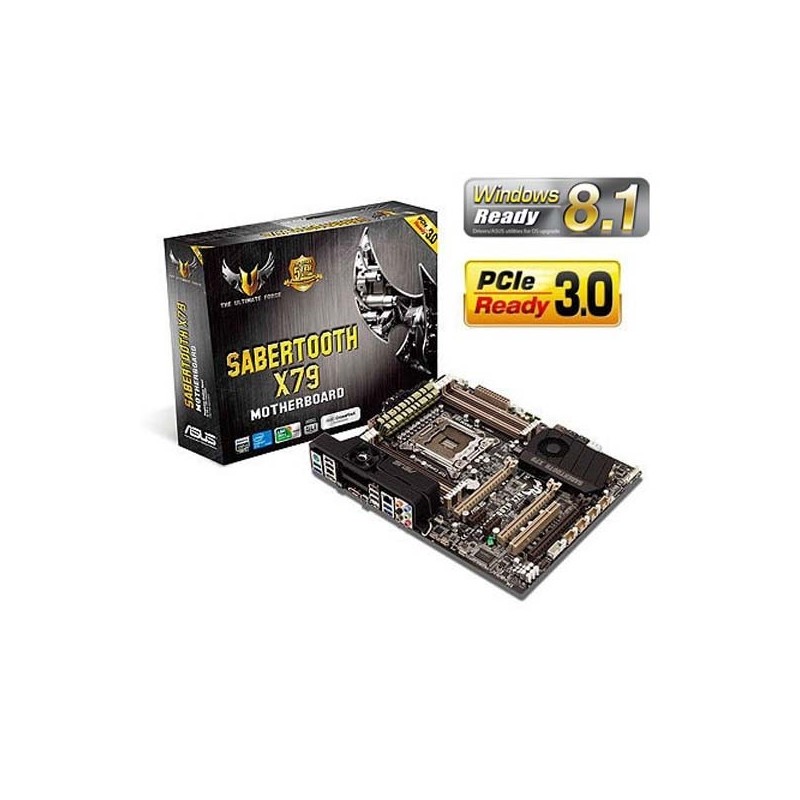

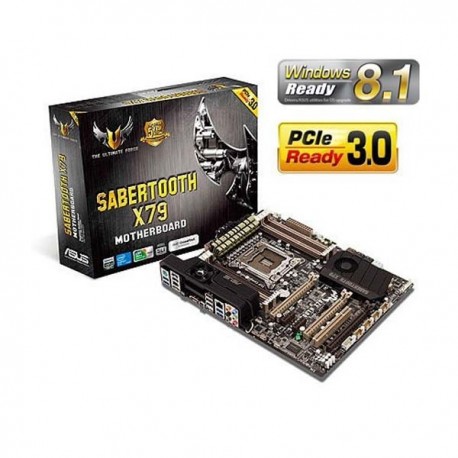

ASUS Sabertooth X79 LGA2011 Intel X79 Quad Channel DDR3 PCIE 3.0 SATA3 USB3

Spesifikasi produk Motherboard Intel ASUS Sabertooth X79 LGA2011 Intel X79 Quad Channel DDR3 PCIE 3.0 SATA3 USB3

Model
Brand

• ASUS

Model

• Sabertooth X79

Supported CPU
CPU Socket Type

• LGA 2011

CPU Type

• Core i7 (LGA2011)

Supported CPU Technologies

• Turbo Boost Technology 2.0

Chipsets
Chipset

• Intel X79

Memory
Number of Memory Slots

• 8×240pin

Memory Standard

• DDR3 1866/1600/1333/1066

Maximum Memory Supported

• 64GB

Channel Supported

• Quad Channel

Expansion Slots
PCI Express 3.0 x16
2 (@ dual x16/x16)

• 1 (@ x8)

PCI Express x1

• 2

PCI Slots

• 1

Storage Devices
SATA 3Gb/s

• 4

SATA 6Gb/s

• 4 x SATA 6Gb/s

SATA RAID

• 2 x SATA 6Gb/s port(s), brown and 4 x SATA 3Gb/s port(s), black support RAID 0, 1, 5, 10

Onboard Video
Onboard Video Chipset

• None

Onboard Audio
Audio Chipset

• Realtek ALC892

Audio Channels

• 8 Channels

Onboard LAN
LAN Chipset

• Intel 82579V

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 1 x PS/2 keyboard/mouse port

USB 3.0

• 4 x USB 3.0

USB 1.1/2.0

• 6 x USB 2.0

IEEE 1394

• 1 x IEEE 1394a

eSATA
1 x eSATA 6Gb/s

• 1 x Power eSATA 6Gb/s

S/PDIF Out

• 1 x Optical

Audio Ports

• 6 Ports

Internal I/O Connectors
Onboard USB

• 2 x USB 3.0 + 8 x USB 2.0

Other Connectors

• 1 x COM port(s) connector(s)
• 1 x CPU Fan connector(s) (4 -pin)
• 4 x Chassis Fan connector(s) (4 -pin)
• 1 x Optional Fan connector(s) (4 -pin)
• 1 x Assistant Fan connector(s) (4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x MemOK! button(s)
• 1 x Clear CMOS jumper(s)

Physical Spec
Form Factor

• ATX

Dimensions (W x L)

• 12.0" x 9.6"

Power Pin

• 24 Pin

Features
Features

• 2nd Generation Intel Core i7 processor family for the LGA 2011 Socket
• Intel X79 Express Chipset
• Support for up to 64GB of system memory with an 8-DIMM design
• TUF Thermal Armor - Total Airflow-Boosting Heat Dissipation
• TUF Thermal Radar - Real Time Temp Detection and Heat Removal
• TUF Components [Choke, Cap. & MOSFET; Certified by Military-standard] - Certified for Tough Duty
• New DIGI+ Power Control - All-New Digital Power Control for both CPU and DRAM
• ASUS SSD Caching - 3X faster performance at a click

Manufacturer Warranty
Parts

• 5 years limited

Labor

• 5 years limited
