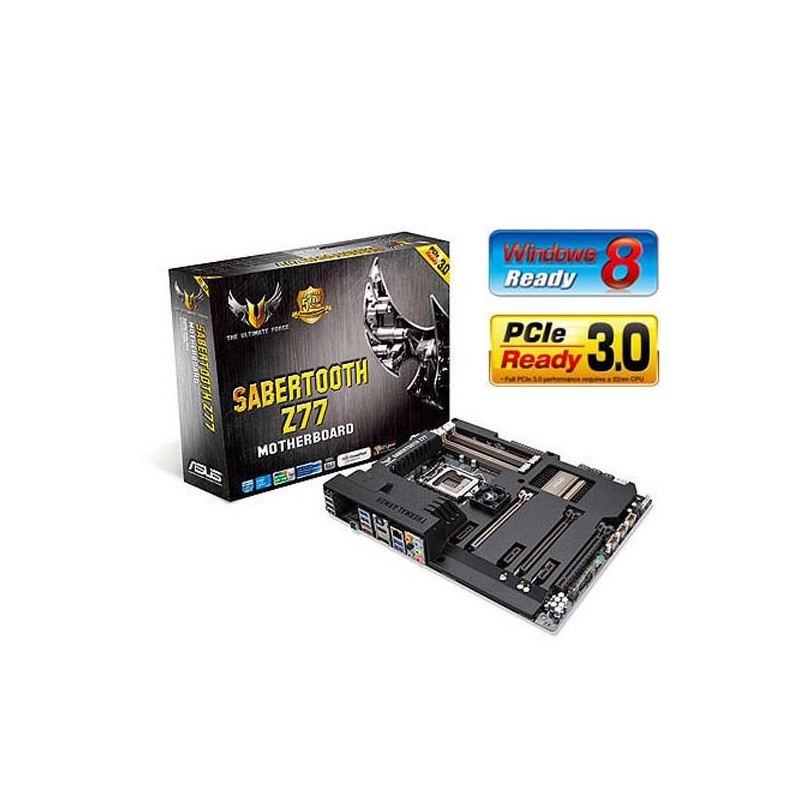

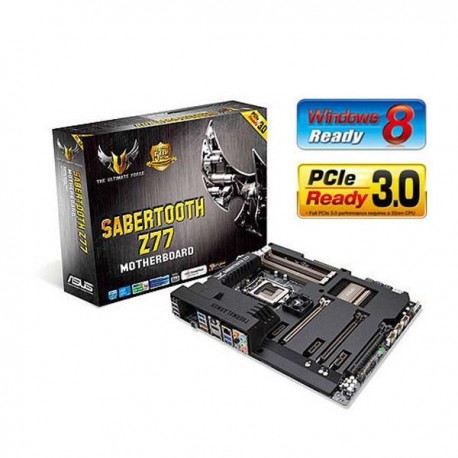

ASUS Sabertooth Z77 LGA1155 Intel Z77 DDR3 SATA3 USB3

Spesifikasi produk Motherboard Intel ASUS Sabertooth Z77 LGA1155 Intel Z77 DDR3 SATA3 USB3

Model
Brand

• ASUS

Model

• SABERTOOTH Z77

Supported CPU
CPU Socket Type

• LGA 1155

CPU Type

• Core i7 / i5 / i3 (LGA1155)

Supported CPU Technologies

• Turbo Boost Technology 2.0

Chipsets
Chipset

• Intel Z77

Memory
Number of Memory Slots

• 4×240pin

Memory Standard

• DDR3 1866/1600/1333

Maximum Memory Supported

• 32GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 3.0 x16

• 2 (x16/0 or x8/x8)

PCI Express 2.0 x16

• 1 @x4

PCI Express x1

• 3

Storage Devices
SATA 3Gb/s

• 4

SATA 6Gb/s

• 4 x SATA 6Gb/s

SATA RAID

• 2 x SATA 6Gb/s port(s), brown and 4 x SATA 3Gb/s port(s), black Support Raid 0, 1, 5, 10

Onboard Video
Onboard Video Chipset

• Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset

• Realtek ALC892

Audio Channels

• 8 Channels

Onboard LAN
LAN Chipset

• Intel 82579V

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
HDMI

• 1 x HDMI

DisplayPort

• 1 x DisplayPort

USB 3.0

• 4 x USB 3.0

USB 1.1/2.0

• 4 x USB 2.0

eSATA

• 2 x eSATA 6Gb/s

S/PDIF Out

• 1 x Optical

Audio Ports

• 6 Ports

Internal I/O Connectors

Onboard USB

• 2 x USB 3.0 + 6 x USB 2.0

Other Connectors

• 1 x CPU Fan connector(s) (4 -pin)
• 1 x CPU OPT Fan connector(s) (4 -pin)
• 4 x Optional Fan connector(s) (4 -pin)
• 2 x Assistant Fan connector(s) (3 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x MemOK! button(s)
• 1 x Clear CMOS jumper(s)

Physical Spec
Form Factor

• ATX

Dimensions (W x L)

• 12.0" x 9.6"

Power Pin

• 24 Pin

Features
Features

• LGA1155 Intel 3rd/2nd Generation Processors Ready
• TUF Thermal Armor - Total Airflow-Boosting Heat Dissipation
• TUF Dust Defender - Repel the Dust, Expand the Lifespan
• TUF Thermal Radar - Real Time Temp. Detection and Heat Removal
• TUF Components [Choke, Cap. & MOSFET; Certified by Military-standard] - Certified for Tough Duty
• New DIGI+ Power Control - All-New Digital Power Control for both CPU and DRAM
