ATEN VE812 HDMI over Single Cat 5 Extender

Spesifikasi Produk ATEN VE812 HDMI over Single Cat 5 Extender

Video Input
Interface

• 1 x HDMI Type A Female (Black)

Impedance

• 100 Ώ

Max Distance

• 1.8 m

Video Output
Interface

• 1 x HDMI Type A Female (Black)

Impedance

• 100 Ώ

Video
Max. Data Rate

• 10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

• Up to 340 MHz

Compliance

• HDMI (3D, Deep Color, 4K)
• HDCP Compatible
• Consumer Electronics Control (CEC)

Max resolutions / Distance

• Up to 4K@70m (Cat 5e/6); 1080p@100m

Audio
Input

• 1 x HDMI Type A Female (Black)

Output

• 1 x HDMI Type A Female (Black)

Power

• Connector: 1 x DC Jack

Consumption:

• VE812T: 5.3 VDC, 1.9W;
• VE812R: 5.3 VDC, 4.5W

Environment
Operating Temp.

• 0-50°C

Storage Temp.

• -20 - 60°C 0-80% RH, Non-Condensing

Berat dan ukuran ATEN VE812 HDMI over Single Cat 5 Extender

Physical Properties
Housing

• Metal

Weight

• 0.43 kg

Dimensions (L x W x H)

• 14.17 x 10.30 x 3.00 cm

Isi Paket Produk ATEN VE812 HDMI over Single Cat 5 Extender

Package Contens :

• 1x VE812T HDMI Over Single Cat 5 Transmitter
• 1x VE812R HDMI Over Single Cat 5 Receiver
• 2x Power Adapters
• 1x Mounting Kit 1x User Instructions

Ringkasan produk ATEN VE812 HDMI over Single Cat 5 Extender

Feature :

• Extends the distance between HDMI source and HDMI display
• Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
• HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
• Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
• Long distance transmission - up to 100m
• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
• EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
• Supports up to 340MHz bandwidth for high performance video
• Supports Dolby True HD and DTS HD Master Audio
• Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

ATEN VE812 HDMI lebih Tunggal Cat 5 Extender memungkinkan tampilan HDMI yang berlokasi hingga 100 meter dari perangkat sumber . Hal ini dapat mudah diperluas dengan menggunakan kabel 5e satu Cat , yang hemat biaya .

ATEN VE812 tidak hanya mendukung HDMI ( 3D , Deep Color ) tetapi juga Ultra HD ( 4k x 2k ) dan HDCP kompatibel . Selanjutnya jauh EDID pass-through memastikan kualitas video yang optimal untuk tampilan HDMI Anda .

ATEN VE812 sempurna untuk ruang pertemuan , home theater atau instalasi yang membutuhkan transmisi jarak jauh dan kualitas video yang superior .

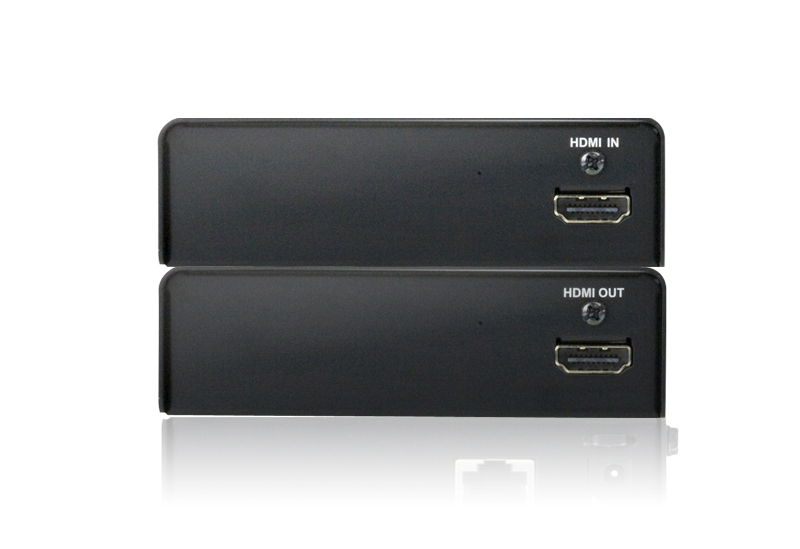

Gallery Image Produk ATEN VE812 HDMI over Single Cat 5 Extender
