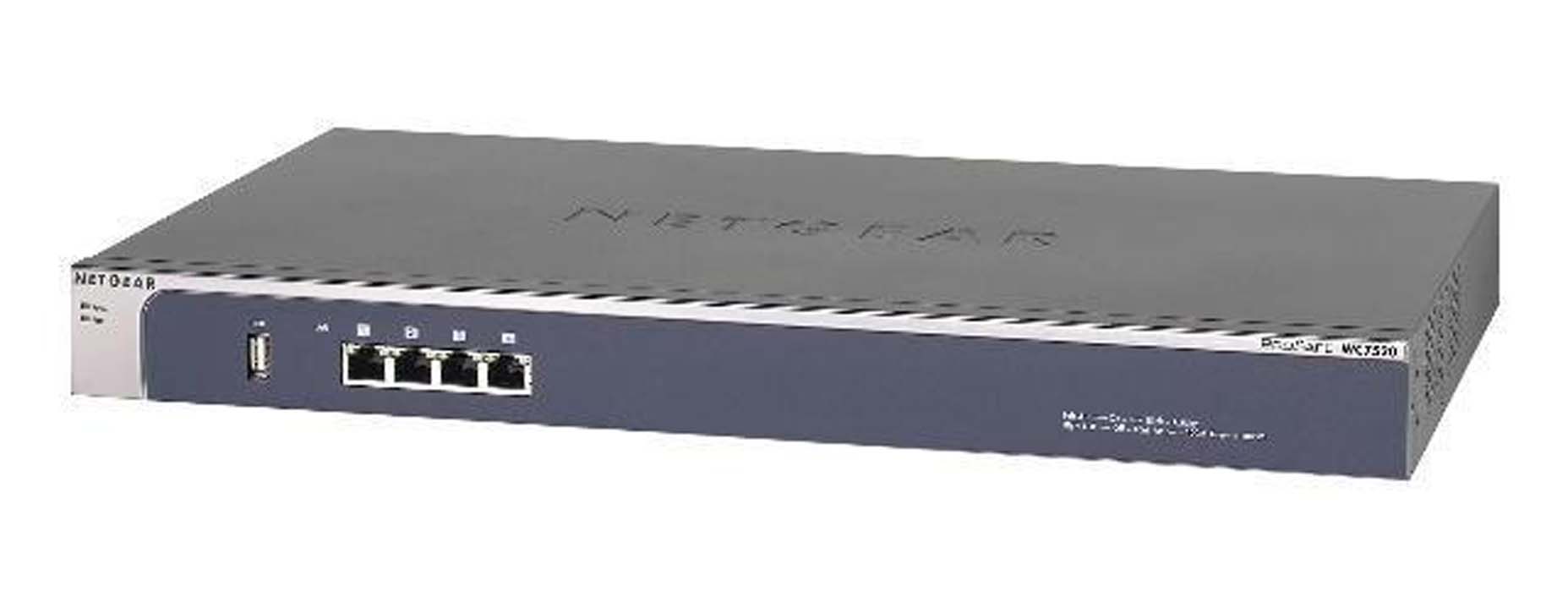

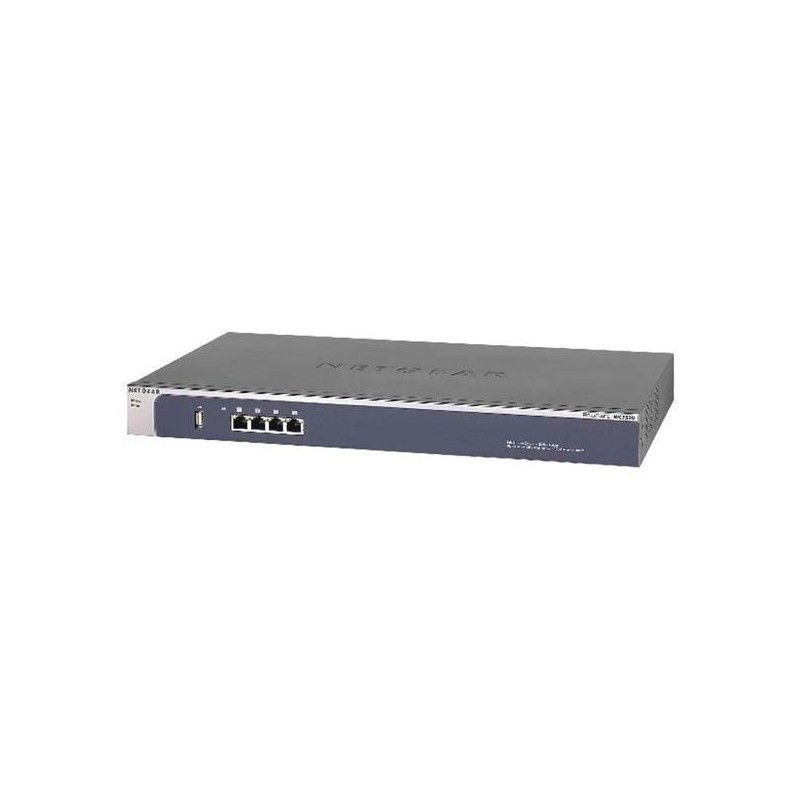

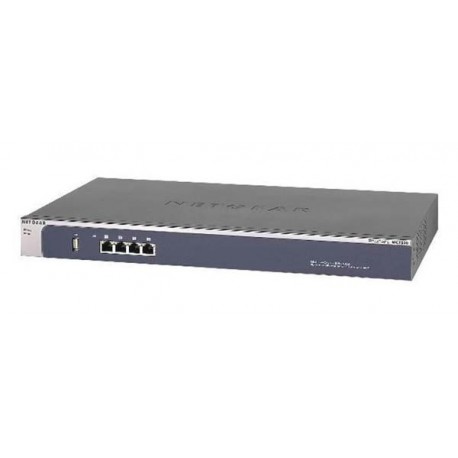

Netgear WC7520 ProSAFE Wireless Controller

Spesifikasi Netgear WC7520 ProSAFE Wireless Controller

Supported AP Models	WNDAP360 ProSafe Dual Band 802.11n Wireless Access Point WNDAP350 ProSafe Dual Band 802.11n Wireless Access Point WNAP320 ProSafe 802.11n Wireless Access Point WNAP210 ProSafe 802.11n Wireless Access Point
Supported Modes	Wireless-A/B/G/N
Main Functionality	Wireless Controller
Number of Access Points	50 per controller
Maximum AP Supported per Controller	20 (default) 50 with 3 x Incremental 10-AP License Upgrades (WC7510L)
Maximum Controllers that Can Be Stacked Together	3
Maximum AP Supported per Stacked Setup	150
Maximum Profile Groups per Controller	8
Each access point belongs to only one profile group	Maximum Security Profiles (SSID) per Profile Group 8 per radio (2.4 GHz; 5 GHz) 16 with WNDAP350 Maximum Security Profiles (SSID) per Controller 128 (assuming WNDAP350/WNDAP360 and 8 security profiles per radio) Maximum Security Profiles per Network (3 Controllers) 512 Maximum Rogue APs Detectable per Controller 512 Maximum Floorplans per Controller 3 (default) Additional floorplans possible with USB local storage (up to a maximum of 18 floorplans)
Number of Captive Portals per Controller	1
Maximum Clients per AP	WNAP210: up to 32 clients; WNAP320: up to 64 clients WNDAP350 and WNDAP360: up to 64 clients per radio (128 clients total)
Maximum Clients per Controller	None other than maximum clients per AP
L2 Mobility	L2 fast roaming support between the APs
L3 Mobility	L3 fast roaming support with encrypted tunnelling between the APs and the controller
Maximum VLANs per Controller	64 VLANs for SSIDs 1 configurable management VLAN
Controller Redundancy	VRRP-based N+1 redundancy with failover 1:1 when one cold redundant Controller and one production Controller are configured to form a Redundancy group 1:2 or 1:3 when one cold redundant Controller is added to a Stack of 2 or 3 production Controllers Licenses on the redundant controller need - at least - to match those on each protected production controller
LICENSE CONFIGURATIONS	Per Controller: Up to 50 Access Points (AP) with Appropriate Licenses Per Stack: Up to 150 Access Points (AP) with Appropriate Licenses
IP AND VLANS CONFIGURATION	DHCP Server/Relay Integrated DHCP server Multiple DHCP server/pool can be added for different VLANs (up to 64) VLANs for the Wireless Controller One management VLAN (configurable VLAN ID) VLANs Access Points / Multiple SSIDs 64 VLANs VLANs Deployment The Wireless Controller must have IP connectivity with the access points through the management VLAN. If the Controller and the APs are on different management VLANs, external VLAN routing must allow IP connectivity between the Controller and the APs. RF PLANNING AND MONITORING Integrated Deployment Planning Hierarchical view of the network: Floor maps upload and floor maps dimensions input Automated RF planning algorithm: Computed number of APs required to cover a floor plan Theorical cloud coverage indicated for each AP for positionning assistance on the floor plan RF Monitoring Coverage computing per floor plan Alert for any detected coverage holes with mitigation options with neighboring APs Rogue AP/blacklisted clients triangulation
RF MANAGEMENT	Automatic Channel Allocation Channel automatic distribution to reduce interference Auto-channel allocation takes into consideration the AP location, interferences, and neighborhood maps for each AP Modifiable list of corporate channels to be used Scheduled mode for auto-channel allocation Automatic mode available in case of high level of interference
Automatic Power Control	Optimum transmit power determination based on coverage requirements Automatic power control mode available Neighborhood scan of RF environment to minimize neighboring AP interference and leakage across floors Coverage Hole Detection Automatic mode Down APs or compromised RF environment detection with alerts Self healing: Automatic neighboring AP power increase to fill in for coverage losses Load Balancing AP load monitoring and overload prevention Client redirection to lightly loaded neighboring APs Fast Roaming Seamless rapid mobility across VLAN and subnets Includes 802.11i pre-auth and fast roaming Fast roaming support accross L2, and L3 for video, audio and voice over wireless client
Quality of Service	WMM (802.11e) prioritizes traffic for both upstream traffic from the stations to the access points (station EDCA parameters) and downstream traffic from the access points to the client stations (AP EDCA parameters) WMM Queues in Decreasing Order of Priority Voice: The highest priority queue with minimum delay, which makes it ideal for applications like VoIP and streaming media Video: The second highest priority queue with low delay is given to this queue. Video applications are routed to this queue Best effort: The medium priority queue with medium delay is given to this queue. Most standard IP application will use this queue Background: Low priority queue with high throughput. Applications, such as FTP, which are not time-sensitive but require high throughput can use this queue
WMM Quality of Service	WMM Power Save Option WMM power save helps conserve battery power in small devices such as phones, laptops, PDAs, and audio players using IEEE® 802.11e mechanisms Rate Limiting Rate limit per SSID set as a percentage of total available bandwidth
System Requirements	Internet Explorer® 5.0 or higher or Mozilla Firefox® 1.0 or higher
Ordering Information - Controller	North America: WC7520-100NAS Europe: WC7520-100EUS Asia: WC7520-100AUS Ordering Information - Licenses Incremental 10-AP License Upgrade: WC7510L-10000S
Humidity	Operation 90% Maximum Relative, Storage 95% Maximum Relative Electrical Specifications 100-240V, AC/50-60Hz, Universal Input, DC 5V/8A (internal power supply)
Storage and Operating Temperatures	Operating temperature 0°-45° C (32°-113° F) Storage temperature -20°-70° C (-4°-158° F)

Berat dan ukuran Netgear WC7520 ProSAFE Wireless Controller

Weight kb/lb	2.912/6.4
Dimensions (W x H x D) cm	Dimensions (W x H x D) cm 26.1 x 4.3 x 44 Dimensions (W x H x D) in 10.3 x 1.7 x 17.3

Isi Paket Netgear WC7520 ProSAFE Wireless Controller

Package Contents

ProSafe 20-AP Wireless Controller (WC7520), Ethernet cable, power cord, installation guide, resource CD

Ringkasan Produk Netgear WC7520 ProSAFE Wireless Controller

Prestasi
L2 mulus dan L3 jelajah cepat memberikan dukungan untuk aplikasi latency-sensitif seperti video, audio dan voice over nirkabel
Dinamis RF Manajemen: kontrol otomatis AP daya pancar dan saluran alokasi memastikan cakupan dengan meminimalkan gangguan
Penyembuhan diri Wireless: Automatic penyembuhan WLAN setelah kehilangan AP atau karena gangguan RF menyesuaikan kekuatan dan saluran dari AP lain di sekitar wilayah
Load balancing dan pembatasan memastikan alokasi bandwidth yang adil di antara semua klien untuk konektivitas nirkabel yang kuat
load balancing dinamis klien di seluruh AP yang tersedia berdasarkan jumlah klien per AP, atau berdasarkan ambang batas / data rate kekuatan sinyal dari klien per AP

Skalabilitas
scalable WC7520 Controller memungkinkan bisnis untuk tumbuh jaringan nirkabel mereka yang diperlukan dengan kembali yang dramatis atas investasi: WC7520 skala sampai 50 titik akses (AP) - dan hingga 150 titik akses (AP) dengan susun
Dukungan dari kontroler redundansi untuk memaksimalkan keandalan

Nilai bisnis
peta lantai pelanggan: peta Panas band nirkabel, saluran nirkabel dan kekuatan sinyal memungkinkan pelaporan real-time dari status jaringan nirkabel
Redundansi untuk selalu-on keandalan dan ketenangan pikiran: N + 1 redundansi dengan failover (satu dingin Pengendali berlebihan untuk 1, Controller 2 atau 3 produksi)
Dibangun untuk terakhir, yang WC7520 Controller didukung oleh Garansi Lifetime

Kemudahan penggunaan
Con angka MAC address fi lters, membuat perubahan SSID, dan mengubah password untuk semua titik-semua akses dari antarmuka WC7520 tunggal
Triangulasi: Administrator dapat dengan mudah menemukan AP diketahui, AP nakal, dan klien yang terkait pada peta panas
bundel nirkabel (untuk band tunggal dan ganda AP) untuk kemudahan pemesanan
