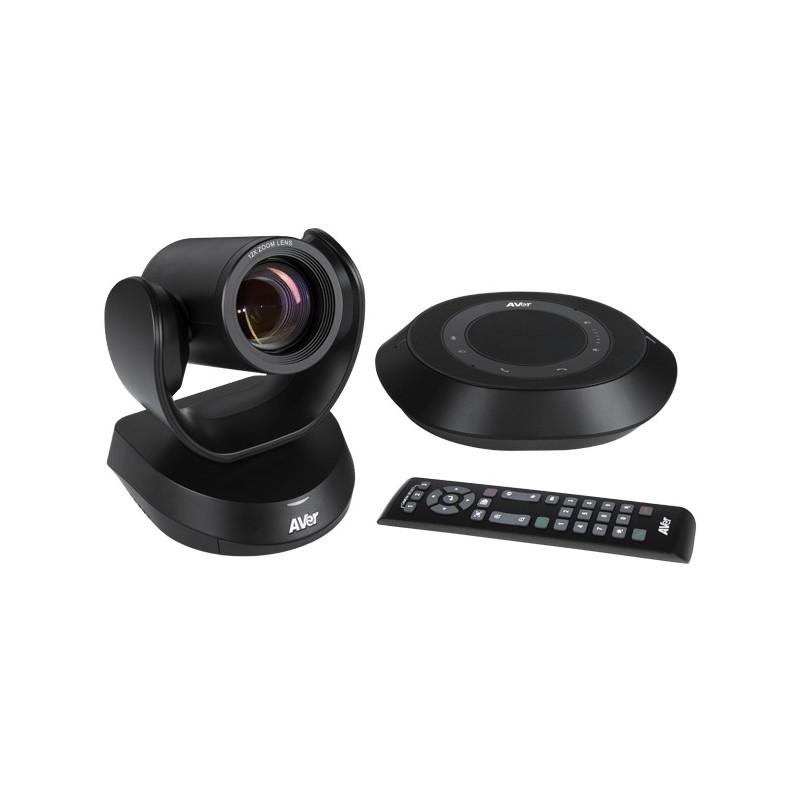

Aver VC520 PRO USB PTZ CAM Camera Video Conference

Kode Produk: 36602

Referensi SY0122

Kondisi: Produk baru

Get Perfect Audio with an Extended Speakerphone
The VC520 Pro2 offers balanced and steady audio performance. As the first conferencing system in the industry to deliver a daisy-chain function, the VC520 Pro2 supports either up to two expansion speakerphones or a full duplex microphone array. The inventive speakerphone makes the VC520 Pro2 a flexible option for fit mid-to-large conference rooms.

Lebih detail

Kirim ke teman

Kirim ke teman

Aver VC520 PRO USB PTZ CAM Camera Video Conference
Get Perfect Audio with an Extended Speakerphone
The VC520 Pro2 offers balanced and steady audio performance. As the first conferencing system in the industry to deliver a daisy-chain function, the VC520 Pro2 supports either up to two expansion speakerphones or a full duplex microphone array. The inventive speakerphone makes the VC520 Pro2 a flexible option for fit mid-to-large conference rooms.

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi :

Camera
- Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
- Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, - - 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
- SmartFrame for automatic FOV adjustment to fit all participants
- Innovative Preset Framing: Follow presenter based on preset areas
- True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
- Zoom: 24X total zoom (12X optical zoom)
- Field of view(D/H/V): 84.5°/76°/48°
- Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
- Lens F#: 1.8 (wide) ~ 2.8 (tele)
- Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
- Minimum focus distance: 1.5 m
- Standard tripod screw holes and Kensington slot
- People-counting API: enterprises and third-party software providers can obtain people-counting data for better - --- understanding of meeting-space usage

Video Format
YUV, YUY2, MJPEG, NV12
Network video compression format: H.264
Network protocols: RTSP, RTMP

Audio Format
AAC-LC
Network protocol: RTSP, RTMP

Motorized Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement

Speakerphone
Full duplex microphone array with echo cancellation
Advanced noise suppression
Dual-omnidirectional microphone array
3.5 mm phone-in jack
3.5 mm line out
Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
Touch controls for volume down/up, mute, phone input, call, and hang-up
Bridge phone-in and USB into one call
Security: Kensington slot

Connectivity
12V/5A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B connector
IP (RJ45)

Environmental Data
Operation temperature: 0°C ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20°C ~ 60°C
Storage humidity: 20% ~ 80%

Dimensions
Package dimensions: 259 x 259 x 349 mm
Package weight: 5.4 kg
Camera: 142.7 x 153 x 182 mm/1.45 kg
Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
Remote control: 200 x 50 x 21 mm/0.09 kg

USB
3.1 Gen 1 Type-B, backward compatible with USB 2.0
UVC (USB video class) 1.1
UAC (USB audio class) 1.0

Control
IR remote control
VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug-and-play
WebUI: Browser IP access via Chrome (does not support Internet Explorer)
PTZApp 2
