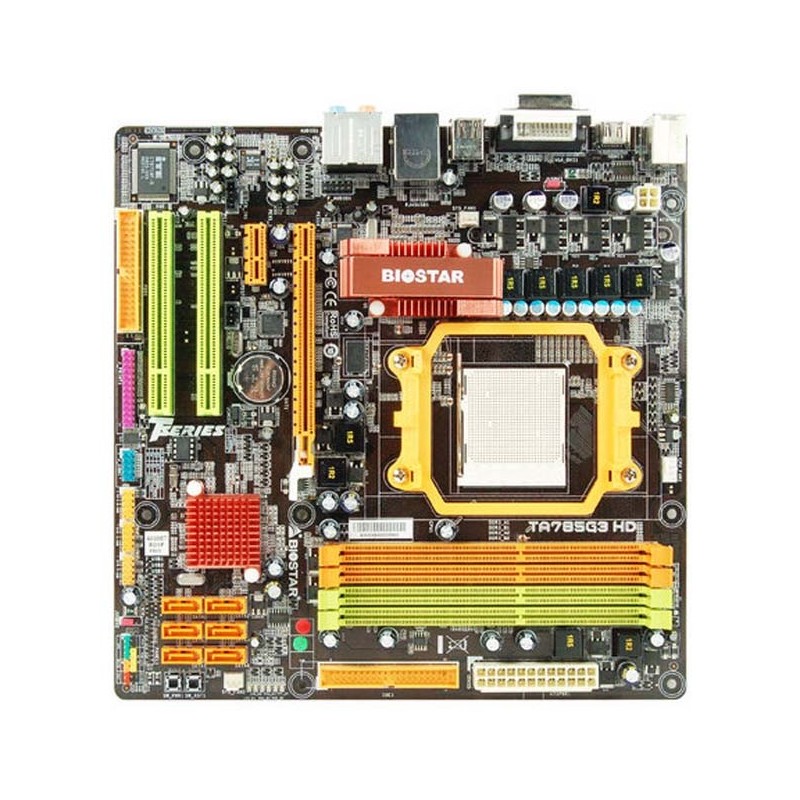

Biostar TA785G3 G3 HD AM3 AMD 785G DDR3

Spesifikasi produk Motherboard AMD Biostar TA785G3 G3 HD AM3 AMD 785G DDR3

Chipset

• AMD 785G / SB710

CPU SUPPORT

• AMD Phenom™ II X6 Processor
• AMD Phenom™ II X4 Processor
• AMD Phenom™ II X3 Processor
• AMD Phenom™ II X2 Processor
• AMD Athlon™ II X4 Processor
• AMD Athlon™ II X3 Processor
• AMD Athlon™ II X2 Processor
• AMD Sempron™ Processor
• Maximum CPU TDP (Thermal Design Power) : 140Watt

HT

• Support HT3.0 up to 5.2GT/s (Depends on AMD CPU Specification)

MEMORY

• Support Dual Channel DDR3 800/1066/1333/1600(OC) MHz
• 4 x DDR3 DIMM Memory Slot
• Max. Supports up to 16GB Memory

EXPANSION SLOT

• 1 x PCI-E x16 2.0 Slot
• 1 x PCI-E x1 2.0 Slot
• 2 x PCI Slot

STORAGE

• 6 x SATA2 Connector
• 1 x IDE Connector
• Support SATA RAID: 0,1,10

USB

• 4 x USB 2.0 Port
• 3 x USB 2.0 Header

LAN

• Realtek RTL8111DL - 10/100/1000 Controller

INTEGRATED VIDEO

• ATI Radeon™ HD4200 Graphics with 128MB Side-port memory(optional), Max. Memory Share Up to 512 MB
• Support ATI Hybrid Crossfire

CODEC

• Realtek ALC888 8+2 Channel HD Audio

REAR I/O

• 1 x PS/2 Mouse
• 1 x PS/2 Keyboard
• 4 x USB 2.0 Port
• 1 x HDMI Connector
• 1 x DVI Connector
• 1 x VGA Port
• 1 x RJ-45 Port
• 6 x Audio Connector

INTERNAL I/O

• 1 x Printer Header
• 3 x USB 2.0 Header
• 6 x SATA2 3Gb/s Connector
• 1 x IDE Connector
• 1 x Floppy Connector
• 1 x Front Audio Header
• 1 x Front Panel Header
• 1 x CD-IN Header
• 1 x S/PDIF-Out Header
• 1 x CPU Fan Header
• 1 x North Bridge FAN Header
• 2 x System Fan Header
• 1 x Serial Header

DIMENSION

• Micro ATX Form Factor Dimension: 24.4cm X 24.4cm ( W x L )

OS SUPPORT

• Support Windows XP / Vista / 7

ACCESSORIES

• 3 x SATA Cable
• 1 x SATA Power Cable
• 1 x I/O Shield
• 1 x CD Driver
• 1 x User Manual

FEATURES

• Supports BIO-unlocKING
• Windows 7 Compatible
• Supports AOD ACC
• Supports Phenom II x6
• Supports AM3
• Supports Solid capacitor
• Supports Clean-Tone
• Supports Rapid Switch
• Supports Rapid Debug
• Supports BIOS-Flasher
• Supports GPU
