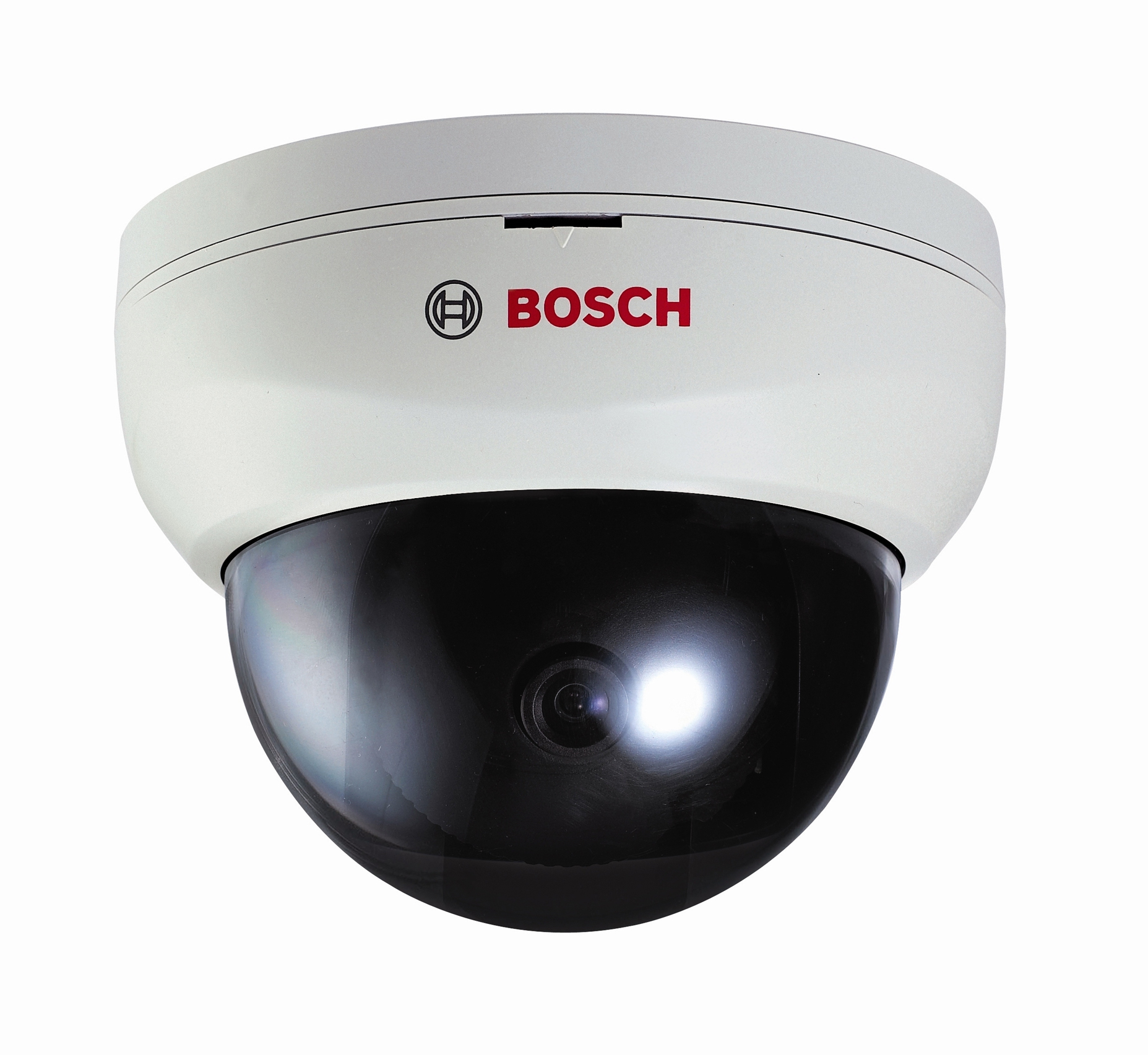

Bosch VDC-230F04-10 Indoor Dome Color Camera

Spesifikasi Produk Bosch VDC-230F04-10 Indoor Dome Color Camera

System

• PAL

Effective pixels (H x V)

• 752 x 582 (PAL)

Image Sensor

• 1/3-inch High sensitivity CCD

Video Output Composite:

• 1 Vpp, 75 Ohm

Sync. System

• Internal sync., Line-lock

S/N Ratio (sharpness, AGC off)

• 50 dB min.

Horizontal resolution

• 570 TVL sensor resolution

Minimum Illumination

• (F2.0, 30IRE, AGC

max.)

• 0.15 lx (color)

ESC 1/50 – 1/120,000

• Manual Shutter 1/50(60), 1/100(120), 1/250, 1/500, 1/700, 1/1k, 1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K,1/30K,1/60K, 1/120K

DNR

• Off, Low, Middle, High

White Balance

• ATW, Manual, Push

SBLC

• Off, Low, Middle, High

AGC

• On, Off

Day/Night

• Auto, Color, B/W, Ext.

Burst

• On, Off

Motion detection

• On, Off (4 programmable zones)

Privacy

• On, Off (4 programmable zones)

Mirror

• On (horizontal), Off

Sharpness

• 1 - 20

Gamma

• 0.35, 0.45, 0.6, 0.75

OSD language

• English, Chinese

Lens type

• Manual lens

Supply Voltage

• 12 VDC (±10%)

Power Consumption

• 3.6 W max. / 0.3 A

Operating Temperature

• -10 °C to +50 °C (14 ºF to +122 ºF)

Operating Humidity

• 30% to 80% RH

Storage Temperature

• -20 °C to +60 °C (-4 ºF to +140 ºF)

Storage Humidity

• 20% to 90% RH

Certifications and approvals
Region

• Certification

Europe

• CE

Standards

• EN 55022:2006/A1:2010
• EN 60950-1:2006/
• A11:2009+A1:2010+A12:2011+AC:2011

Ringkasan produk Bosch VDC-230F04-10 Indoor Dome Color Camera

Kamera VDC-230 adalah Kamera kompak, untuk pengawasan bergaya DOM/Kubah yang menawarkan resolusi yang sangat baik dalam kondisi pencahayaan variabel. Kinerja kamera CCD 1/3-inch tersedia dengan 3,8 mm lensa tetap .Kamera ini mudah untuk diinstall dan dapat disesuaikan sekitar 3 sumbu. Zona privasi dan fungsi deteksi gerak dapat diatur dalam sistem menu kamera berguna.
