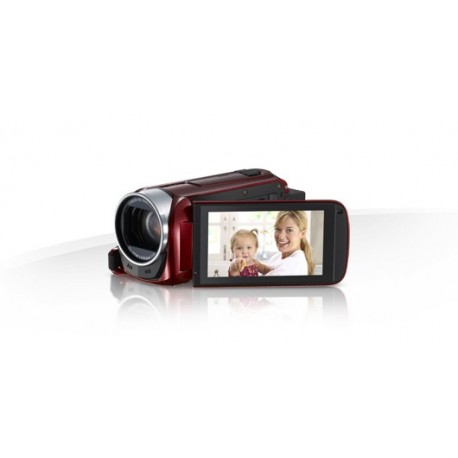

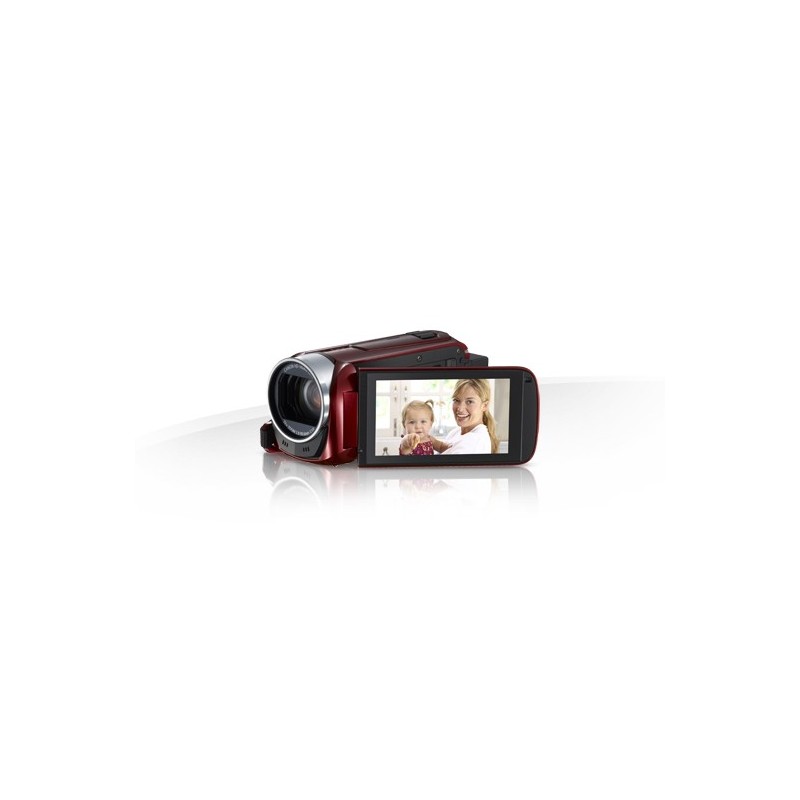

Canon LEGRIA HF R46 RED HD FLASH - ENTRY - 8153B021AA

VIDEO SYSTEM

• Recording Formats   AVCHD/MP4
• Simultaneous recording possible
• Recording Medium   8GB built-in flash memory
• SDXC/SDHC/SD memory card
• Relay recording possible
• Max Recording Time*   Variable total, depending on memory card size1
• Internal memory: AVCHD mode, 3hrs²
• MP4 mode: 4hrs 20mins3
• 64GB SDXC card (not supplied): AVCHD mode, 24hrs 30mins²
• MP4 Mode, 34hrs 45mins3

SENSOR

• Type   1/4.85" CMOS
• Total pixels   3.28 megapixel
• Effective Pixels: Movie   2.07 megapixels1²
• Effective Pixels: Still   2.07 megapixels (16:9)
• Filter   Bayer pattern filter

LENS

• Advanced Zoom   53x
• Optical Zoom   32x
• Digital Zoom   1060x
• Focal length   2.8mm - 89.6mm
• 35mm Equivalent Focal Length   38.5mm - 1232mm
• Maximum aperture   f1.8 to 4.5
• Minimum focusing distance   10mm
• Image Stabilizer   Optical Image Stabiliser:
• Intelligent IS with Advanced Dynamic Mode
• Filter diameter   None
• Wide Attachment   NO

IMAGE PROCESSOR

• Image Processor   DIGIC DV 4
• Face Detection Technology   YES

LCD

• Screen size   7.5cm (3.0") Touchscreen LCD, 100% view
• Pixels   230,000 dots
• Touchscreen LCD   YES - capacitive type touch panel
• Manual adjustment   Brightness, backlight

WI-FI FUNCTION

• Wi-Fi Function   YES

BABY MODE

• Baby Mode   YES

EXTERNAL HDD STORAGE

• Direct storage to external HDD   YES

VIEWFINDER

• Screen size   NO
• Pixels   NO

MINIMUM ILLUMINATION

• Minimum Lux.   4 lux
• Night Mode   Low Light (0.4 lux)
• Auto Gain Control limit adjustment   NO

FOCUS

• Auto/Manual   YES / YES
• Control   AUTO: Face Detection AF / TV AF
• MANUAL: Touchscreen LCD, Touch Focus
• Manual Focus Assist   YES (Magnification)

CREATIVE FEATURES

• Creative Features   Cinema-Look Filters
• Touch Decoration

AE MODE

• Smart AUTO   YES (38 scenes)
• Program AE   AUTO;
• M mode: P,SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks);
• Cinema mode: P
• Baby Mode
• Zebra   NO

BACKLIGHT COMPENSATION

• Backlight Compensation   YES (automatic or user control)

WHITE BALANCE

• Type   TTL
• Auto   YES
• Set/Preset   YES: Daylight,Tungsten

SHUTTER SPEED

• Maximum   1/2000th sec.
• Slow   1/2 sec.

DIGITAL EFFECT

• Fade   Auto Fade, Wipe
• Effect   NO

IMAGE QUALITY ADJUSTMENT

• Image Effects   NO
• Custom Functions   NO

CUSTOM CONTROL

• Custom Control   YES (Touch panel operations)

STILL IMAGE

• Capture image size   1920 x 1080 (not Cinema mode)
• Continuous shooting mode   NO
• Auto Exposure Bracketing   NO
• Simultaneous Photo Recording   YES
• Selecting AF Frame Function   NO
• Histogram   NO
• Photo Button   Touchscreen LCD
• Photo Burst   NO

SELF TIMER

• Self timer   10 sec
• REC. REVIEW/REC. SEARCH
• REC. review/REC. search   NO/NO

RECORDING MODE

• LP mode   Four AVCHD recording quality modes.1
• 50P: 1920 x 1080, 28Mbps;²
• MXP 50i: 1920x1080, 24Mbps;
• FXP 50i: 1920x1080, 17Mbps;²
• LP 50i: 1440x1080, 5Mbps
• Four MP4 quality recording modes
• 50p: 1920 x 1080, 35Mbps;
• 25p: 1920 x 1080, 24Mbps,
• 25p: 1920 x 1080, 17Mbps,
• 25p: 1280 x 720, 4Mbps
• Progressive shooting mode   YES (25p)
• x.v.Color   NO
• Video Snapshot   YES
• Pre REC   YES
• Dual Shot   NO
• Colour Bars and Test Tone   NO

SEARCH

• Still image   NO
• Date   YES

MEMORY CARD

• Multi Media Card   NO
• Secure Digital Card   SD / SDHC / SDXC
• Movie Recording   YES
• Internal Data Transfer   MOVIE: Yes (internal memory to card)
• STILLS: Yes (internal memory to card)

AUDIO

• System   Dolby Digital 2ch (AC-3 2ch)
• Audio Scene Select   YES
• Zoom Microphone   NO
• Manual Rec. level control   YES

TERMINAL

• Headphone   YES
• Microphone   NO
• USB   YES (Mini-AB, USB 2.0 Hi-Speed, output only)
• DV   NO
• Direct Print   NO
• Analogue-in   NO
• AV   YES (output only)
• S-video   NO
• Component   NO
• HDMI   YES (HDMITM Mini Connector: output only)
• LANC   NO
• Built-in charger   YES

QUICK START

• Quick Start   YES (using LCD screen)

ACCESSORY SHOE

• Accessory shoe   NO

BUILT-IN VIDEO LIGHT

• Built-in Video light   NO

BUILT-IN FLASH

• Built-in Flash   NO

PC CONNECTION KIT

• DV Network Solution Disk   NO
• Application software   YES
• USB cable   YES

WEB

• Easy Web Upload   YES
• Convert to MP4   YES
• HD -> SD conversion   NO

WIRELESS CONTROLLER

• Wireless controller   NO

BATTERY PACK

• Longer recording time**   3hrsType   Lithium Ion
• Intelligent Battery System   YES
• Battery included in the kit   BP-718
• Max recording time (included battery)   1h 45mins
• Long life Battery   BP-727

DIMENSIONS

• W x H x D   54 x 57 x 116mm
• Weight   235g
