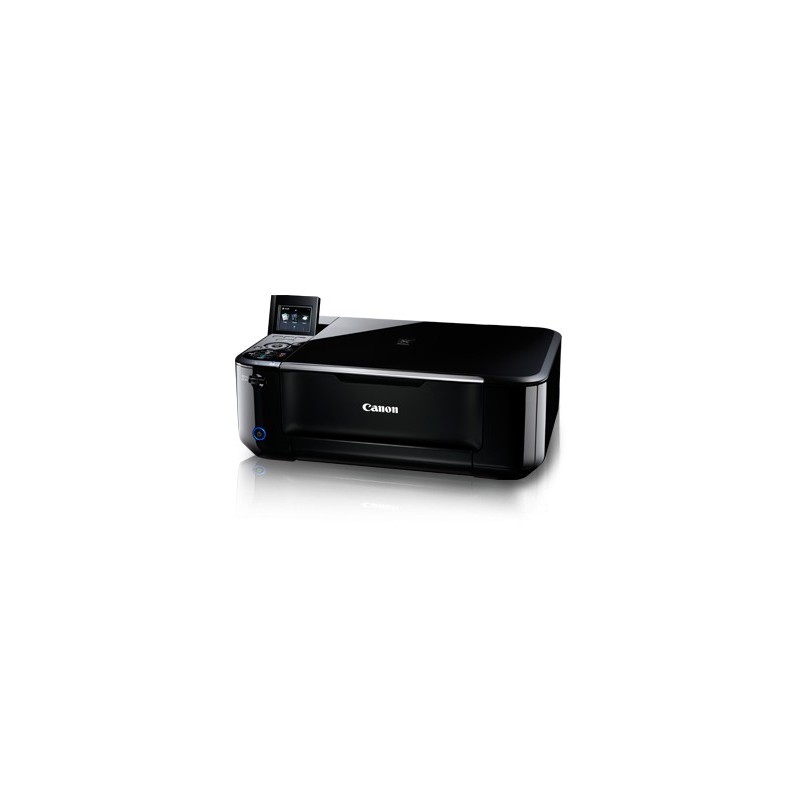

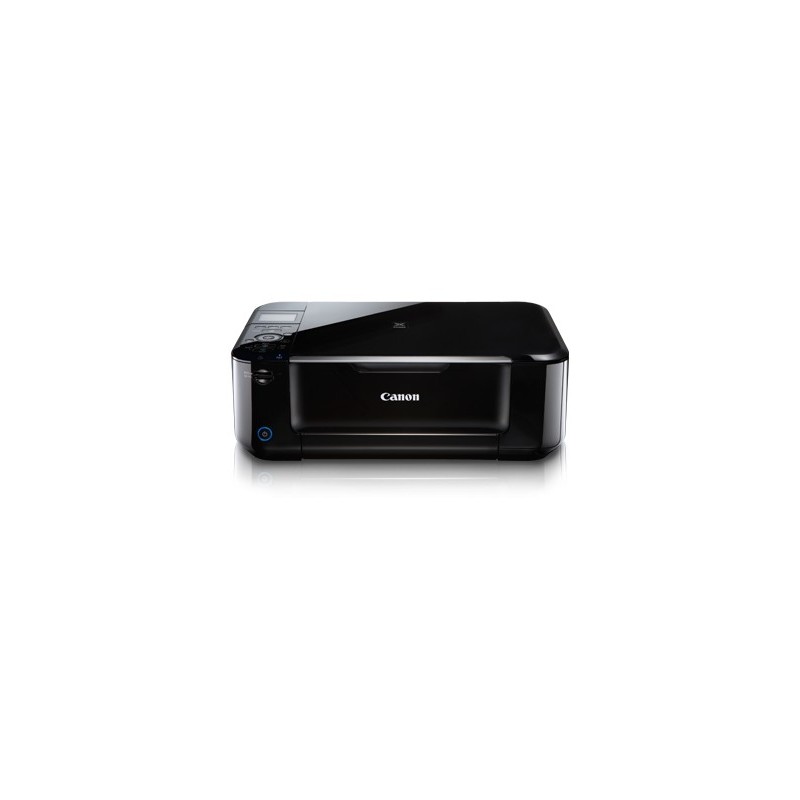

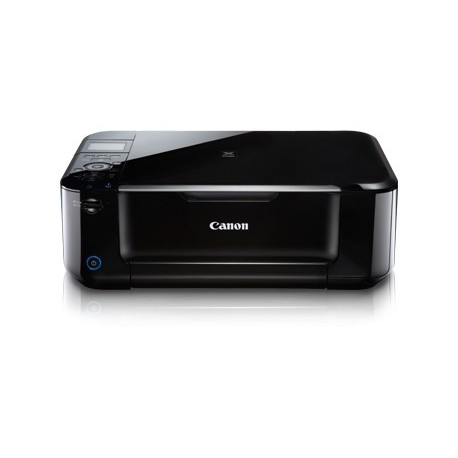

PRINTER CANON PIXMA MG4170

Kode Produk: 2267

Referensi Canon Discontinued

Kondisi: Produk baru

Part No: KG2267

Warna inkjet printer, mesin fotokopi dan scanner
Standar ISO kecepatan cetak (A4): sampai 9.9ipm mono / color 5.7ipm
Mencetak 4 x 6 "borderless foto di 44secs.

Lebih detail

Kirim ke teman
Kirim ke teman
PRINTER CANON PIXMA MG4170

Part No: KG2267

Warna inkjet printer, mesin fotokopi dan scanner

Standar ISO kecepatan cetak (A4): sampai 9.9ipm mono / color 5.7ipm

Mencetak 4 x 6 "borderless foto di 44secs.
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

SPECIFICATION PRINTER CANON PIXMA MG4170

Para MG4170 PIXMA membuat kinerja canggih mudah. Mencetak foto secara nirkabel dari perangkat yang kompatibel ponsel atau mencetak dari kartu memori. Sekarang Anda juga dapat mengubah foto biasa dan stills film HD ke dalam karya seni. Dengan FastFront, menggantikan cartridge dan memasukkan kertas lebih mudah.

Warna inkjet printer, mesin fotokopi dan scanner

Standar ISO kecepatan cetak (A4): sampai 9.9ipm mono / color 5.7ipm

Mencetak 4 x 6 "borderless foto di 44secs.

Print
Maximum Printing Resolution	*4800 (horizontal)¹ x 1200 (vertical)dpi**
Print Head / Ink	Type:	FINE ™ Cartridge
	Total Number of Nozzles:	1792
	Ink Droplet Size (min.):	2pl
	Ink Cartridge:	PG-740, CL-741 (PG-740XL, CL-741XL Optional)
Print Speed Based on ISO / IEC 24734.	*Document: Colour²: ESAT / Simplex:**	Approx. 5.7ipm
	*Document: B/W²: ESAT / Simplex:**	Approx. 9.9ipm
	*Photo (4 x 6")²: PP-201 / Borderless:**	Approx. 44secs.
Printable Width	Up to 203.2mm (8 inches)
Printable Width	Borderless:	Up to 216mm (8.5 inches)
Printable Area	*Borderless Printing³:**	Top / Bottom / Right / Left margin: each 0mm (Supported Paper Size: A4 / LTR / 4 x 6" / 5 x 7" / 8 x 10")
	Bordered Printing:	Top margin: 3mm, Bottom margin: 5mm, Left/Right margin: each 3.4mm (LTR, LGL: Left: 6.4mm, Right: 6.3mm)
	Bordered Auto Duplex Printing:	Top margin: 5mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (LTR, LGL: Left: 6.4mm, Right: 6.3mm)
Recommended Printing Area	Top margin:	32.5mm
Recommended Printing Area	Bottom margin:	33.5mm
Paper Size	A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10)
Paper Handling (Front Tray) (Maximum Number)	Plain paper	A4, A5, B5, LTR = 100, LGL = 10
	High Resolution Paper (HR-101N)	A4 = 80
	Photo Paper Pro Platinum (PT-101)	4 x 6" = 20, A4 / 8 x 10" = 10
	Photo Paper Plus Glossy II (PP-201)	4 x 6" = 20, A4 = 10
	Photo Paper Plus Semi-Gloss (SG-201)	4 x 6" = 20, A4 / 8 x 10" = 10
	Glossy Photo Paper "Everyday Use" (GP-501)	4 x 6" = 20, A4 = 10
	Matte Photo Paper (MP-101)	4 x 6" = 20, A4 = 10
	Photo Stickers (PS-101)	1
	T-Shirt Transfer (TR-301)	1
	Envelope	European DL, US Com. #10 = 5
Support Media for Auto Duplex Printing	Type:	Plain Paper (Bordered)
Support Media for Auto Duplex Printing	Size:	A4, LTR
Paper Weight	Front Tray:	Plain Paper: 64 - 105g/m², Canon specialty paper: Max paper weight: Approx.300g/m² (Photo Paper Pro Platinum PT-101)
Ink End Sensor	Dot count
Print Head Alignment	Manual
Scan
Scanner Type	Flatbed
Scanning Method	CIS (Contact Image Sensor)
*Optical Resolution⁴**	1200 x 2400dpi
Selectable Resolution	25 - 19200dpi
Scanning Bit Depth (Input / Output)	Grayscale:	16 / 8 bits
Scanning Bit Depth (Input / Output)	Colour:	48 / 24 bits (RGB each 16 / 8 bits)
*Line Scanning Speed⁵**	Grayscale:	1.147ms/lines (300dpi)
*Line Scanning Speed⁵**	Colour:	3.441ms/lines (300dpi)
*Scanning Speed⁶**	Reflectives: A4 Colour / 300dpi:	Approx. 14secs.
Maximum Document Size	Flatbed:	A4, LTR (216 x 297mm)
Copy
Maximum Document Size	A4, LTR (216 x 297mm)
Paper Media	Size:	A4, A5, B5, LTR, 4 x 6", 5 x 7"
Paper Media	Type:	Plain Paper Photo Paper Pro Platinum (PT-101) Photo Paper Plus Glossy II (PP-201) Photo Paper Plus Semi-Gloss (SG-201) Glossy Photo Paper "Everyday Use" (GP-501) Matte Photo Paper (MP-101)
Density Adjustment	9 positions, Auto intensity (AE copy)
*Copy Speed⁷ Based on ISO / IEC 29183.**	Document: Colour: sFCOT / Simplex:	Approx. 20secs.
*Copy Speed⁷ Based on ISO / IEC 29183.**	Document: Colour: sESAT / Simplex:	Approx. 4.3ipm
Multiple Copy	Black / Colour:	Max. 99 pages
Network
Protocol	TCP/IP
Wireless LAN	Network Type:	IEEE802.11n / IEEE802.11g / IEEE802.11b (Infrastructure mode)
	Frequency Band:	2.4GHz
	Data Rate:	IEEE802.11n: Max. 150Mbps IEEE802.11g: Max. 54Mbps IEEE802.11b: Max. 11Mbps
	Range:	Indoor 50m (depends on the transmission speed and conditions)
	Security:	WEP 64 / 128 bits, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
System Requirements	Windows:	Windows XP SP2, XP SP3 / Windows Vista SP1, Vista SP2 / Windows 7, 7 SP1
System Requirements	Macintosh:	Mac OS X v10.4.11 - 10.7
General
Quick Start	Approx. 5secs.
Operation Panel	Display:	LCD (2.4 inches / 6cm TFT color)
Interface	Wireless LAN b/g/n, USB 2.0 Hi-Speed, Memory Card Slots
Operating Environment	Temperature:	5 - 35°C
Operating Environment	Humidity:	10 - 90% RH (no dew condensation)
Storage Environment	Temperature:	0 - 40°C
Storage Environment	Humidity:	5 - 95% RH (no dew condensation)
*Acoustic Noise (PC Print)⁸**	Approx. 42.5dB.
Power	AC100 - 240V, 50 / 60Hz
Power Consumption	Standby	Approx. 3.0W
Power Consumption	*Copying⁹:**	Approx. 21W
Environment	Regulation:	RoHS (EU, China), WEEE (EU)
Environment	Eco-Label:	Energy Star
Dimension (W x D x H)	Approx. 449 x 304 x 152mm
Weight	Approx. 5.7kg

Specifications are subject to change without notice.

*¹	Ink droplets can be placed with a pitch of 1/4800 inch at minimum.
*²	Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO / IEC 24734. Photo print speed is based on the default setting using ISO / JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
*³	Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers.
*⁴	Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
*⁵	The fastest speed via Hi-Speed USB on Windows PC. Transfer time to computer is not included.
*⁶	Color document scan speed is measured with ISO / IEC 24735 Annex C Test Chart A. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc.
*⁷	Copy speeds are the average of sFCOT and sESAT, ISO / IEC 29183. Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc., and does not take into account warm-up time.
*⁸	When printing ISO / JIS-SCID N2 pattern on 4 x 6" Photo Paper Plus Glossy II using default settings.
*⁹	Copy: When copying ISO / JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings.

Disclaimer

•	You need to install ink tanks or ink cartridges of all colors whether you perform black and white printing or color printing. If any one of the ink tanks or ink cartridges is not installed, an error occurs and you cannot perform printing.
•	Depending on the paper or the print settings, color ink may be consumed even when you print a document in black or perform printing in black and white. When any one of the colors of ink has run out, you need to replace the ink tank or ink cartridge.
•	To keep printer's performance, Canon printer performs cleaning automatically according to its condition. When the printer performs cleaning, a small amount of ink is consumed. In addition, when you use the printer for the first time, it consumes a small amount of ink so that it is ready. In these cases, all colors of ink may be consumed. [Cleaning function] Canon printer draws out ink from the nozzles to prevent them from being clogged, and keeps its performance.
•	The repairing parts for printers will be available five years after production is discontinued. Depending on your model, we may ask you to replace it with a new one, or one with almost the same performance as a maintenance service. In this case, it may be that you cannot use supplies or accessories for your model or the compatible OS will be changed.
•	The warranty term for free repair is one year from the date of purchase. Free repair does not apply to supplies (paper or ink tanks / cartridges) even within the warranty term.
•	To obtain good printing quality, use up ink within six months after opening.
•	Regarding a solution to a problem caused by using non-genuine ink cartridges (including ones supplemented with non-genuine ink by making a hole in the cartridge or so), a fee will be charged even within the warranty term. Keep this in your mind when you use non-genuine ink.
•	If you use non-genuine ink cartridges (including ones supplemented with non-genuine ink by making a hole in the cartridge or so), they may have a negative effect on the performance of the printer or the printing quality may be reduced. In addition, though it is a rare case and does not present a safety hazard, it is reported that a print head will become heated or smoke will be emitted from it due to an ingredient not contained in genuine Canon ink. (Note that this does not apply to all non-genuine ink.)
•	CREATIVE PARK PREMIUM is a premium content service available exclusively to users only when all of the colors of genuine Canon inks are installed.
•	A printer with a fax function stores the following fax data in printer's memory: - Faxes not printed out due to conditions such as ink running out. - Faxes in the send queue. If you disconnect the power cord, the date and time settings are reset and faxes stored in the printer's memory will be deleted. Before you disconnect the power cord, confirm that faxes you need to keep have already been printed or sent.
•	If you will be installing the Canon printer driver on Mac OS X and using the printer through a network connection, you can select [Bonjour] or [canonijnetwork] in the [Add Printer] dialog. If [Bonjour] is selected, remaining ink level messages may differ from those indicated by [canonijnetwork]. [canonijnetwork] is not displayed if the Canon printer driver is not installed. Access our web site through the Internet and download the latest printer driver for your model. Canon recommends you to use [canonijnetwork] for printing.
