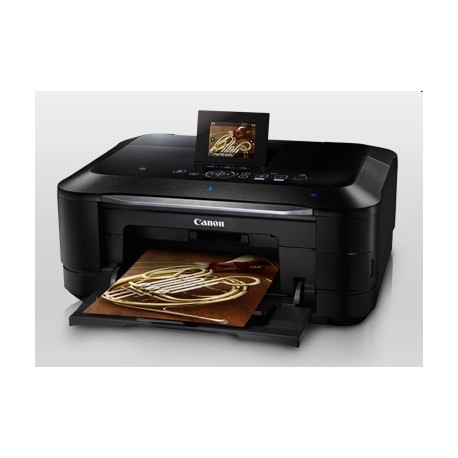

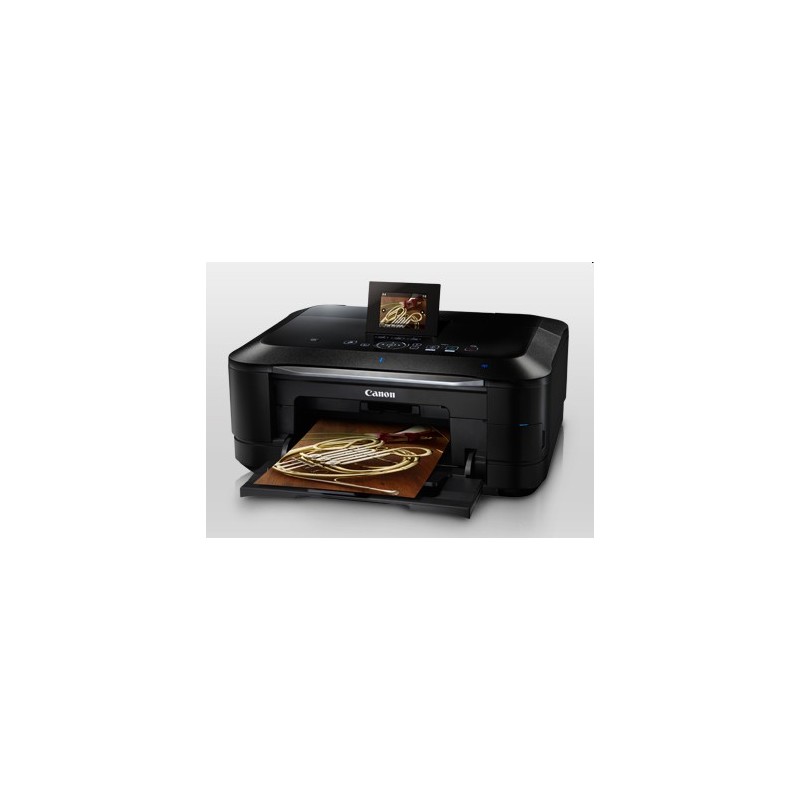

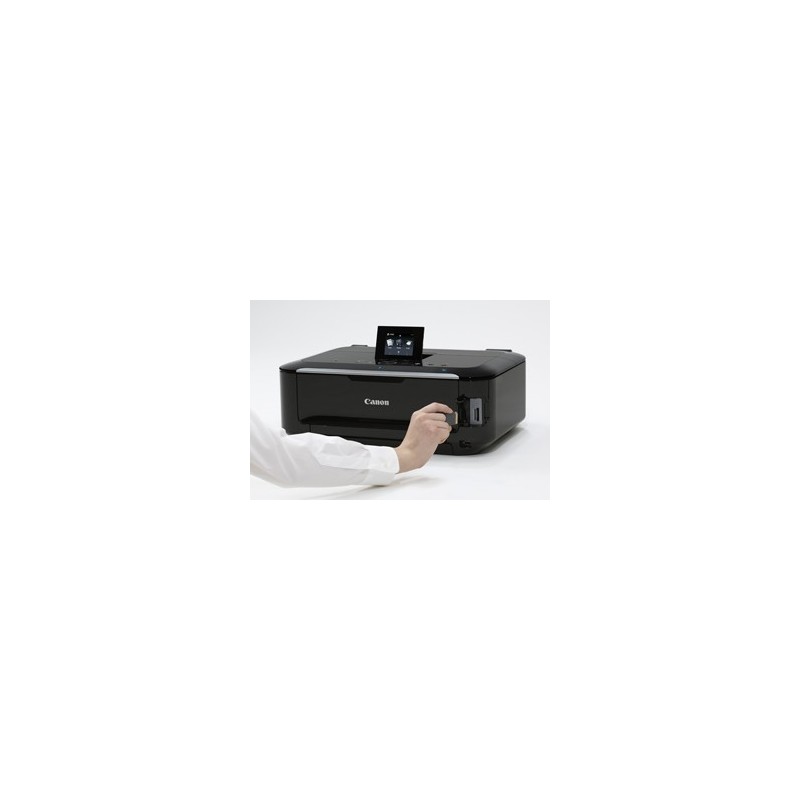

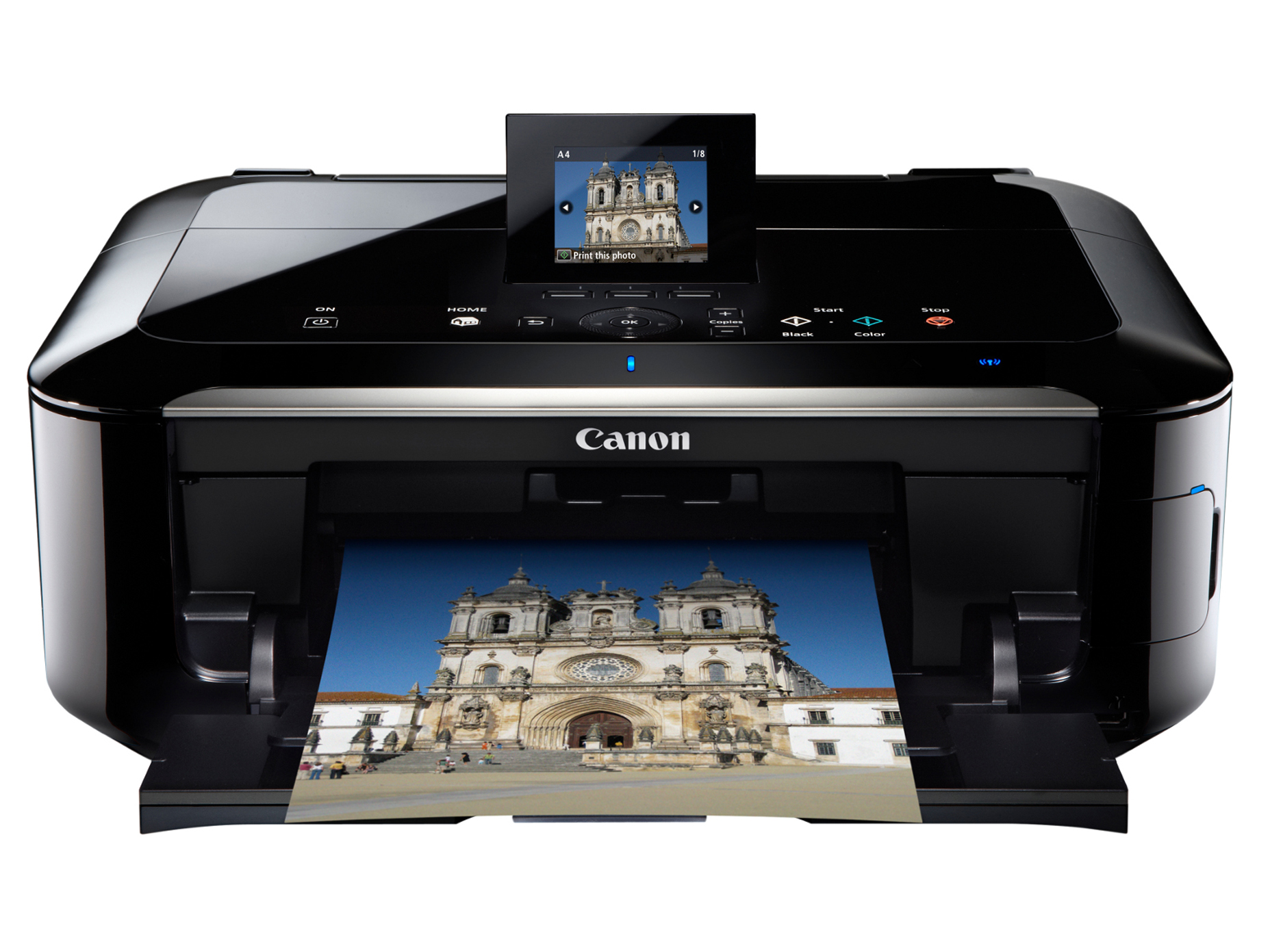

Canon Pixma MG5370 Printer

Spesifikasi produk Printer Canon MG 5370

Print

Maximum Printing Resolution

• 9600 (horizontal)*1 x 2400 (vertical)dpi

Print Head / Ink

• Type: Individual Ink Cartridge
• Total Number of Nozzles: 4,608 nozzles
• Min. Ink Droplet Size: 1pl
• Ink Tank: PGI-725 Pigment Black, CLI-726 Cyan / Magenta / Yellow / Black

Print Speed

• Based on ISO / IEC 24734.
• Document: Colour*2: ESAT: Approx. 9.3ipm
• Document: B/W*2: ESAT:Approx. 12.5ipm

Photo (4 x 6")*2:

• PP-201 / Borderless: Approx. 20secs.

Printable Width

• Up to 203.2mm (8 inches)

Borderless:

• Up to 216mm (8.5 inches)

Printable Area

• Borderless Printing:Top / Bottom / Right / Left margin: each 0mm
• (Supported Paper Size: A4 / LTR / 4 x 6" / 5 x 7" / 8 x 10")
• Bordered Printing: Top margin: 3mm,
• Bottom margin: 5mm,
• Left / Right margin: each 3.4mm
• (LTR / LGL: Left: 6.4mm, Right: 6.3mm)
• Bordered Auto Duplex Printing: Top margin: 5mm,
• Bottom margin: 5mm,
• Left / Right margin: 3.4mm
• (LTR / LGL: Left: 6.4mm, Right: 6.3mm)

Recommended Printing Area

• Top margin: 40.7mm
• Bottom margin: 37.4mm

Paper Size

• A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10)

Paper Handling (Rear Tray)(Maximum Number)
Plain paper

• A4, A5, B5, LGL = 150

High Resolution Paper (HR-101N)

• A4 = 80

Photo Paper Pro Platinum (PT-101)

• 4 x 6" = 20, A4 / 8 x 10" = 10

Photo Paper Plus Glossy II (PP-201)

• 4 x 6" = 20, A4 =10

Photo Paper Plus Semi-Gloss (SG-201)

• 4 x 6" = 20, A4 / 8 x 10" = 10

Glossy Photo Paper "Everyday Use" (GP-501)

• 4 x 6" = 20, A4 = 10

Matte Photo Paper (MP-101)

• 4 x 6" = 20, A4 = 10

Photo Stickers (PS-101)

• 1

T-Shirt Transfer (TR-301)

• 1

Envelope:

• European DL / US Com.
• #10 = 10

Other Fine Art Paper:

• A4 = 1

Paper Handling (Cassette)(Maximum Number)

• Plain Paper: A4, A5, B5, LTR = 150

Disc Handling (CD-R Tray)

• Printable Disc:1 (Manual handling by the CD-R tray)

Support Media for Auto Duplex Printing

• Type: Plain Paper (Bordered)
• Size: A4, A5, B5, LTR

Paper Weight

• Rear Tray: Plain Paper: 64 - 105g/m2 , Canon specialty paper: max paper weight: Approx. 300g/m2
• (Photo Paper Pro Platinum PT-101)
• Cassette: Plain Paper: 64 - 105g/m2

Ink End Sensor

• Optical sensor + Dot count

Print Head Alignment

• Auto / Manual

Scan
Scanner Type

• Flatbed

Scanning Method

• CIS (Contact Image Sensor)

Optical Resolution

• 2400 x 4800dpi

Selectable Resolution

• 25 - 19200dpi

Scanning Bit Depth (Input / Output)

• Grayscale: 16 / 8 bit
• Colour:48 / 24 bit (RGB each 16 / 8 bit)

Line Scanning Speed

• Grayscale: 1.2ms/line (300dpi)
• Colour:3.4ms/line (300dpi)

Scanning Speed

• Reflective: A4 Colour / 300dpi:Approx. 14secs.

Maximum Document Size

• Flatbed: A4 / LTR (216 x 297mm)

Copy
Maximum Document Size

• A4 / LTR (216 x 297mm)

Paper Media

• Size: A4, A5, B5, LTR, 4 x 6", 5 x 7"
• Type: Plain Paper

Photo Paper Pro Platinum

• (PT-101)

Photo Paper Plus Glossy II

• (PP-201)

Photo Paper Plus semi-gloss

• (SG-201)

Glossy Photo Paper "Everyday Use"

• (GP-501)

Matte Photo Paper

• (MP-101)
• Printable Disc

Image Quality

• 3 positions (Fast, Standard, High)

Density Adjustment

• 9 positions, Auto intensity (AE copy)

Copy Speed

• Based on ISO / IEC 29183.
• Document: Colour: sFCOT / Simplex: Approx. 14secs.
• Document: Colour: sESAT / Simplex: Approx.7.1ipm
• Multiple CopyBlack / Colour:Max. 99 pages

Network
Protocol

• TCP / IP

Wireless LAN

• Network Type: IEEE802.11n / IEEE802.11g / IEEE802.11b (infrastructure mode)
• Frequency Band:2.4GHz

Data Rate:

• IEEE802.11n: Max. 150Mbps
• IEEE802.11g: Max. 54Mbps
• IEEE802.11b: Max. 11Mbps

Range:

• Indoor 50m (depends on the transmission speed and conditions)

Security:

• WEP (64 / 128 bits)
• WPA-PSK (TKIP / AES)
• WPA2-PSK (TKIP / AES)

System Requirements
Windows

• Windows XP SP2, XP SP3 / Vista SP1, Vista SP2 / Windows 7, 7 SP1

Macintosh

• Mac OS X 10.4.11 - 10.6

General
Quick Start

• Approx. 6secs.

Operation Panel

• Display: LCD (3.0-inch / 7.5cm TFT color)

Interface

• Wireless LAN b/g/n, USB 2.0 Hi-Speed, Pictbridge, Memory Card Slots, Bluetooth v2.0 (Optional)

Self-Opening Paper Output Tray

• Available

Operating Environment

• Temperature: 5 - 35°C
• Humidity: 10 - 90% RH
• (no dew condensation)

Storage Environment

• Temperature: 0 - 40°C
• Humidity: 5 - 95% RH
• (no dew condensation)

Acoustic Noise (PC Print)

• Print: Approx. 47.0dB

Power

• AC100 - 240V, 50 / 60Hz

Power Consumption

• Standby: Approx. 0.9W
• Copying: Approx. 22W

Environment

• Regulation: RoHS (EU, China), WEEE (EU)
• Eco-Label: Energy Star

Dimension (W x D x H)

• Approx. 450 x 366 x 166mm

Weight

• Approx. 8.3kg

Ringkasan produk Printer Canon MG 5370

Efek Filter Fun
5 efek menyenangkan untuk menciptakan efek artistik untuk gambar biasa.

• Fish-Eye
• Miniatur
• Mainan
• Soft Focus
• Blur Background
• PIXMA Cloud Tautan

Mencetak foto dari album online Anda atau mendapatkan template alat yang berguna langsung dari printer Anda.

• Web template dari Canon Server
• Album Foto online
• LAN nirkabel

Dapatkan hasil maksimal dari printer PIXMA dengan menciptakan jaringan Wi-Fi nyaman bagi beberapa pengguna. Hal ini sesuai dengan metode otentikasi nirkabel populer seperti Wi-Fi protected setup (WPS) dan Windows Connect Now (WCN), sehingga pengaturan itu untuk Wi-Fi pencetakan intuitif dan bebas rewel.
