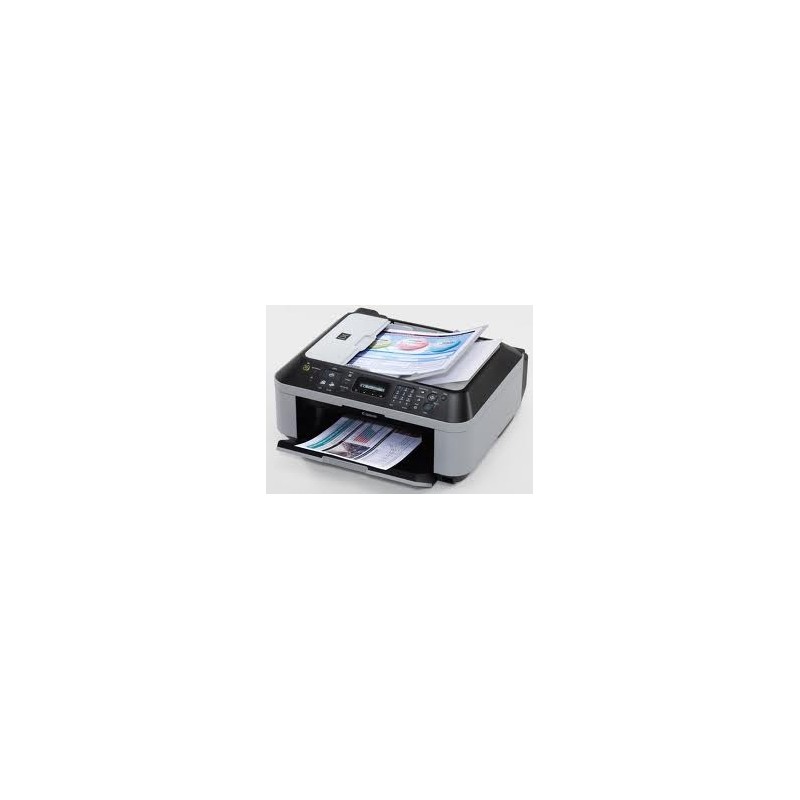

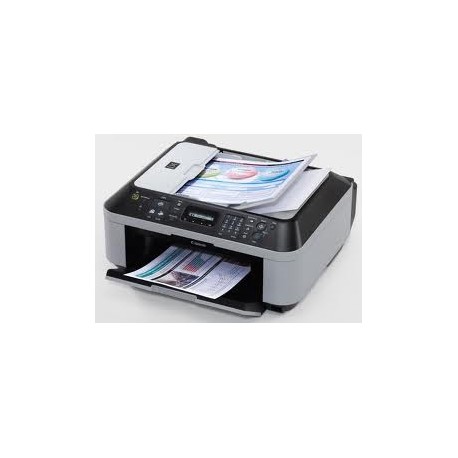

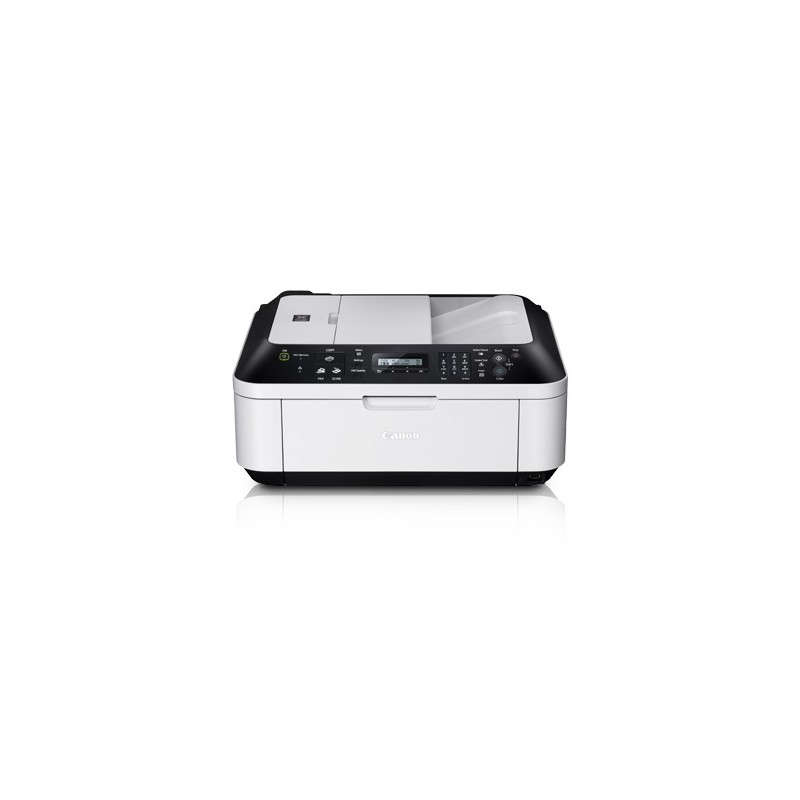

PRINTER CANON PIXMA MX366

Kode Produk: 2271

Referensi Canon Discontinued

Kondisi: Produk baru

Part No: KG2271

Kecepatan cetak: sampai 8.4ipm mono / color 4.8ipm
Mencetak 4 x 6 "borderless foto di 43secs.
Print, scan, copy, fax

Lebih detail

Kirim ke teman
Kirim ke teman
PRINTER CANON PIXMA MX366

Part No: KG2271

Kecepatan cetak: sampai 8.4ipm mono / color 4.8ipm

Mencetak 4 x 6 "borderless foto di 43secs.

Print, scan, copy, fax
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

SPECIFICATION PRINTER CANON PIXMA MX366

Meningkatkan kualitas, efisiensi dan produktivitas bisnis Anda dengan perangkat serbaguna. Ini adalah solusi ideal untuk setiap rumah kantor. Tidak peduli apa yang Anda lakukan, Anda pasti akan mendapatkan lebih banyak dilakukan.

Kecepatan cetak: sampai 8.4ipm mono / color 4.8ipm
Mencetak 4 x 6 "borderless foto di 43secs.
Print, scan, copy, fax

Print
Maximum Printing Resolution	*4800 (horizontal)¹ x 1200 (vertical) dpi**
Print Head / Ink	Type / Ink System:	FINE Cartridge
	Total Number of Nozzles:	1,472 nozzles
	Min. Ink Droplet Size:	2pl
	Ink Tank:	PG-810, CL-811 (PG-810XL, CL-811XL Optional)
Print Speed Based on ISO / IEC 24734.	*Document: Colour²: ESAT / Simplex:**	Approx. 4.8ipm
	*Document: B/W²: ESAT / Simplex:**	Approx. 8.4ipm
	*Photo (4 x 6")²: PP-201 / Standard / Borderless:**	Approx. 43secs.
Printable Width	Up to 203.2mm (8-inch)
Printable Width	Borderless:	Up to 216mm (8.5-inch)
Recommended Printing Area	Top margin:	31.2mm
Recommended Printing Area	Bottom margin:	32.5mm
*Paper Size³**	A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10)
Scan
Scanner Type	Flatbed & ADF
Scanning Method	CIS
*Optical Resolution⁴**	1200 x 2400dpi
Selectable Resolution	25 - 19200dpi
Scanning Bit Depth (Input / Output)	Grayscale:	16 / 8 bits
Scanning Bit Depth (Input / Output)	Colour:	48 / 24 bits (RGB each 16 / 8 bits)
*Line Scanning Speed⁵**	Grayscale:	1.6ms/line (300dpi)
*Line Scanning Speed⁵**	Colour:	4.8ms/line (300dpi)
*Scanning Speed⁶**	Reflective: A4 Colour / 300dpi:	Approx. 19secs.
Maximum Document Size	Flatbed:	A4, LTR (216 x 297mm)
Maximum Document Size	ADF:	A4, LTR, LGL
Copy
Image Quality	3 positions (Fast, Standard, High)
Density Adjustment	9 positions, Auto intensity (AE copy)* * Not supported for ADF
*Copy Speed⁷ Based on ISO / IEC 24735 and ISO / IEC 29183 standards.**	Document: Colour: sFCOT / Simplex:	Approx. 29secs.
	Document: Colour: sESAT / Simplex:	Approx. 4.0ipm
	Document (ADF): Colour: ESAT / Simplex:	Approx. 3.4ipm
Multiple Copy	Black / Colour:	Max. 99 pages
Fax
Type	Desktop Transceiver (Super G3 / Colour Communication)
Applicable Line	PSTN (Public Switched Telephone Network)
*Transmission Speed⁸**	Black:	Approx. 3secs. (33.6kbps)
*Transmission Speed⁸**	Colour:	Approx. 1min. (33.6kbps)
Fax Resolution	Black:	8pels/mm x 3.85lines/mm (Standard), 8pels/mm x 7.7lines/mm (Fine), 300 x 300dpi (Extra Fine)
Fax Resolution	Colour:	200 x 200dpi
Print Size	A4, LTR, LGL
Scanning Width	208mm (A4), 214mm (LTR)
Modem Speed	Max. 33.6kbps (Automatic fall back)
Compression	Black:	MH, MR, MMR
Compression	Colour:	JPEG
Gradation	Black:	256 levels
Gradation	Colour:	24 bits Full colour (RGB each 8 bits)
ECM (Error Correction Mode)	ITU-T T.30 compatible
Automatic Dialing	Coded Speed Dialing:	Max. 20 locations
Automatic Dialing	Group Dialing:	Max. 19 locations
*Transmission / Reception Memory⁹**	Approx. 50 pages
PC Fax
Type	Windows:	via FAX modem (in MFP)
Type	Mac:	N/A
Destination Number	1 location
Black / Colour	B/W transmission only
Paper Handling
Rear Tray (Maximum Number)	Plain Paper	A4, A5, B5, LTR = 100, LGL = 10
	High Resolution Paper (HR-101N)	A4 = 80
	Photo Paper Pro Platinum (PT-101)	4 x 6" = 20, A4, 8 x 10" = 10
	Photo Paper Plus Glossy II (PP-201)	4 x 6" = 20, A4 = 10
	Photo Paper Plus Semi-Gloss (SG-201)	4 x 6" = 20, A4 = 10
	Glossy Photo Paper "Everyday Use" (GP-501)	4 x 6" = 20, A4 = 10
	Matte Photo Paper (MP-101)	4 x 6" = 20, A4 = 10
	Photo Stickers (PS-101)	1
	T-Shirt Transfer (TR-301)	1
	Envelope	European DL, US Com. #10 = 10
Auto Document Feeder (ADF)	Paper Handling (Plain Paper):	A4, LTR = 30, LGL = 5
Paper Weight
Rear Tray	Plain Paper:	64 - 105g/m²
Rear Tray	Canon Specialty Paper: Max. Paper Weight:	Approx. 300g/m² (Photo Paper Pro Platinum PT-101)
System Requirements
*Windows¹¹**	Windows XP, Windows Vista, Windows 7
*Macintosh¹¹**	Macintosh OS X 10.4.11 - 10.6
Direct Specifications
PictBridge	Compatible Digital Camera:	"PictBridge" compliant digital cameras, camcorders and camera phones
PictBridge	File Formats:	JPEG *(Exif ver2.2 / 2.21 / 2.3 compliant)¹⁰**
Scan to Memory	Compatible Media:	USB Flash Memory
General
Quick Start	Approx. 4secs.
Operation Panel	Display:	Full dot LCD
Interface	USB 2.0 Hi-Speed, PictBridge, Bluetooth v2.0 (Option): Maximum Speed 1.44Mbps (JPEG, PNG only, OPP, BIP)
Self-Opening Paper Output Tray	Available
Operating Environment	Temperature:	5 - 35°C
Operating Environment	Humidity:	10 - 90% RH (no dew condensation)
Storage Environment	Temperature:	0 - 40°C
Storage Environment	Humidity:	5 - 95% RH (no dew condensation)
*Acoustic Noise (PC Print)^12**	Approx. 45.7dB(A)
Power	AC 100 - 240V, 50 / 60Hz
Power Consumption	Standby (scanning lamp is off) (USB Connection to PC):	Approx. 2.0W
	OFF (USB connection to PC):	Approx. 0.3W
	*Copying^13:**	Approx. 11W
Environment	Regulation:	RoHS (EU, China), WEEE (EU)
Environment	Eco-Label:	Energy Star
Duty Cycle	Up to 3,000 pages/month
Dimension (W x D x H)	Approx. 458 x 415 x 198mm
Weight	Approx. 8.5kg

Specifications are subject to change without notice.

*¹	Ink droplets can be placed with a pitch of 1/4800 inch at minimum.
*²	Document print speeds are the averages of ESAT in Office Category Test for the default mode, ISO / IEC 24734, excluding time to print the first set. Photo print speed is based on the default setting using ISO / JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
*³	The paper size that can be fed from the cassette are A4, A5, B5, LTR size.
*⁴	Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
*⁵	The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included.
*⁶	Colour document scan speed is measured with ISO / IEC 24735 Annex C Test Chart A. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc.
*⁷	Copy speeds are the average of sFCOT and sESAT, ISO / IEC 29183. ADF copy speed is the average of ESAT in General Performance Test for the default simplex mode, ISO / IEC 24735, excluding time to copy the first set. Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warming up time.
*⁸	Black & white document fax transmission speed is based on default setting using ITU-T No.1 chart. Colour document fax transmission speed is based on default setting using Canon Colour Fax Test Sheet. Actual transmission speed may vary depending on document complexity, fax settings at receiving end, and line conditions etc.
*⁹	Page count is based on ITU-T No.1 chart or Canon FAX Standard Chart No.1.
*¹⁰	Image data taken by DCF (Ver.1.0 / 2.0) - compliant digital cameras, camcorders or camera phones and recorded in JPEG (Exif-compliant) format.
*¹¹	Please visit here to check OS compatibility and to download the latest driver updates.
*¹²	When printing ISO / JIS-SCID N2 pattern on 4 x 6" Photo Paper Plus Glossy II using default settings.
*¹³	Copy: When copying ISO / JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings.

Disclaimer

•	You need to install all black and colour ink tanks or ink cartridges whether you perform mono or colour printing. If any ink tank or ink cartridge is not installed, an error occurs, and printing, scanning or copying cannot proceed until a new ink tank or ink cartridge is installed.
•	Depending on the paper used or the print settings, colour ink may be used even when you print a mono document. When any ink colour has run out, you need to replace the ink cartridge to continue printer operations.
•	To optimise printer performance, Canon inkjet printers undergo an automatic cleaning process, during which the printer purges ink from the nozzles to prevent them from being clogged. During this process, a very small amount of ink will be used. In addition, when you use the printer for the first time, a small amount of ink will be used in the initialisation stage. In these instances, all colours of ink may be utilised.
•	Generally, parts required in the repair of a printer are available for two to five years after production of such model is discontinued. Depending on your printer model, we may recommend that you replace a printer requiring repair with a new printer of the same model or of another model with similar functions. In such case you may not be able to use the supplies or accessories previously used with your replaced printer. Your operating system may also need to be upgraded. Please consult your local authorised Canon contact accordingly.
•	Generally, the warranty for your printer will be for one year from the date of purchase subject to the actual terms of your local warranty. The warranty does not cover printer supplies such as paper and ink tanks / cartridges. For full and actual terms of your warranty, please refer to your warranty card or local authorised Canon contact.
•	To obtain good printing quality, use up ink within six months after opening.
•	Costs of the rectification of problems with your printer caused or contributed by the use of non-genuine Canon ink tank or cartridges (including where a genuine Canon Ink tank or cartridge is supplemented or fed with non-genuine Canon ink) may not be covered under your printer warranty. Please keep this in mind when using non-genuine Canon ink.
