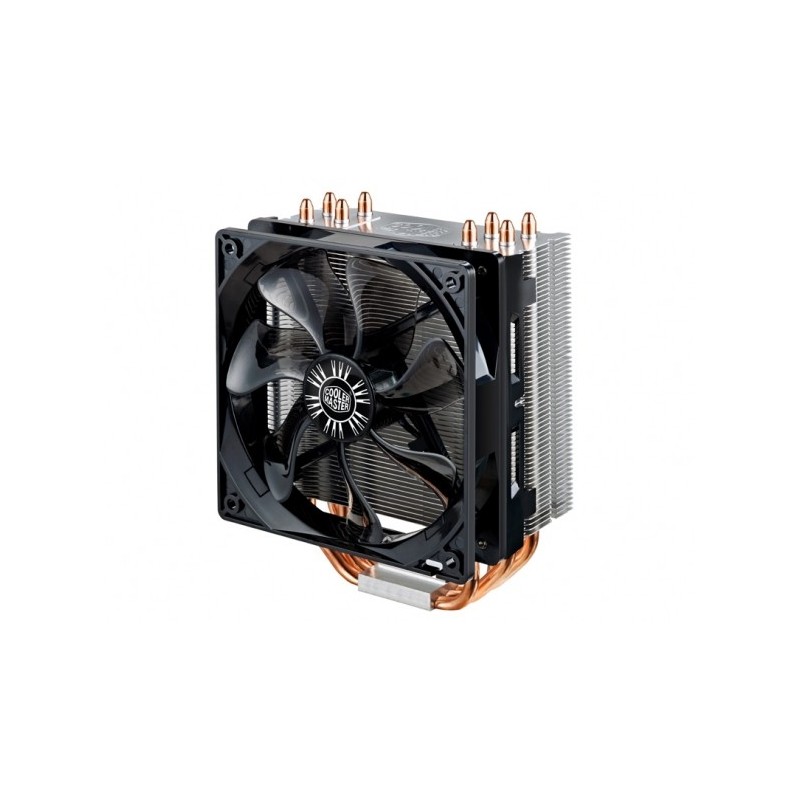

Cooler Master HYPER 212 EVO TURBO Edition

Spesifikasi produk CPU Cooler Heatsin Cooler Master HYPER 212 EVO PWM

Model

• RR-212E-20PK-R1 / RR-212E-20PK-R2 / RR-212E-16PK-R1(EU Version)

CPU Socket

• Intel Socket: LGA 2011-3* / 2011* / 1366 / 1156 / 1155 / 1150 / 775
• AMD Socket: FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2

CPU Support

• Intel:Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron
• AMD: FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™

Dimension

• 120 x 80 x 159 mm (4.7 x 3.1 x 6.3 in)

Heat Sink Dimensions

• 116 x 51 x 159 mm (4.6 x 2.0 x 6.3 in)

Heat Sink Material4

• Direct Contact Heat Pipes / Aluminum Fins

Heat Sink Weight

• 465g (1.03 lb)

Heat Pipes Dimensions

• ø6mm

Fan Dimension

• 120 x 120 x 25 mm (4.7 x 4.7 x 1 in)

Fan Speed

• 600 – 2,000 RPM (PWM) ± 10%
• 600 – 1,600 RPM (PWM) ± 10% (EU Version)

Fan Airflow

• 24.9 – 82.9 CFM ± 10%
• 24.9 – 66.3 CFM ± 10% (EU Version)

Fan Air Pressure

• 0.3 – 2.7mm H2O ± 10%
• 0.3 – 1.7mm H2O ± 10% (EU Version)

Fan Life Expectancy

• 40,000 hrs

Fan Noise Level (dB-A)

• 9 - 36 dBA
• 9 - 31 dBA (EU Version)

Bearing Type

• Long Life Sleeve Bearing

Connector

• 4-Pin

Fan Rated Voltage

• 12 VDC

Fan Rated Current

• 0.22A
• 0.19A (EU Version)

Power Consumption

• 2.64W
• 2.28W (EU Version)

Fan Weight

• 104g (0.23 lb)

EAN / UPC Code

• RR-212E-20PK-R1: 4719512032701 / 884102012921
• RR-212E-20PK-R2: 4719512035054 / 884102012921
• RR-212E-16PK-R1(EU Version): 4719512032701 / 884102012921
