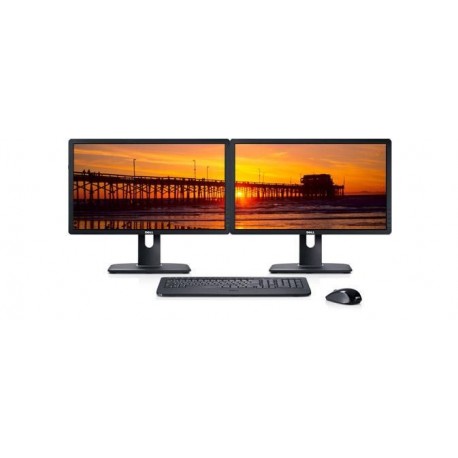

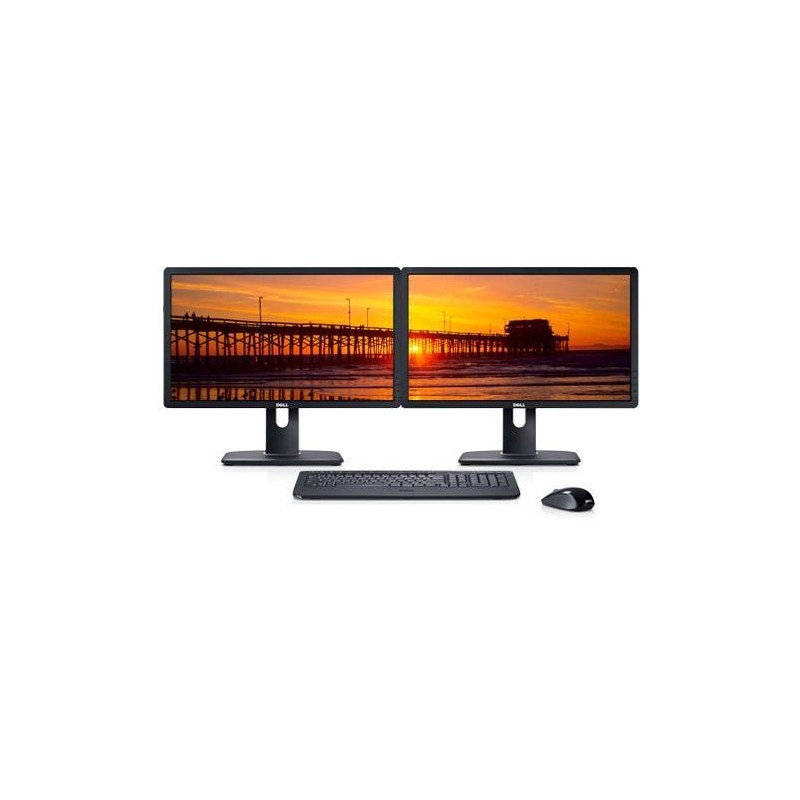

Dell U2312HM Monitor 23 in Widescreen (VGA + DVI-D + Display Port + USB 2.0)

Spesifikasi produk Dell U2312HM Monitor 23 in Widescreen (VGA + DVI-D + Display Port + USB 2.0)

Display
Panel Size

• 58.42 cm 23 inches (23-inch wide viewable image size)

Optimal Resolution

• Full HD resolution, 1920 x 1080 at 60 Hz

Contrast Ratio

• 1000: 1 (typical), Dynamic Contrast Ratio: 2 Million:1 (Max)

Brightness

• 300 cd/m2 (typical)

Response Time

• 8ms (gray to gray)

Viewing Angle

• (178° vertical / 178° horizontal)

Color Support

• Color Gamut (typical): 82% (CIE 1976)1

Color Depth

• 16.7 million colors

Pixel Pitch

• 0.265 mm

Display Type

• Widescreen Flat Panel Display

Aspect Ratio

• Widescreen (16:9)

Flat Panel Mount Interface

• VESA

Panel Type, Surface

• IPS (In-Plane Switching), anti glare with hard coat 3H

Optimal Resolution

• Full HD resolution, 1920 x 1080 at 60 Hz

Preset Display Area (H x W)

• 509.2 mm x 286.4mm
• 20.04" x 11.28"

Contrast Ratio

• 1000: 1 (typical), Dynamic Contrast Ratio: 2 Million:1 (Max)

Backlight Technology

• LED

Response Time

• 8ms (gray to gray)

Viewing Angle

• (178° vertical / 178° horizontal)

Display Screen Coating

• Antiglare with hard-coating 3H

Connectivity

• 1 Digital Visual Interface connectors (DVI-D) with HDCP
• 1 DisplayPort (DP)
• 1 Video Graphics Array (VGA)
• 1 USB 2.0 upstream port
• 4 USB 2.0 downstream ports
• DC power connector for Dell Soundbar

Stand

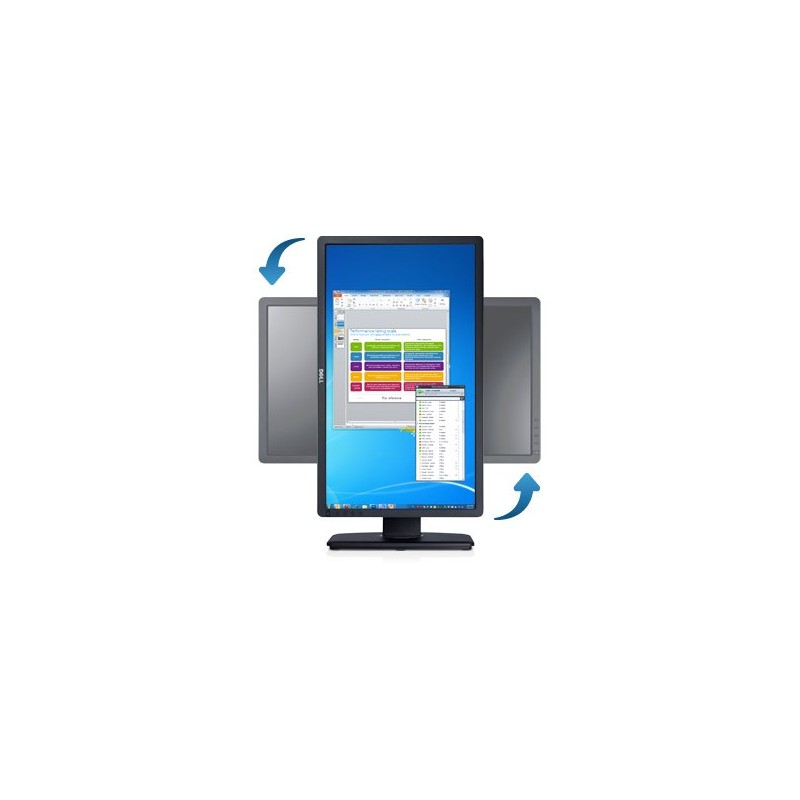

• Height-Adjustable stand, tilt , swivel , pivot and built in cable-management

Built-in Devices

• USB 2.0 Hi-Speed Hub (with 1 USB upstream port and 4 USB downstream ports) DC-out

Security

• Security lock slot (cable lock sold separately) Anti-theft stand lock slot (to panel)

Dimensions

Height with stand ( Compressed ~ Extended)

• 365.0 mm ~493.9 mm 14.37" ~19.44"

Depth

• 185.4 mm 7.30"

Width

• 546.4 mm 21.51"

Height without stand

• 323.3 mm 12.73"

Depth without stand

• 59.5 mm 2.34"

Width without stand

• 546.4 mm 21.51"

Weight (panel only - for VESA mount)

• 2.96 kg 6.53 lbs"

Weight (with packaging)

• 6.47kg 14.26 lbs"

Dimensions (W x D x H)

• 546.4 mm 21.51" x 185.4 mm
• 7.30" x 365.0 mm ~493.9 mm
• 14.37"" ~19.44"

Power
Voltage Required

• 100 to 240 VAC / 50 or 60 Hz + 3Hz / 1.5 A (Max)

Power Consumption (Operational)

• 30W(typical) / 70W(maximum)6

Power Consumption Stand by / Sleep

• Less than 0.5 W

Audio Output

• DC power connector for optional Dell Soundbar

Environmental
Temperature Range Operating

• 0° to 40°C (32° to 104°F)

Temperature Range Non-operating

• Storage : -20° to 60° (-4° to 140° F)
• Shipping : -20° to 60° (-4° to 140° F)

Humidity Range Operating

• 10% to 80% (non-condensing)

Humidity Range Non-operating

• Storage : 5% to 90% (non-condensing)
• Shipping : 5% to 90% (non-condensing)

Altitude Operating

• 3,048 m (10,000 ft) maxAltitude

Non-operating

• 10,668 m (35,000 ft) max

Regulatory

• COMPLIANCE AND STANDARDS
• ENERGY STAR 5.1
• EPEAT Gold
• TCO Certified Displays

Product Safety, EMC and Environmental Datasheets

• Dell Regulatory Compliance Home Page
• Dell and the Environment
