Dell P2312H Monitor 23 in Widescreen (VGA DVI-D Display Port USB 2.0)

Spesifikasi produk Dell P2312H Monitor 23 in Widescreen (VGA DVI-D Display Port USB 2.0)

Display
Panel Size:

• 58.42 cm

Aspect Ratio

• Widescreen (16:9)

Panel Type, Surface:

• TN (Twisted Nematic), anti glare with hard coat 3H

Optimal Resolution:

• 1920 x 1080 at 60 Hz

Contrast Ratio:

• 1000: 1 (typical), Dynamic Contrast Ratio : 2 Million:1 (Max)

Dynamic Contrast Ratio:

• 1000: 1 (typical), Dynamic Contrast Ratio : 2 Million:1 (Max)

Brightness:

• 250 cd/m2 (typical)

Response Time:

• 5 ms (back to white)

Viewing Angle

• (160° vertical / 170° horizontal)

Color Support:

• 16.7 million colors

Pixel Pitch:

• 0.248mm

Display Screen Coating

• Antiglare with hard-coating 3H

Diagonal Viewing Size:

• 58.42 cm 23 Inches (23-inch wide viewable image size)

Display Type

• Widescreen Flat Panel Display

Preset Display Area ( H x V)

• 509.76mm x 286.74mm 20.07" x 11.29" Backlight Technology

LED
Connectivity

• 1 Digital Visual Interface connectors (DVI-D) with HDCP
• 1 Video Graphics Array (VGA)
• 1 USB 2.0 upstream port
• 2 USB 2.0 downstream ports
• DC power connector for Dell Soundbar

STAND

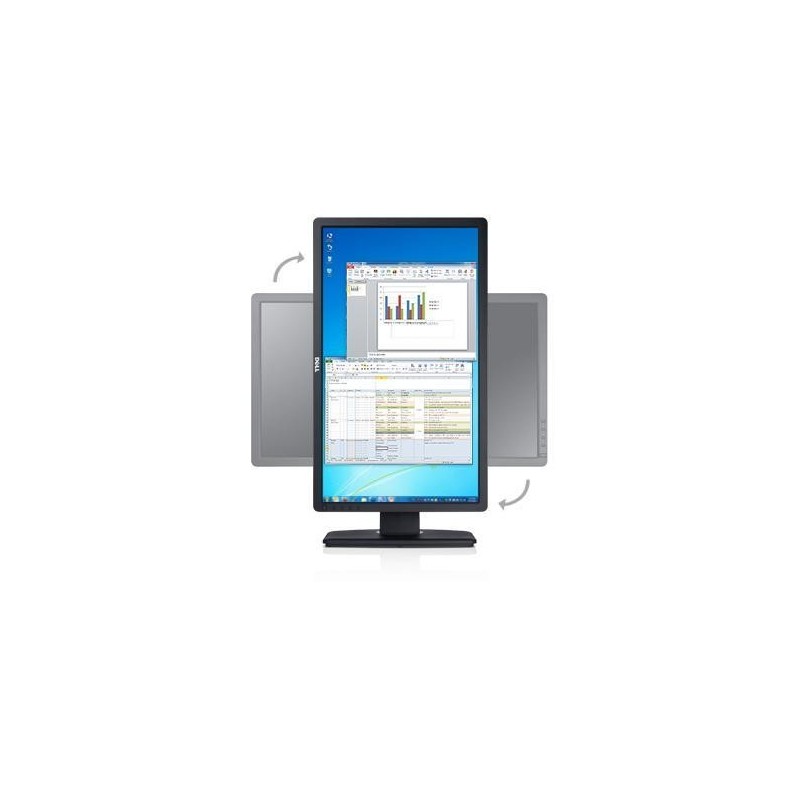

• Height-adjustable stand, tilt , swivel and built in cable-management and built-in cable management.

BUILT-IN DEVICES
USB 2.0 Hi-Speed Hub (with 1 USB upstream port and 2 USB downstream ports)Audio DC-out
Security
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to panel)
Dimensions
SIZE AND WEIGHT


Dimensions ( W x Dx H )

• 546.4mm x 185.4mm x 365.0mm(compressed)~493.9mm(extended)
• 21.51" x 7.30" x 14.37"(compressed)~19.44"(extended)

Weight (panel only - for VESA mount)

• 3.44 kg
• 7.58 lb

Weight (with packaging)

• 7.45 kg
• 15.93 lb

Specifications - Service / Support Details

• 3-Year Advanced Exchange8 Service and Premium Panel Guarantee

Power

• ELECTRICAL

Voltage Required:

• 100 to 240 VAC / 50 or 60 Hz ± 3Hz / 1.5 A (Max)

Power Consumption (Operational):

• 25W (typical) / 50W (maximum)7

Power Consumption (Stand by / Sleep):

• Less than 0.1 W

Environmental
Temperature Range Operating:

• 0° to 40° C (32° to 104° F)

Temperature Range Non-operating:

• Storage : -20° to 60° (-4° to 140° F)
• Shipping : -20° to 60° (-4° to 140° F)

Humidity Range Operating:

• 10% to 80% (non-condensing)

Humidity Range Non-operating:

• Storage : 5% to 90% (non-condensing)
• Shipping : 5% to 90% (non-condensing)

Altitude Operating:

• 3,048 m (10,000 ft) max

Altitude Non-operating:

• 10,668 m (35,000 ft) max

Regulatory
COMPLIANCE AND STANDARDS
ENERGY STAR 5.0

• EPEAT Gold
• TCO Certified Displays
• Product Safety, EMC and Environmental Datasheets
• Dell Regulatory Compliance Home Page
• Dell and the Environment
• Energy Star

WHAT'S IN THE BOX

• Monitor with stand
• Power Cable
• DVI Cable
• USB Cable
• VGA Cable
• Drivers and Documentation media
• Quick Setup Guide
• Safety Information
