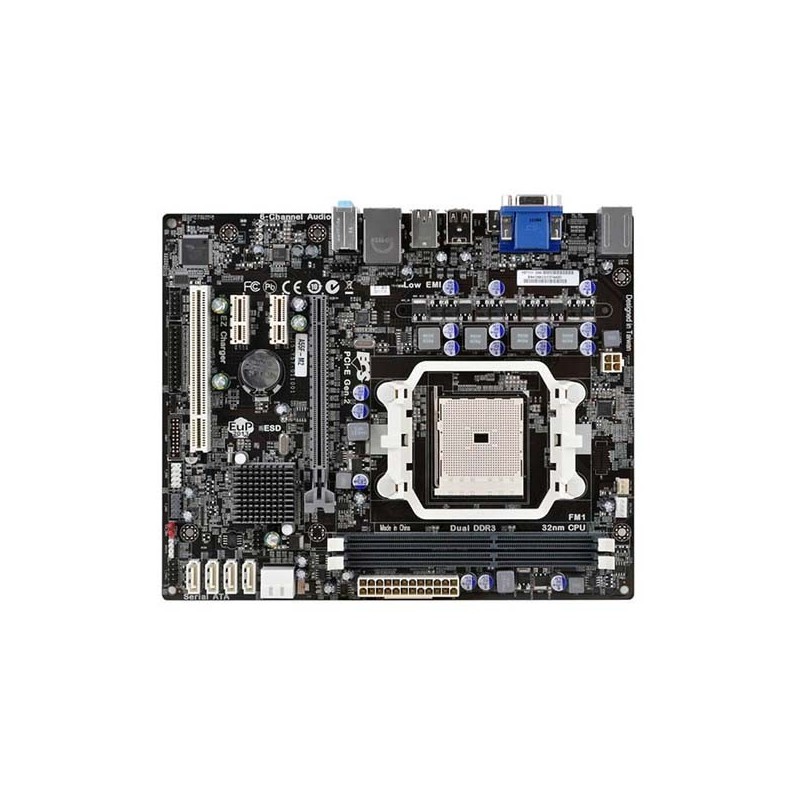

ECS A55F-M2 FM1 A75 DDR3

Spesifikasi produk Motherboard AMD ECS A55F-M2 FM1 A75 DDR3

CPU

• Supports AMD® FM1 socket for AMD® A series, E Series, Athlon Quard-core, Athlon Dual-core, Sempron Dual-core processors
• High Performance AMD HyperTransport 3.0 CPU Interface
• Solid Capacitor for CPU side
• Please refer to CPU support list for details

CHIPSET

• AMD® A55 FCH

GRAPHICS

• AMD Radeon™ HD 6000 Series (Llano APU) graphics
• Supports DirectX® 11
• Supports AMD UVD 3.0
• Supports AMD Dual Graphics
• Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

• Dual-channel DDR3 Memory architecture
• Supports DDR3 1866/1800/1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
• 2 X 240-pin DDR3 DIMM socket
• Support up to 32 GB*
• * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
• * Due to AMD CPU spec limitation, please refer to Memory QVL for more information.

EXPANSION SLOT

• 1 X PCI Express X16 Gen 2.0 slot(s)
• 2 X PCI Express X 1 Gen 2.0 slot(s)
• 1 X PCI slot(s)
• StorageSupport by AMD® A55 Express Chipset
• 6 X Serial ATAII 3Gb/s
• RAID0, RAID1,RAID10 configuration
• Supports NCQ, AHCI and "Hot Plug" functions

Audio

• 6-Channel HD audio CODEC
• Compliant with HD audio specification
• Realtek ALC662
• Realtek ALC662 6-channel High Definition audio CODEC
• Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
• Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
• Emulation of 26 sound environments to enhance gaming experience
• Voice Cancellation and Key Shifting in Karaoke mode
• Compatible with Direct Sound 3D™, A3D™, I3DL2

LAN

• Realtek 8111E Gigabit Fast Ethernet Controller
• Wake-On-LAN

USB

• Support by AMD® A55 Express Chipset
• 12 X USB2.0 port(s) Up to 480 Mb/s
• Back Panel 8 port(s)
• Onboard 4 port(s)

REAR PANEL I/O

• 1 X PS/2 combo connector
• 1 X HDMI port(s)
• 1 X DVI-D port(s) (optional)
• 1 X D-Sub (VGA) port(s)
• 8 X USB2.0 port(s)

CONNECTORS & HEADERS

• 1 X 24-pin ATX Power Supply connector
• 1 X 4-pin 12V Power connector
• 1 X 4-pin CPU_FAN connector
• 1 X 3-pin SYS_FAN connector
• 1 X Front Panel switch/LED header
• 1 X Front panel audio header
• 1 X Speaker header
• 2 X USB 2.0 header
• Support additional 4 USB ports
• 1 X S/PDIF out header
• 6 X SATA II 3Gb/s connector(s)
• 1 X CLR_CMOS header
• 1 X Serial port header (COM)
• 1 X Parallel port header (LPT)
• 1 X Chassis intrusion header

SYSTEM BIOS

• AMI BIOS with 16 MB SPI Flash ROM
• Supports M.I.B III Utility
• Multi-Language BIOS

FORM FACTOR

• mATX Form Factor
• 244mm(W)*200mm(H)

OS Support

• Windows XP 32-bit
• Windows XP 64-bit
• Windows Vista 32-bit
• Windows Vista 64-bit
• Windows 7 32-bit
• Windows 7 64-bit
• Windows 8 32-bit
• Windows 8 64-bit

Certifications

• CE/FCC Certification
• ErP/EuP Certification
• WHQL Certification

Bundled Software

• ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
