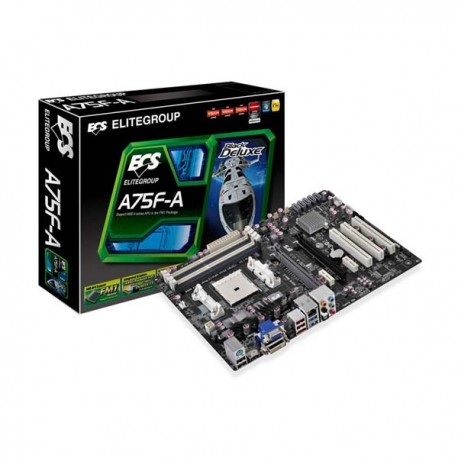

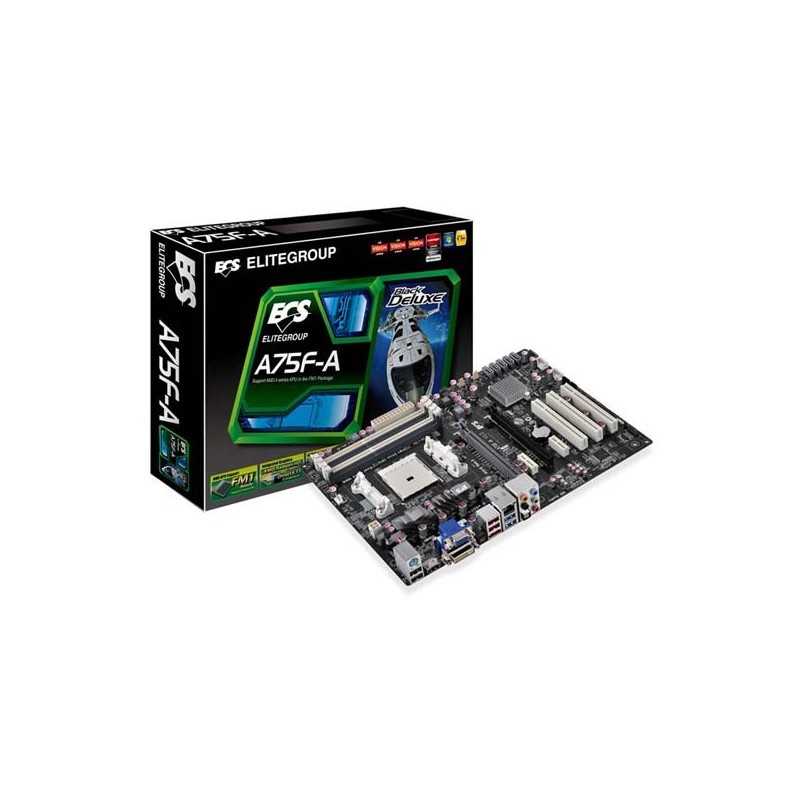

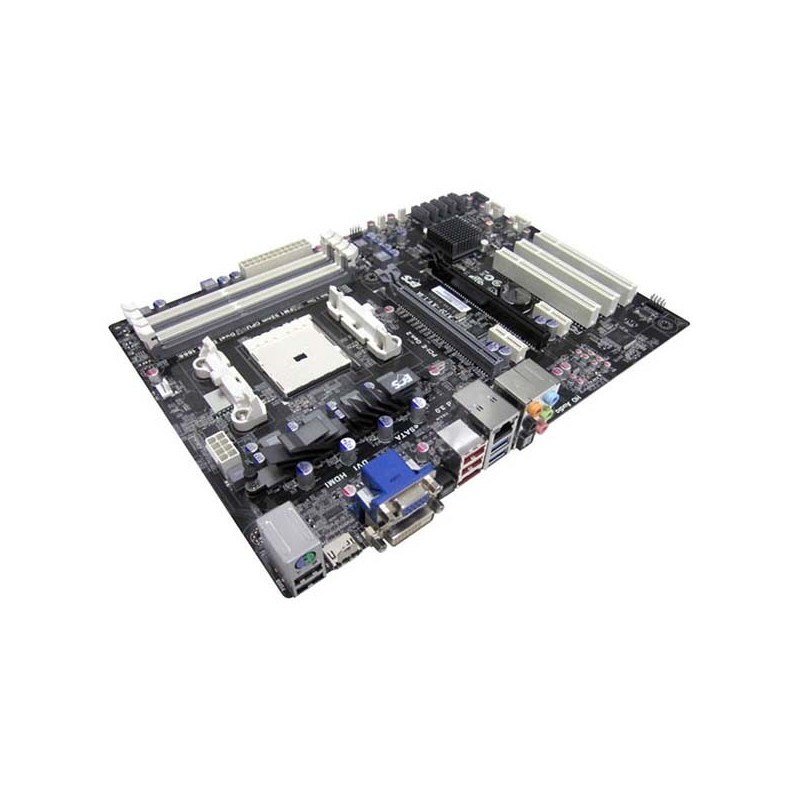

ECS A75F-A FM1 A75 DDR3

Spesifikasi produk Motherboard AMD ECS A75F-A FM1 A75 DDR3

Model
Brand

• ECS

Model

• A75F-A

Supported CPU
CPU Socket Type

• FM1

CPU Type

• A4 / A6 / A8 / E2 APU

Chipsets
Chipset

• AMD A75 (Hudson D3)

Memory
Number of Memory Slots

• 4×240pin

Memory Standard

• DDR3 1333/1600/1866/2133(OC)/2400(OC)/2600(OC)

Maximum Memory Supported

• 64GB

Channel Supported

• Dual Channel

Expansion Slots

PCI Express 2.0 x16

• 2 (x16, x4)

PCI Express x1

• 2

PCI Slots

• 3

Storage Devices
SATA 6Gb/s

• 5 x SATA 6Gb/s

SATA RAID

• 0/1/10

Onboard Video
Onboard Video Chipset

• None

Onboard Audio
Audio Chipset

• Realtek ALC892

Audio Channels

• 8 Channels

Onboard LAN
LAN Chipset

• Realtek 8111E

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 1 x PS/2 keyboard/mouse port

Video Ports

• D-Sub + DVI

HDMI

• 1 x HDMI

USB 3.0

• 2 x USB 3.0

USB 1.1/2.0

• 4 x USB 2.0

eSATA

• 1 x eSATA 6Gb/s

S/PDIF Out

• 1 x Optical

Audio Ports

• 5 Ports

Internal I/O Connectors
Onboard USB

• 2 x USB 3.0 + 6 x USB 2.0

Other Connectors

• 1 x 24-pin ATX Power Supply connector
• 1 x 8-pin ATX 12V Power Connector
• 1 x 4pin CPU_FAN connectors
• 1 x 3-pin SYS_FAN connector
• 1 x 3-pin PWR_FAN connector
• 1 x COM header
• 1 x LPT header
• 1 x Front panel audio header
• 1 x Speaker header
• 1 x SPDIF out header

Physical Spec
Form Factor

• ATX

Dimensions (W x L)

• 12" x 8.66"

Power Pin

• 24 Pin

Features
Features

• Extra 109% Performance Gained - AMD Dual Graphics
• ATI CrossfireX
• Support A Series APU( CPU + GPU)
• ECS GUI UEFI BIOS
• 3X Current Supply for ECS EZ Charger
• Support AMD Steady Video Technology
• CyberLinkMedia Suite Bundled
