ECS G41T-M16 LGA775 Intel G41 DDR3
Kode Produk: 9614
Produk baru
Part No: KG9614

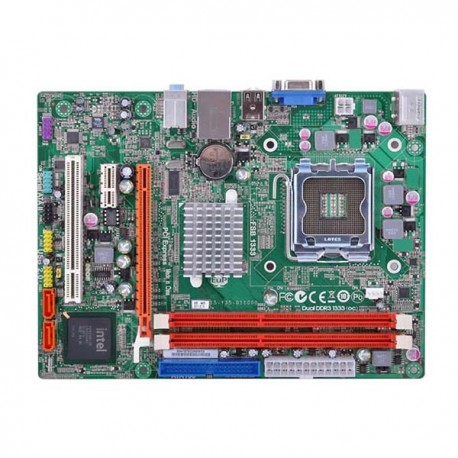

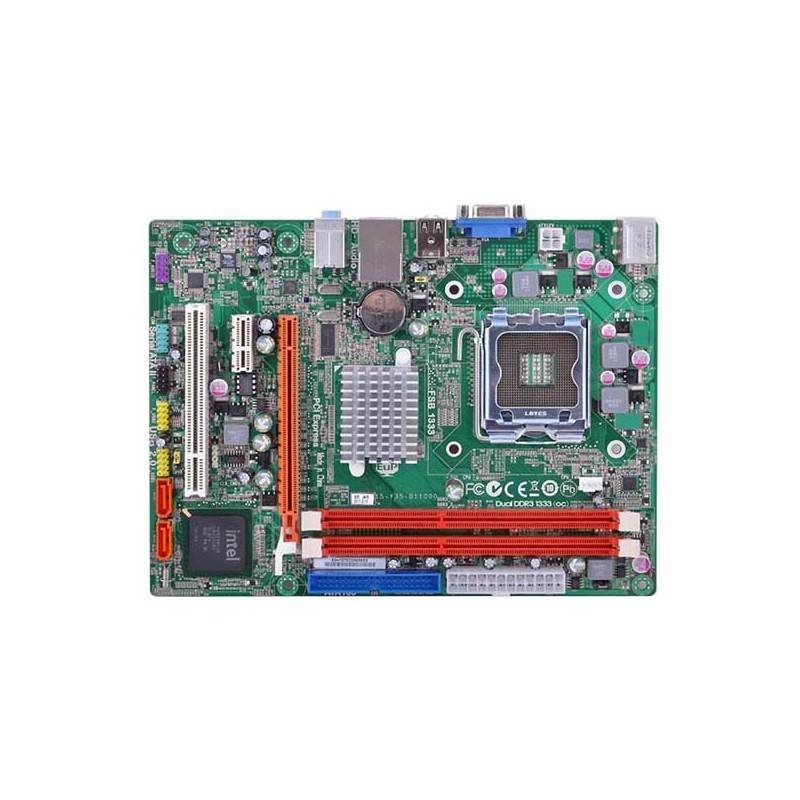

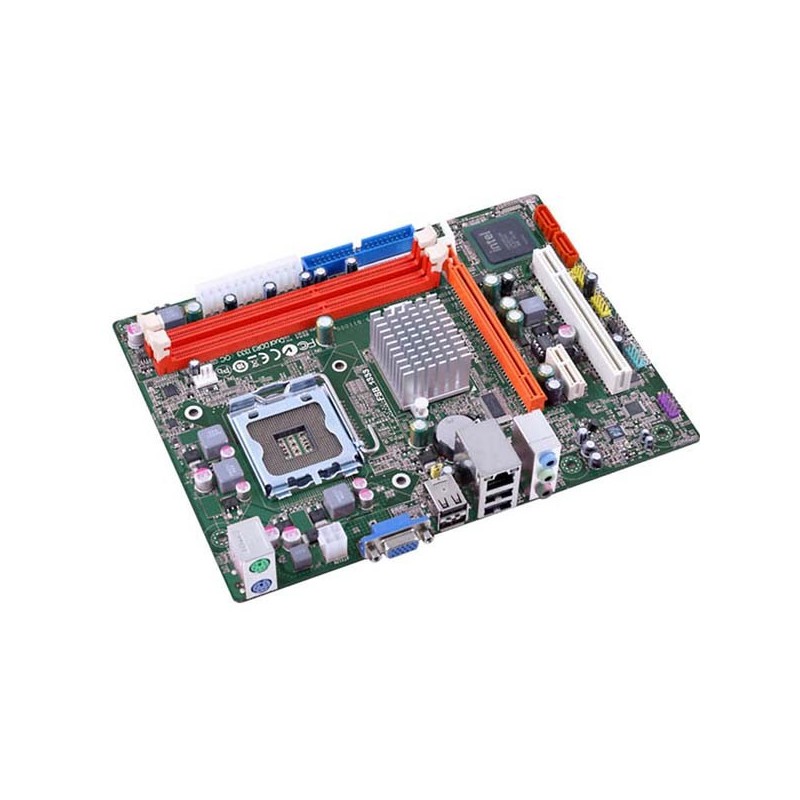

Motherboard Intel ECS G41T-M16 LGA775 Intel G41 DDR3
Info lainnya
Spesifikasi produk Motherboard Intel ECS G41T-M16 LGA775 Intel G41 DDR3
CPU
LGA775 socket for Core™2 Quad/ Core™2 Duo/ Pentium® Dual Core/ Celeron® Dual Core/ Celeron® 400 series /Pentium® 4/ Celeron® D processors- LGA775 socket for latest Intel® 45nm Multi-Core processors
- FSB 1333/1066/800 MHz
CHIPSET
Intel® G41 & ICH7- North Bridge: Intel® G41
- South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator X4500 (GMA X4500)- Integrated DirectX 10 graphics processor
MEMORY
Dual-channel DDR3 memory architecture- Support DDR3 up to 1333(OC)/1066/800 DDR3 SDRAM
- Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
- For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT
1 x PCI Express x16 Gen2.0 slot- 1 x PCI Express x1 slot
- 1 x PCI slot
STORAGE
Support by Intel® ICH7- 2 x Serial ATA 3.0Gb/s devices
- 2 x Ultra DMA100/66 devices
AUDIO
VIA® VT1705 6-channel audio CODEC- Compliant with HD audio specification
LAN
Realtek 8105E 10/100 Lan- Realtek 8111E Giga Lan (Optional)
REAR PANEL I/O
4 x USB 2.0 Ports- 1 x D-sub(VGA)
- 1 x RJ45 LAN connector
- 1 x Audio port
- 1 x PS/2 keyboard & PS/2 mouse connectors
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector- 1 x 4pin CPU_FAN connectors
- 1 x 4-pin ATX 12V connector
- 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
- 2 x SATA 3Gb/s connectors
- 1 x COM2 header (optional)
- 1 x Case open header
- 1 x Front panel switch/LED header
- 1 x Front panel audio header
- 1 x Speaker header
- 1 x Clear CMOS header
SYSTEM BIOS
AMI BIOS with 8Mb SPI Flash ROM- Supports eSF
- Supports eDLU
- Supports eBLU
FORM FACTOR
Micro-ATX Size, 225mm*170mm30 produk lainnya dikategori yang sama:
-
