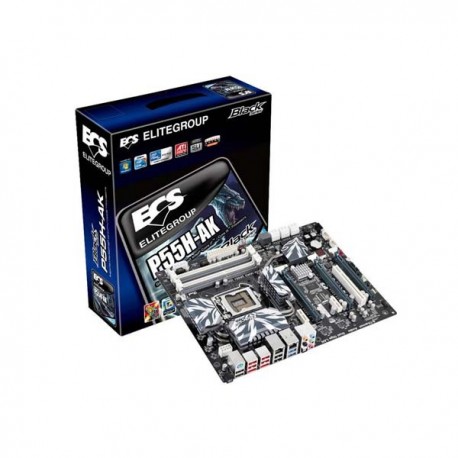

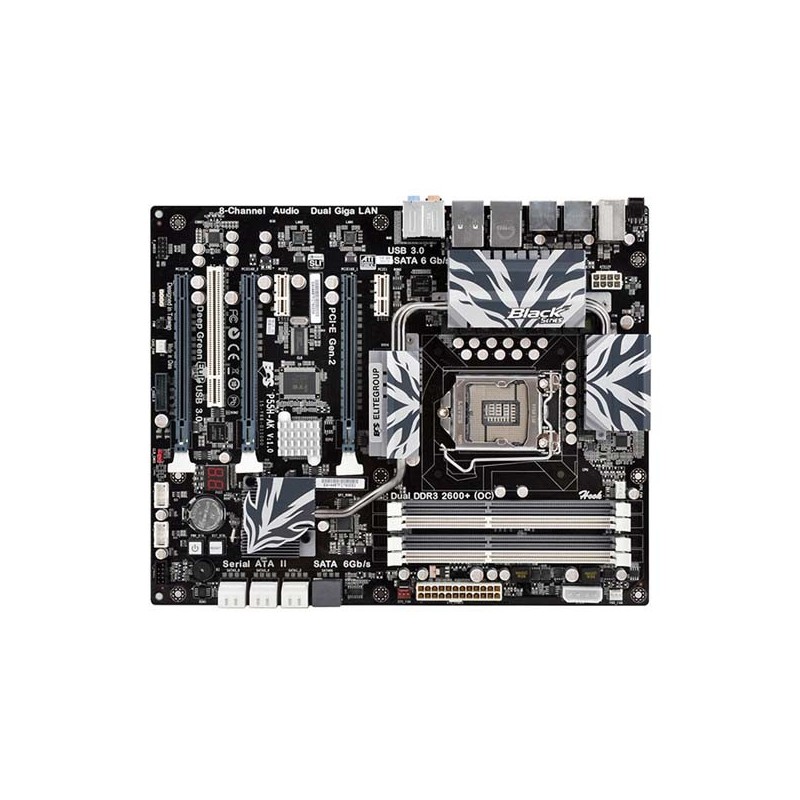

ECS P55H-AK LGA 1156 Intel P55 DDR3 USB3 SATA3 PCIEx3

Spesifikasi produk Motherboard Intel ECS P55H-AK LGA 1156 Intel P55 DDR3 USB3 SATA3 PCIEx3

CPU

• LGA1156 socket for latest Intel Core i7 / Core i5 / Core i3 high-end desktop processors
• Supports Unlocked Intel® Core™ i7 / Core™ i5 Processors
• Supports Hyper-Threading Technology CPU
• Supports Intel® Turbo Boost Technology
• Supports Intel® Smart Cache

CHIPSET

• Intel® PCH P55 / NVIDIA NF200

Extra Chips

• NVIDIA nForce® 200 PCI Express switch chip with extra 32 PCIe lanes
• Programming support for NVIDIA® SLI™ technology
• Full 64-bit addressing
• Supports the PCI Express power management capability
• PLX PEX 8608 PCIe Gen 2 switch
• Offers 8 PCI Express Gen2 (5.0GT/s) lanes
• Supports Read Pacing™ Technology
• Supports packet cut-thru with the industry’s lowest latency of 140ns (x4 to x1)

MEMORY

• Dual-channel DDR3 memory architecture
• 4 x 240-pin DDR3 DIMM socket support up to 16GB
• Supports DDR3 2400 (OC) / 2200 (OC) / 2000 (OC) /1800 (OC) /1600 (OC) / 1333 /1066 DDR3 SDRAM
• Supports Intel® Extreme Memory Profile (XMP)
• Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
• For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

• 3 x PCI Express Gen 2.0 x16 slots
• 2 x PCI Express x1 slots
• 1 x PCI slot
• PCIE16X_1/PCIE16X_2 /PCIE16X_3 runs at x16/x8/x8 speed.

STORAGE

• Support by Intel® P55
• 6 x Serial ATA 3.0Gb/s devices
• RAID0, RAID1, RAID5, RAID 10 configuration
• Support by Marvell 9128
• 2 x eSATA 6.0Gb/s ports supporting external SATA 6.0Gb/s devices
• 2 x Serial ATA 6.0Gb/s ports supporting 2 x SATA 6.0Gb/s device
• Supports SATA RAID 0 and 1

AUDIO

• Realtek RTL889 8-Ch High Definition audio CODEC
• Capability for “full rate” BluRay / DVD / HD DVD support.

LAN

• Dual RealTek RTL8111E Gigabit Fast Ethernet Controllers with Teaming

REAR PANEL I/O

• 1 x PS/2 keyboard/mouse combo port
• 2 x RJ45 LAN connectors
• 1 x Audio port (Line-in, Line-out, Mic-in)
• 1 x SPDIF port
• 1 x Clear_CMOS button
• 2 x eSATA 6.0Gb/s ports
• 2 x USB 3.0 ports compatible to both USB 3.0/2.0 devices (blue)
• 8 x USB 2.0 ports

INTERNAL I/O CONNECTORS & HEADERS

• 1 x 24-pin ATX Power Supply connector
• 1 x 8-pin ATX 12V Power Connector
• 1 x 4-pin power connector for VGA card
• 1 x 4-pin CPU_FAN connector
• 1 x 3-pin PWR_FAN connector
• 1 x 3-pin SYS_FAN connector
• 1 x Power on button
• 1 x Reset button
• 1 x Speaker header
• 1 x Front panel switch/LED header
• 1 x Front panel audio header
• 1 x SPDIF out header
• 1 x Clear CMOS header
• 1 x Serial Header(COM)
• 6 x Serial ATA 3Gb/s connectors
• 2 x SATA 6Gb/s connectors
• 1 x USB 3.0 header supports additional 2 USB 3.0 Ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 Ports

SYSTEM BIOS

• AMI BIOS with 16Mb SPI Flash ROM
• Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
• Supports ACPI & DMI
• Support over-clocking
• Audio, LAN, can be disabled in BIOS
• F11 hot key for boot up devices option
• Support ECS M.I.B X Utility
• CPU voltage adjustable
• Memory voltage adjustable
• NB Chipset Voltage Adjustable
• SB Chipset Voltage Adjustable
• HT Voltage Adjustable
• External Clock Adjustable

FORM FACTOR

• ATX Size, 305mm*244mm
