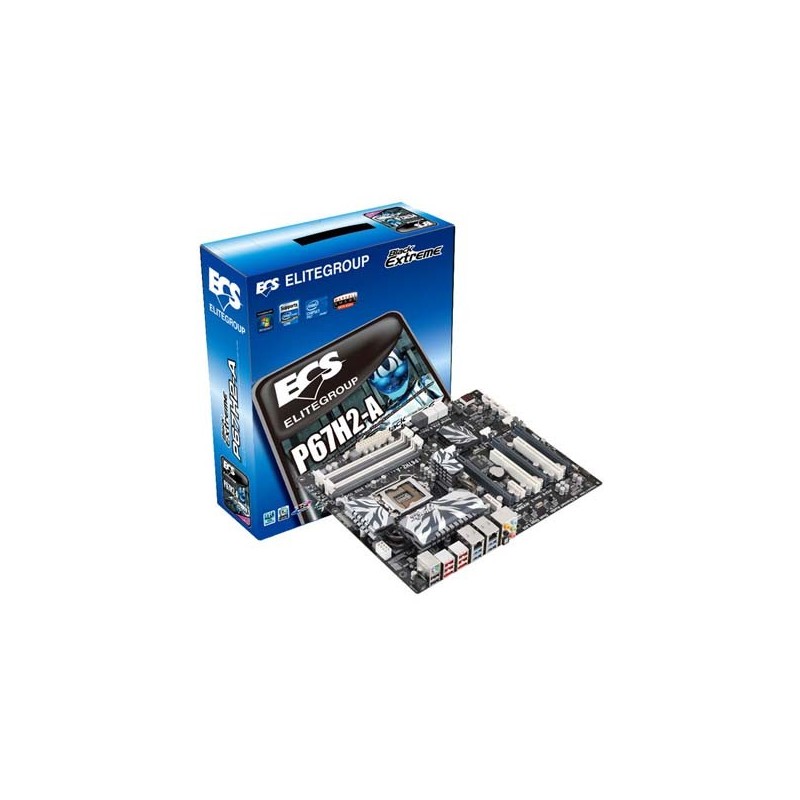

ECS P67H2-A LGA 1155 Intel P67 DDR3

Spesifikasi produk Motherboard Intel ECS P67H2-A LGA 1155 Intel P67 DDR3

CPU

• Supports new 2nd & 3rd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket
• DMI 5.0GT/s
• VRD 12.0
• 100% Solid capacitor design
• Supports Intel® Turbo Boost 2.0 Technology
• Supports Intel® Hyper-Threading Technology
• Intel® K Series Unlock CPU Support
• Please refer to CPU support list for details

CHIPSET

• Intel® P67 Express Chipset

GRAPHICS

• Supports NVIDIA® 3-Way SLI
• Supports ATI® 3-Way CrossFireX™

MEMORY

• Dual-channel DDR3 Memory architecture
• Supports DDR3 1866/1800/1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
• Supports up to 2133(OC)
• 4 X 240-pin DDR3 DIMM socket
• Support up to 32 GB*
• * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
• Note:Please refer to the latest Memory support list for details

EXPANSION SLOT

• 3 X PCI Express X16 Gen 3.0 slot(s)
• 2 X PCI Express X 1 Gen 2.0 slot(s)
• 2 X PCI slot(s)
• StorageSupport by Intel® P67 Express Chipset
• 2 X Serial ATAIII 6Gb/s
• 4 X Serial ATAII 3Gb/s
• 2 X eSATAIII 6Gb/s
• RAID0, RAID1,RAID5, RAID 10 configuration
• Supports Intel® Rapid Storage Technology
• Supports NCQ, AHCI and "Hot Plug" functions

Audio

• 8-Channel HD audio CODEC
• Compliant with HD audio specification
• Realtek ALC892
• Realtek ALC892 8-channel High Definition audio CODEC
• Compatible with Direct Sound 3D™, A3D™, I3DL2
• Smart multiple streaming operation
• Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
• 7.1+2 channel multi-streaming enables concurrent gaming/VoIP

LAN

• Realtek 8111E Gigabit Fast Ethernet Controller
• Wake-On-LAN
• Dual LAN with Teaming function

USB

• Support by Intel® P67 Express Chipset
• 4 X USB3.0 port(s) up to 5Gb/s
• 6 X USB2.0 port(s) Up to 480 Mb/s
• ECS EZ Charger (Gray USB header)

REAR PANEL I/O

• 1 X PS/2 combo connector
• 1 X Audio port (Line-in,4x Line-out, SPDIF out)
• 2 X RJ-45 port with teaming function
• 2 X eSATA 6Gb/s port(s)
• 4 X USB3.0 port(s)
• 6 X USB2.0 port(s)
• 1 X Clear_CMOS Button

CONNECTORS & HEADERS

• 1 X 24-pin ATX Power Supply connector
• 1 X 8-pin ATX 12V Power Connector
• 1 X 4-pin CPU_FAN connector
• 1 X 4-pin SYS_FAN connector
• 1 X 3-pin PWR_FAN connector
• 1 X Power on button
• 1 X Reset button
• 1 X Front Panel switch/LED header
• 1 X Front panel audio header
• 1 X Onboard Buzzer
• 1 X USB 3.0 header
• Support additional 2 USB ports
• 4 X USB 2.0 header
• Support additional 8 USB ports
• 1 X S/PDIF out header
• 2 X SATA III 6Gb/s connector(s)
• 4 X SATA II 3Gb/s connector(s)
• 1 X Serial port header (COM)
• 1 X 7S-LED Display

SYSTEM BIOS

• AMI BIOS with 32 MB SPI Flash ROM
• Supports M.I.B X Utility
• Supports ACPI 3.0 & DMI
• F7 hot key for boot up devices option
• Over-Clocking
• Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
• Multi-Language BIOS
• Audio, LAN, can be disabled in BIOS
• * Adjustable CPU Voltage
• * Memory Voltage Adjustable
• * Support CPU over-clocking function: Adjustable CPU Clock Multiplier

FORM FACTOR

• ATX Form Factor
•  305mm(W)*244mm(H)

OS Support

• Windows XP 32-bit
• Windows XP 64-bit
• Windows Vista 32-bit
• Windows Vista 64-bit
• Windows 7 32-bit
• Windows 7 64-bit
• Windows 8 32-bit
• Windows 8 64-bit

Certifications

• CE/FCC Certification
• ErP/EuP Certification
• WHQL Certification

Bundled Software

• ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
• Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
