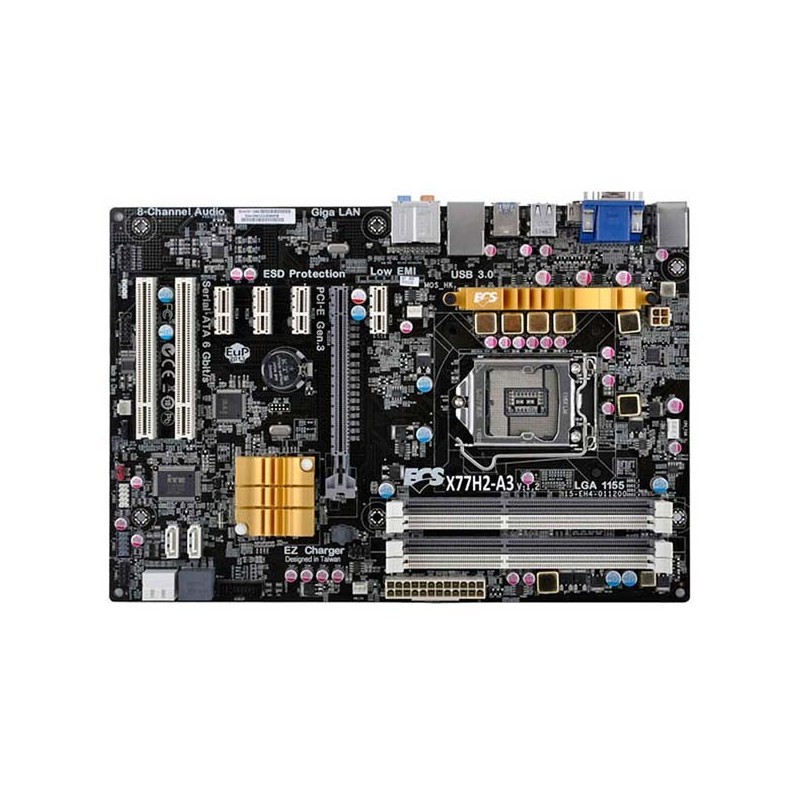

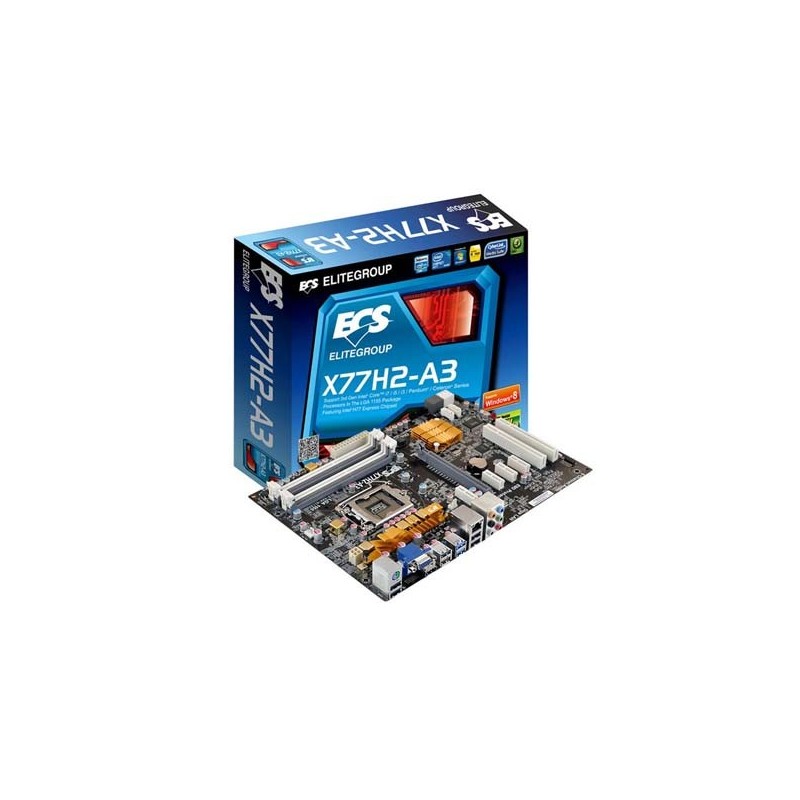

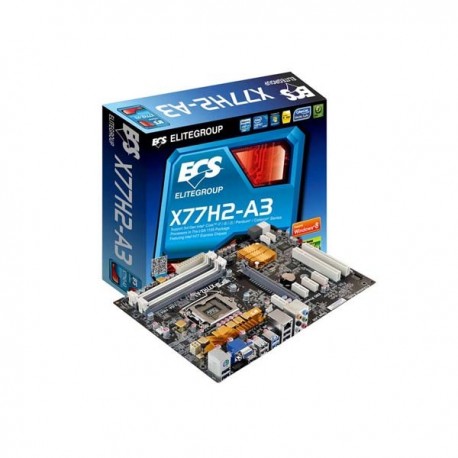

ECS X77H2-A3 LGA 1155 Intel H77 DDR3 USB3 SATA3

Spesifikasi produk Motherboard Intel ECS X77H2-A3 LGA 1155 Intel H77 DDR3 USB3 SATA3

CPU

• Supports new 2nd & 3rd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket
• DMI 5.0GT/s
• 100% Solid capacitor design
• Supports Intel® Hyper-Threading Technology
• Please refer to CPU support list for details

CHIPSETIntel

• ® H77 Express Chipset
• Intel® Smart Response Technology, Intel® Smart Connect Technology & Intel® Rapid Start Technolog

GRAPHICS

• Support Intel® HD Graphics 2500/4000(Intel 3rd gen CPU)
• Supports DirectX® 11
• *DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket
• Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
• Insider™
• Supports HDMI 1.4a & Premium Audio

MEMORY

• Dual-channel DDR3 Memory architecture
• Supports DDR3 1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
• 4 X 240-pin DDR3 DIMM socket
• Support up to 32 GB*
• * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
• Note:Please refer to the latest Memory support list for details

EXPANSION SLOT

• 1 X PCI Express X16 Gen 3.0 slot(s)
• 4 X PCI Express X 1 Gen 2.0 slot(s)
• 2 X PCI slot(s)

Storage

• Support by Intel® H77 Express Chipset
• 2 X Serial ATAIII 6Gb/s
• 4 X Serial ATAII 3Gb/s
• RAID0, RAID1,RAID5, RAID 10 configuration
• Supports Intel® Rapid Storage Technology
• Supports NCQ, AHCI and "Hot Plug" functions

Audio

• 8-Channel HD audio CODEC
• Compliant with HD audio specification
• Realtek ALC892
• Realtek ALC892 8-channel High Definition audio CODEC
• Compatible with Direct Sound 3D™, A3D™, I3DL2
• Smart multiple streaming operation
• Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
• 7.1+2 channel multi-streaming enables concurrent gaming/VoIP

LAN

• RealTek RTL 8111E Gigabit Fast Ethernet Controller
• Wake-On-LAN

USB

• Support by Intel® H77 Express Chipset
• 4 X USB3.0 port(s) up to 5Gb/s
• Back Panel 2 port(s)
• Onboard 2 port(s)
• 10 X USB2.0 port(s) Up to 480 Mb/s
• Back Panel 6 port(s)
• Onboard 4 port(s)
• ECS EZ Charger (Gray USB header)

REAR PANEL I/O

• 1 X PS/2 combo connector
• 1 X Audio port (Line-in,4x Line-out, Mic in)
• 1 X RJ-45 port
• 1 X D-Sub (VGA) port(s)
• 1 X DVI port(s) (HDMI port(s), optional)
• 2 X USB3.0 port(s)
• 6 X USB2.0 port(s)

CONNECTORS & HEADERS

• 1 X 24-pin ATX Power Supply connector
• 1 X 4-pin 12V Power connector
• 1 X 4-pin CPU_FAN connector
• 1 X 3-pin SYS_FAN connector with smart fan
• 1 X 3-pin PWR_FAN connector
• 1 X Front Panel switch/LED header
• 1 X Front panel audio header
• 1 X USB 3.0 header
• Support additional 2 USB ports
• 2 X USB 2.0 header
• Support additional 4 USB ports
• Support EZ charger (gray color)
• 1 X S/PDIF out header
• 2 X SATA III 6Gb/s connector(s)
• 4 X SATA II 3Gb/s connector(s)
• 1 X CLR_CMOS header
• 1 X Serial port header (COM)
• 1 X Chassis intrusion header

SYSTEM BIOS

• AMI BIOS with 64 MB SPI Flash ROM
• Supports M.I.B III Utility
• F7 hot key for boot up devices option
• Dual Display
• Support ECS EZ BIOS
• Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
• Multi-Language BIOS
• Audio, LAN, can be disabled in BIOS
• Supports PgUp clear CMOS Hotkey

FORM FACTOR

• ATX Form Factor
•  305mm(W)*210mm(H)

OS Support

• Windows XP 32-bit
• Windows XP 64-bit
• Windows Vista 32-bit
• Windows Vista 64-bit
• Windows 7 32-bit
• Windows 7 64-bit
• Windows 8 32-bit
• Windows 8 64-bit

Certifications

• CE/FCC Certification
• ErP/EuP Certification
• WHQL Certification
• WHCK Certification

Bundled Software

• ECS Intelligent EZ Utility : eBLU, eDLU, eSF
• Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
