EnGenius ETR9360 3G Wireless Pocket Router

Kode Produk: 27692

Referensi AI155/ET1/L25/

Kondisi: Produk baru

Part no : KG27692

Wireless N Pocket AP/Router 802.11b/g/n support 3G/3.5G dan ADSL Modem

Lebih detail

Kirim ke teman

Kirim ke teman

EnGenius ETR9360 3G Wireless Pocket Router

Part no : KG27692

Wireless N Pocket AP/Router 802.11b/g/n support 3G/3.5G dan ADSL Modem

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Produk EnGenius ETR9360 3G Wireless Pocket Router

Hardware Specifications
Memory

32MB SDRAM

Flash

4MB

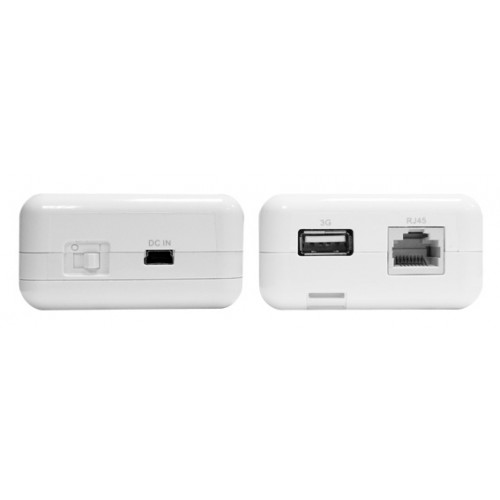

Physical Interface

WAN/LAN: 10/100 Fast Ethernet RJ-45 x 1

USB port for 3G

WPS (WiFi Protected Setup)

Mini-USB for Adapter

LEDs Status

Operation Mode

Power Status

WAN (Internet)

WLAN(Wireless connection)

WPS

Power Requirements

Lion Battery or Adapter (3.7V 1800mAh)

Battery Charger (110~240V)

Operation Mode

1 (AP: Orange / Router: Blue / Client Bridge: Green)

Power

1 ( Link-> blue static on)

WAN

1 ( Link-> blue static on, traffic->blink)

WLAN

1 ( Link-> blue on, traffic->blink)

WPS

1 (Link-> Associate Done, Processing->blink)

1 (Link blue static on)

Temperature Range

0 to 40° C - Operating, -10 to 70 ° C - Storage

Humidity (non-condensing)

15%～95% typical

Device Standby

13~14 hours

Continuous Loading

3~4 hours

Normal Loading

4~5 hours

Battery Charge

1~2 hours

Topology

Infrastructure

Operation Mode

AP/Router/Client Bridge

LAN

DHCP Server

Static Routing Table

UPNP

WAN

PPTP

PPPoE

Static IP

DHCP Client

Clone MAC

Router

NAT/ NAPT

Static Routing- Dynamic Route

Virtual server mapping

IP address mapping

Port Forwarding

Port Triggering

Special application

ALG(Application Layer Gateway) support (RTP/RTSP, AOL, FTP, ICMP, WMP/MMS, NetMeeting, SIP)

DNS Relay

DDNS

Time Zone(NTP client)

Firewall

Blocking Ping

DoS(Blocking Ping, Port scan, Sync Flood)

MAC / IP Filtering

ICMP Blocking

SPI (Stateful Packet Inspection)

DMZ (Demilitarized Zone) Host

Policy Based Parental Controls

Port Range / Service Filtering

Internet Domain Restriction

Dynamic URL Filtering (OEM subscription service)

VPN

VPN pass-through (PPTP, L2TP, IPSEC)

Wireless

Power saving(Green technology)

64/128 bit WEP Encryption

WPA Personal (WPA-PSK using TKIP or AES)

WPA Enterprise (WPA-EAP using TKIP)

802.1x Authenticator

Hide SSID in beacons

Wi-Fi Protection Setup (WPS)

ACL control

Best channel selection

Speed/Bandwidth monitor

QoS

WMM

Application base

Priority Queue

Bandwidth Allocation

Configuration

Web-based configuration (HTTP)

Firmware Upgrade

Via webpage upgrade

Auto recovery once firmware upgrade fail

Administrator Setting

Administrator password change

Idle time out

WPS button

2sec WPS Enable

>10sec Reset to Default

System monitoring

Speed and Bandwidth monitoring

Scheduling

Enable power saving

Easy access

User can type model name and access the main page.

Install wizard

Guide user to set-up Router smoothly

Berat dan ukuran EnGenius ETR9360 3G Wireless Pocket Router

Dimensions

90mm (L) x 63mm (W) x 31mm (H)

Isi Paket Produk EnGenius ETR9360 3G Wireless Pocket Router

Package Contens :

1x EnGenius ETR9360 3G Wireless Pocket Router

Ringkasan produk EnGenius ETR9360 3G Wireless Pocket Router

ETR9360 adalah 1T1R Wireless chip tunggal 11N Pocket AP / Router yang memberikan hingga 3X lebih cepat kecepatan dari perangkat 802.11g sehingga dapat mendorong kinerja yang unggul dan jangkauan nirkabel yang tak tertandingi . Dengan mudah digunakan WPS berfungsi membantu pengguna untuk memiliki koneksi nirkabel cepat .
Hanya meninggalkan power adapter di belakang dan menikmati kenyamanan yang daya tertanam membawa . Perangkat dapat tergelincir ke dalam saku Anda dengan mudah dan membangun Jaringan Nirkabel melalui xDSL atau 3G / 3.5G kartu USB di suatu tempat yang Anda inginkan .
