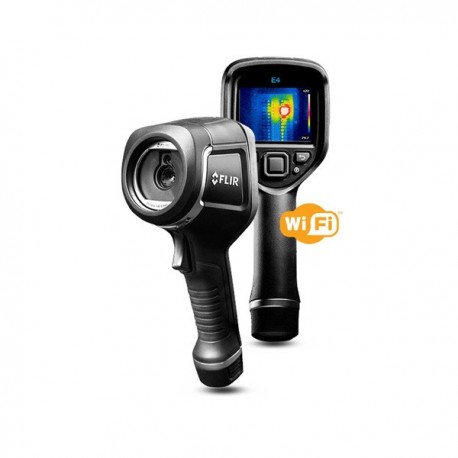

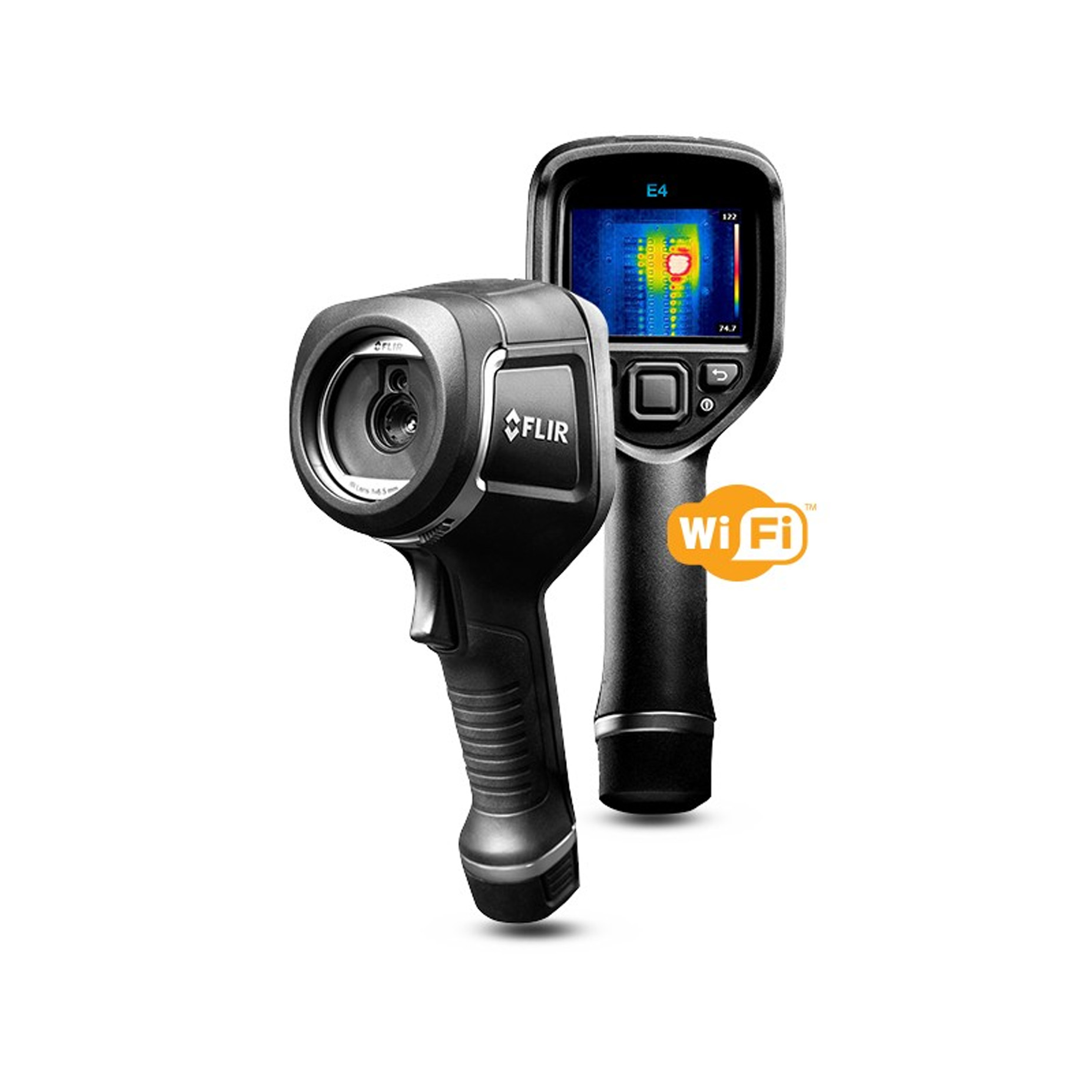

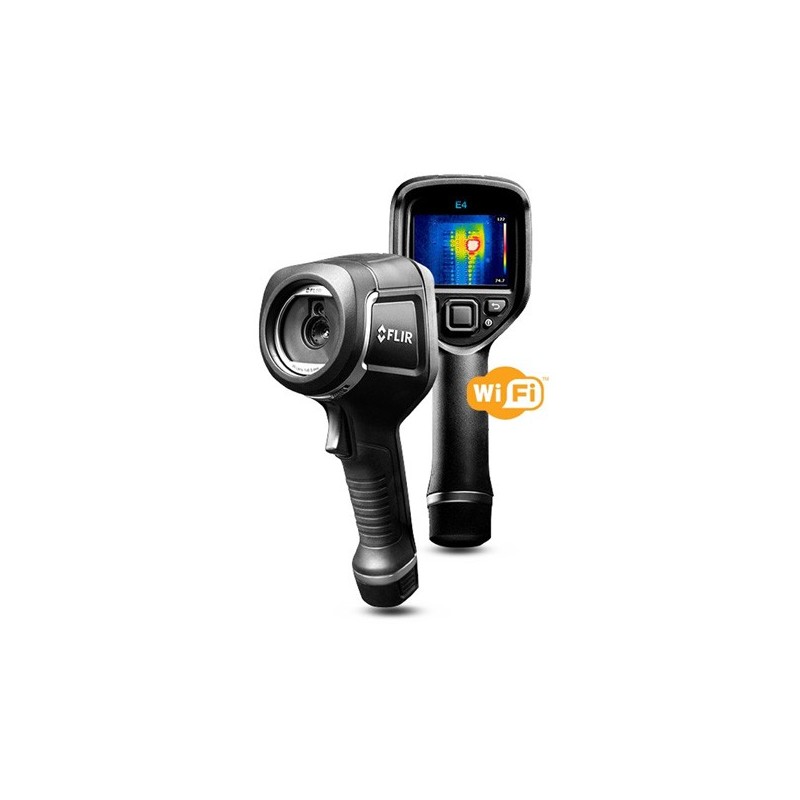

Flir E4 WiFi Infrared Camera With MSX
Kode Produk: 33112
SY0222Produk baru
Flir E4 WiFi Infrared Camera With MSX
Uncooled microbolometer, 80 × 60 pixels, 7.5–13 µm, 3.0 in. 320 × 240 color LCD
Uncooled microbolometer, 80 × 60 pixels, 7.5–13 µm, 3.0 in. 320 × 240 color LCD
Info lainnya
Spesifikasi Flir E4 WiFi Infrared Camera With MSX
| Detector Type | Uncooled microbolometer |
| IR Resolution | 80 × 60 pixels |
| Set-up Commands | Local adaptation of units, language, date and time formats |
| Spectral Range | 7.5–13 µm |
| Certifications | UL, CSA, CE, PSE and CCC |
| AC Operation | AC adapter, 90–260 VAC input, 5 VDC output to camera |
| Interface | USB Micro: Data transfer to and from PC and Mac device |
| WiFi | •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm |
| EMC | •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity |
| Operating Temperature Range | –15°C to +50°C (+5°F to +122°F) |
| Radio Spectrum | •ETSI EN 300 328 •FCC 47 CSR Part 15 •RSS-247 Issue 2 |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to +70°C (–40°F to +158°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| Emissivity table/correction | Emissivity table of predefined materials/variable from 0.1 to 1.0 |
| Encapsulation/Drop | IP 54 (IEC 60529)/2m (6.6 ft.) |
| Color | Black and gray |
| Color palettes | Black & white, iron, and rainbow |
| Display | 3.0 in. 320 × 240 color LCD |
| f-number | 1.5 |
| Field of view (FOV) | 45° × 34° |
| Focus | Focus free |
| Image Adjustment | Automatic adjust/lock image |
| Image Frequency | 9 Hz |
| Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera. |
| Minimum Focus Distance | 0.5 m (1.6 ft.) |
| Multi Spectral Dynamic Imaging (MSX) | IR image enhanced with visible camera detail |
| Picture-in-Picture | IR area on visual image |
| Spatial resolution (IFOV) | 10.3 mrad |
| Digital Camera Resolution/FOV | 640 × 480/55° × 43° |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F) |
| Area | Box with max./min. |
| Isotherm | Above/below/interval |
| Object Temperature Range | –20°C to +250°C (–4°F to +482°F) |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| Thermal Sensitivity/NETD | <0.15°C (0.27°F) / <150 mK |
| Spotmeter and Area | Center spot; box with min./max. |
| Charging system | Battery is charged inside the camera or in specific charger. |
| Charging Time | 2.5 hours to 90% capacity in camera. 2 hours in charger. |
| Power Management | Automatic shut-down |
| Battery type & operating time | Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use |
| File Formats | Standard JPEG, 14-bit measurement data included |
Berat dan ukuran Flir E4 WiFi Infrared Camera With MSX
| Packaging Size | 385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in.) |
| Camera size (L x W x H) | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in.) |
| Camera weight incl battery | 0.575 kg (1.27 lb.) |
Isi Paket Flir E4 WiFi Infrared Camera With MSX
| Package Contents | 1xInfrared camera 1xHard transport case 1xBattery (inside camera) 1xUSB cable 1xPower supply/charger with EU, UK, US and Australian plugs 1xPrinted documentation |
