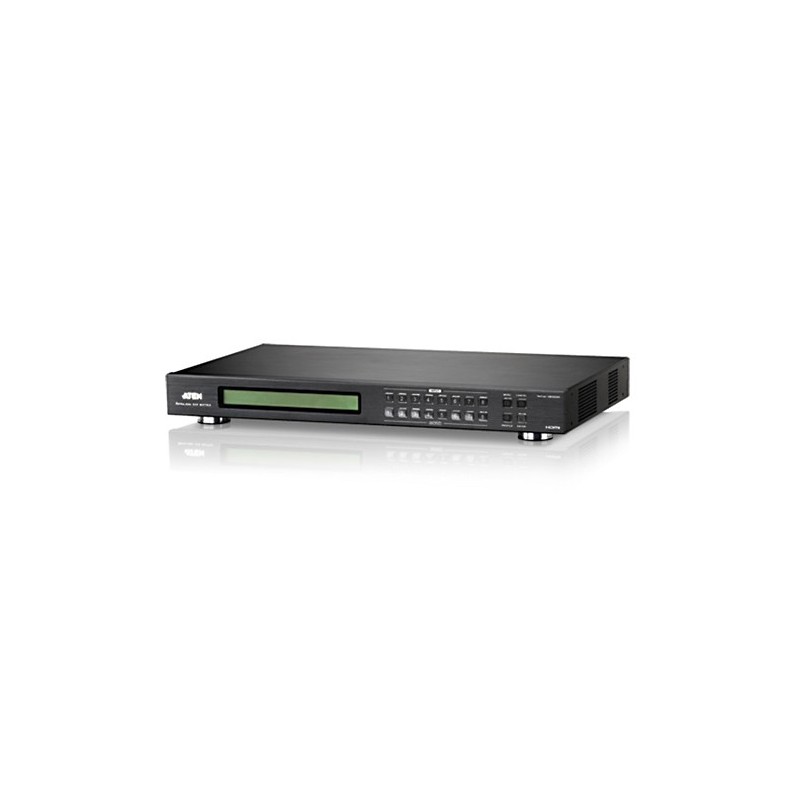

ATEN VM5808H 8 x 8 HDMI Matrix Switch with Scaler

Kode Produk: 27795

Referensi AI156

Kondisi: Produk baru

Part no : KG27795

8 x 8 HDMI Matrix Switch, Long Distance Transmission – supports up to 15 m (24 AWG), HDMI (3D, Deep color); HDCP 1.4 compatible,

Lebih detail

Kirim ke teman

Kirim ke teman

ATEN VM5808H 8 x 8 HDMI Matrix Switch with Scaler

Part no : KG27795

8 x 8 HDMI Matrix Switch, Long Distance Transmission – supports up to 15 m (24 AWG), HDMI (3D, Deep color); HDCP 1.4 compatible,

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Produk ATEN VM5808H 8 x 8 HDMI Matrix Switch with Scaler

Video Input
Interface

8 x HDMI Type A Female (Black)

Impedance

100 Ώ

Max Distance

1.8 m

Video Output
Interface

8 x HDMI Type A Female (Black)

Impedance

100 Ώ

Max Distance

15 m

Video
Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

Compliance

HDMI (3D, Deep Color)

HDCP 1.4 Compatible
Consumer Electronics Control (CEC)

Max Resolutions

Up to 1080p

Max Distance

Up to 15 m

Control

RS-232

Connector: 1 x DB-9 Female (Black)

Baud rate and protocol:
Baud Rate: 19200, Data
Bits: 8, Stop Bits:1,
Parity: No,
Flow Control: No

1 x Mini Stereo Jack Female (Black)

EDID Settings
EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)

Power

Connector: 1 x 3-Prong AC Socket

I/P Rating: 100-240 VAC; 50-60 Hz; 1.0A
Consumption: 120 VAC, 60W; 230 VAC, 62W

Environment
Operating Temp.

0-50°C

Storage Temp.

-20 - 60°C

Humidity

0-80% RH, Non-Condensing

Berat dan ukuran ATEN VM5808H 8 x 8 HDMI Matrix Switch with Scaler

Physical Properties
Housing

Metal

Weight

4.03 kg

Dimensions (L x W x H)

43.20 x 26.20 x 4.40 cm

Isi Paket Produk ATEN VM5808H 8 x 8 HDMI Matrix Switch with Scaler

Package Contents

1x VM5808H 8 x 8 HDMI Matrix Switch with Scaler

1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Mounting Kit
1x User Instructions

Ringkasan produk ATEN VM5808H 8 x 8 HDMI Matrix Switch with Scaler

Feature :

Connects any of 8 HDMI sources to any of 8 HDMI displays

Long Distance Transmission – supports up to 15 m (24 AWG)
HDMI (3D, Deep color); HDCP 1.4 compatible
Video Wall – provides up to 16 connection profiles that you can customize into layouts using the web GUI
Features a built in high-performance scaler for the best image quality
Easily switch between mulitple sources and multiple displays
Seamless Switch – provides continuous video streams, real-time switching and stable signal transmissions*
Built-in EDID wizard – provides an easy way to customized EDID settings
Configuration and Control via:
Front panel LCD display and pushbuttons
IR Remote Control
System Operation:
Browser Graphical User Interface (GUI)
Serial controller
TelnetBuilt-in bi-directional RS-232 serial port for high-end system control
Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
ESD protection for HDMI
Supports Dolby True HD and DTS HD Master audio
Consumer Electronics Control (CEC) support
Power On Detection – If an HDMI source is powered off the VM5808H automatically switches to the next powered-on source
Supports IR signals for remote control
Firmware Upgradeable
Rack Mountable

ATEN VM5808H 8 x 8 Matrix HDMI Switch solusi HDMI berbeda yang menawarkan cara yang mudah dan terjangkau untuk rute setiap dari 8 sumber video HDMI ke salah 8 menampilkan HDMI, dengan tampilan cepat dari semua koneksi port melalui panel LCD depan.

ATEN VM5808H termasuk beralih mulus yang mempekerjakan arsitektur matriks FPGA yang menjamin aliran video terus menerus, kontrol real-time dan transmisi sinyal stabil. Dengan built in performa tinggi scaler, yang VM5808H mudah mengkonversi berbagai resolusi masukan ke dalam berbagai resolusi layar output, memberikan pemirsa terbaik video dan gambar kualitas di semua layar. Switch mengintegrasikan video yang dinding fungsi dengan mudah menggunakan web GUI yang memungkinkan Anda membuat 16 profil koneksi yang dapat disesuaikan ke dalam layout dinding video yang berbeda.

ATEN VM5808H adalah solusi ideal untuk aplikasi yang memerlukan menampilkan beberapa HDMI dengan beberapa sumber HDMI menjadi mudah setup pada beberapa lokasi, seperti untuk presentasi panggung, kompetisi, pusat kontrol, dan instalasi yang membutuhkan laporan real-time.
