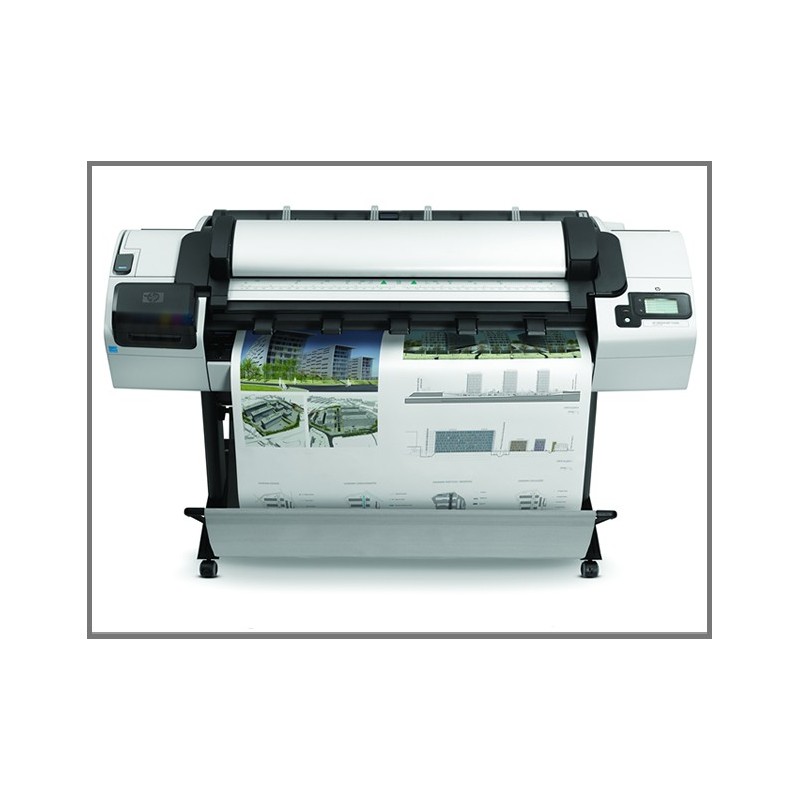

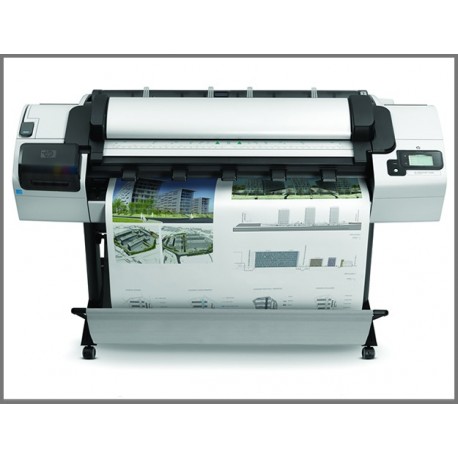

HP Designjet T2300 eMFP Printer

Spesifikasi HP Designjet T2300 eMFP Printer

Designjet model size

• (metric)111.76 cm

FunctionsPrint

• , copy, scan
• Print speed
• Print speed color line drawing (draft, A1 plain paper)80 A1 prints per hour
• Print speed black line drawing (draft, A1 plain paper)80 A1 prints per hour

Standard memory

• 32 GB

Hard Disk CapacityStandard,

• 160 GB

Printing

• Print technologyHP Thermal Inkjet
• Number of print cartridges6 (cyan, gray, magenta, matte black, photo black, yellow)
• Print Cartridge Volume DeliveredHP 726 Ink Cartridge: matte black (300 ml); HP 72 Ink Cartridge: cyan, gray,
• magenta, matte black, photo black, yellow (130 ml); cyan, gray, magenta, photo black, yellow (69 ml)

Compatible Ink Types

• Dye-based (C, M, Y, G, pK); pigment-based (mK)

Roll maximum output

• 91 m (application dependent)

Minimum line

• width0.06 mm (ISO/IEC 13660:2001(E))

Line accuracy

• +/- 0.1%

Standard connectivity

• Gigabit Ethernet (1000Base-T); EIO Jetdirect accessory slot; Hi-Speed USB 2.0 certified

Standard Printer Languages

• T2300 PostScript eMultifunction: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG,
• HP-GL/2, HP-RTL, CALS G4, HP PCL 3 GUIT2300 eMultifunction: TIFF, JPEG, HP-GL/2, HP-RTL, CALS G4, HP PCL 3 GUI

Finished output handling

• Printer: sheet feed, two automatic roll feeds, automatic roll-switching, automatic cutter;
• scanner: straight-through scan paper path for sheet and cardboard originals

Media Types supported

• Printer: bond and coated paper, technical paper, film, photographic paper, backlit,
• self-adhesive; scanner: non-abrasive paper, vellum, translucent, Mylar, recycled, blueprints, cardboard (No plywood,
• stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or
• transparencies)
• recommended media weight60 to 328 g/m²
• Standard Media SizesA4; A3; A2; A1; A0
• Roll external diameter135 mm
• Media thickness (by paper path)Up to 31.5 mil

Linear Scan Speed

• Up to 3.81 cm/sec (color, 200 dpi); up to 11.43 cm/sec (grayscale, 200 dpi)

Scan quality colour

• (best)600 dpi

Optical Scanning Resolution

• 600 dpi

Hardware Scanning Resolution

• 600 dpi

scan type

• Sheetfed, CIS (Contact Image Sensor)

Maximum Scanning Size

• 91.4 x 237.8 cm

Copier Resize

• 25 to 400%

Maximum Number of Copies

• Up to 99 copies

Compatible Operating System

• sT2300 eMultifunction: Microsoft® Windows® 7 Ultimate/Professional/Home
• Premium, Windows Vista® Ultimate/Business/Home Premium, Windows® XP (32-bit, 64-bit) Professional/Home,
• Windows® Server 2008 (32-bit, 64-bit), Windows® Server 2003 (32-bit, 64-bit); Mac OS X v 10.4, v 10.5, v 10.6;
• Citrix XenApp; Citrix XenServer
• T2300 PostScript eMultifunction: Microsoft® Windows® 7 Ultimate/Professional/Home Premium, Windows Vista®
• Ultimate/Business/Home Premium, Windows® XP (32-bit, 64-bit) Professional/Home, Windows® Server 2008 (32-bit,
• 64-bit), Windows® Server 2003 (32-bit, 64-bit); Mac OS X v 10.4, v 10.5, v 10.6; Citrix XenApp; Citrix XenServer;
• Linux (see http://www.hplip.net)

Dimensions

• (w x d x h)1771 x 1010 x 1124 mm

Weight

• 103 kg

What's in the box

• HP Designjet T2300 eMultifunction Printer; printheads; introductory ink cartridges; printer stand;
• spindle; quick reference guide; setup poster; startup software; Scan2CAD software; AutoCAD Raster Design software;
• USB cable; power cord
• Software includedHP Instant Printing, SCP reprocontrol for HP (free trial), Scan2CAD Pro (free trial), AutoCAD Raster
• Design,HP Utility for Mac and Windows

Warranty

• One-year limited hardware warranty
