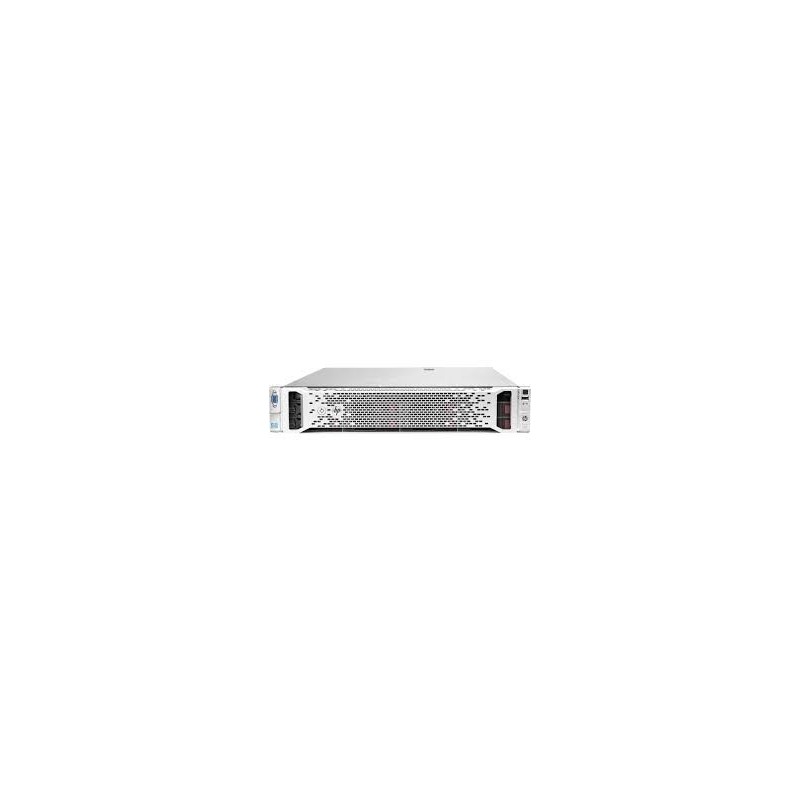

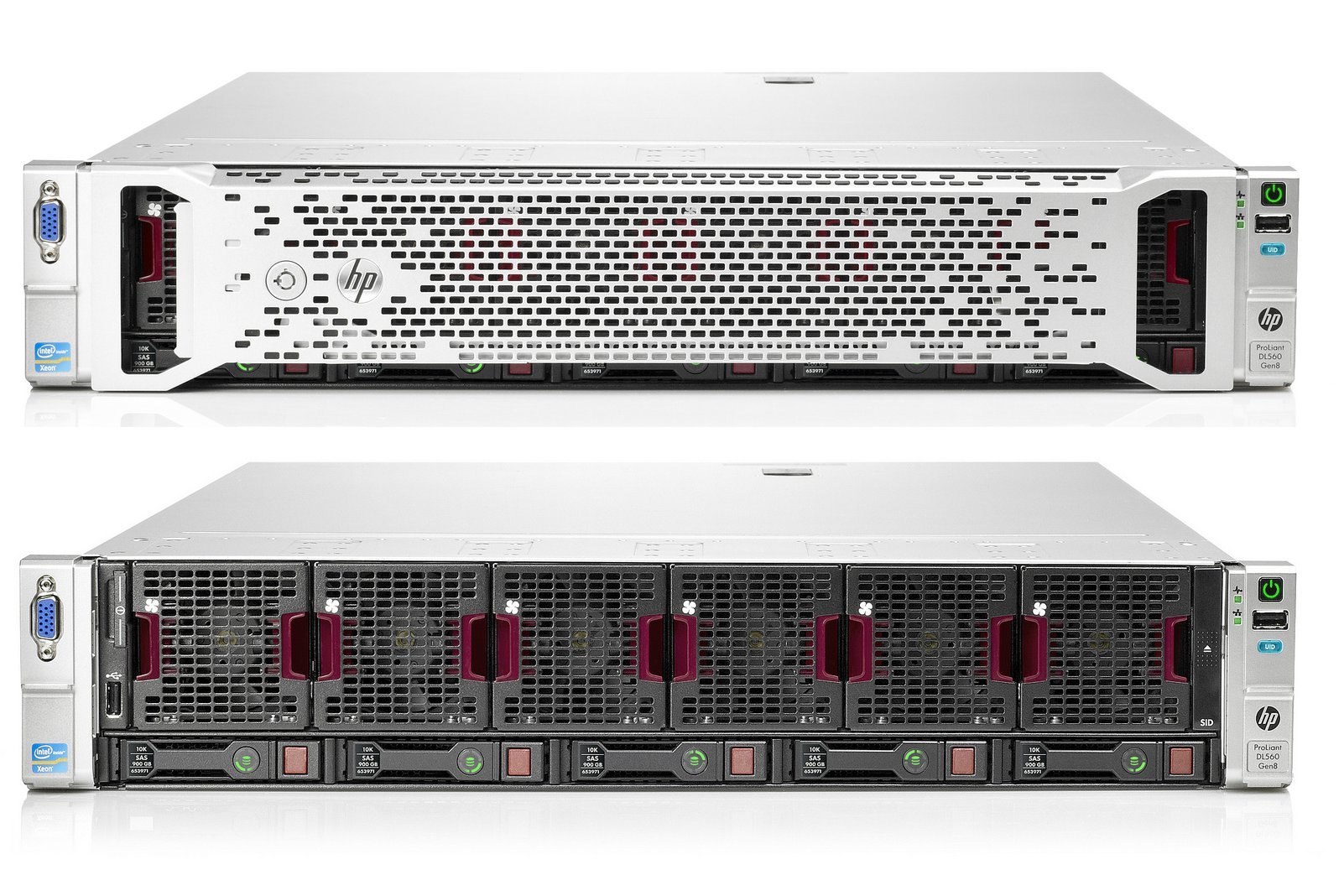

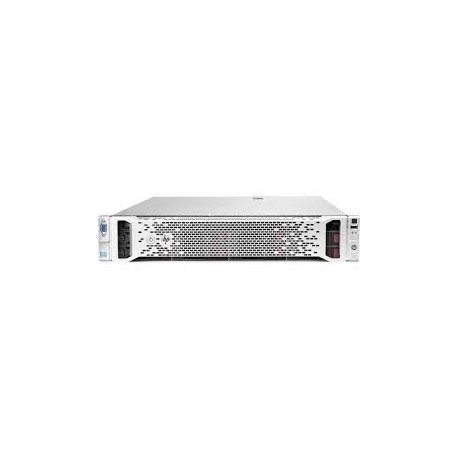

HP ProLiant DL380pG8-560

Spesifikasi HP ProLiant DL380pG8-560
Processor

• Intel Xeon Processor

#1 Processor Onboard

• Intel® Xeon® E5-2609 v2 (10M Cache, 2.5 GHz)

Chipset

• Intel® C600 Series Chipset

Standard Memory

• 4GB (1x4GB) DDR3-1600 RDIMMs

Video Type

• Integrated Matrox G200

#1 Controller
HP Smart Array P420i/ZM (RAID 0/1/1+0)
#1 Hard Drive

• Optional

#1 Optical Drive

• Optional

Standard Bays

• Standard : 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard

drive blanks

• Optional : +8 SFF (total of 16) SFF SAS/SATA HDD Bays

Interface Provided

• 7 USB ports 2.0 : 2 front, 4 rear, 1 internal (optional)  1 Serial
• 2 video (1 front, 1 back) not active simultaneously
• 1 Gb Dedicated HP iLO Remote Management Network Port
• 1 Internal Secure SD slot

Slot Provided

• 3 PCIe slots (+3 PCIe slots available with upgrade option

Networking

• HP Ethernet 1Gb 4-port 331FLR Adapter

System Fans / Coolers

• (4) (N+1 redundancy standard)

Chassis Form Factor

• 2U Rackmount Chassis

Power Supply Type

• (1) HP 460W Common Slot Gold Hot Plug Power Supply (92% Efficient)

Keyboard

• Optional

Input Device

• Optional

Monitor

• Optional

System Management

• HP iLO Management Engine (standard)

O/S Provided

• Pre-sales Request Available

Dimensions(W x H x D)

• LFF Drives : 3.44 x 17.54 x 29.50 in (8.73 x 44.55 x 74.93 cm) (H x W x D) (with bezel)

Weight

• Maximum (all LFF hard drives, power supply, and processor installed) : 27.66 kg  Minimum (one SFF hard drive, power supply, and processor installed, ODD not installed) : 18.59 kg
