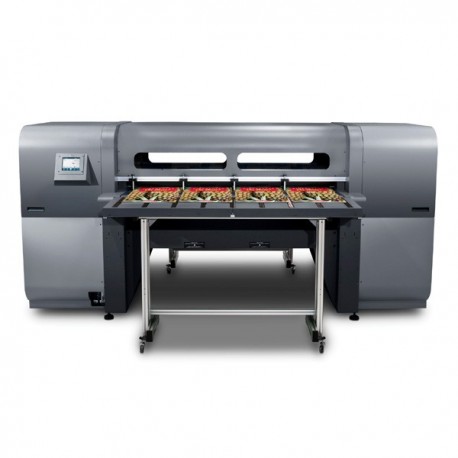

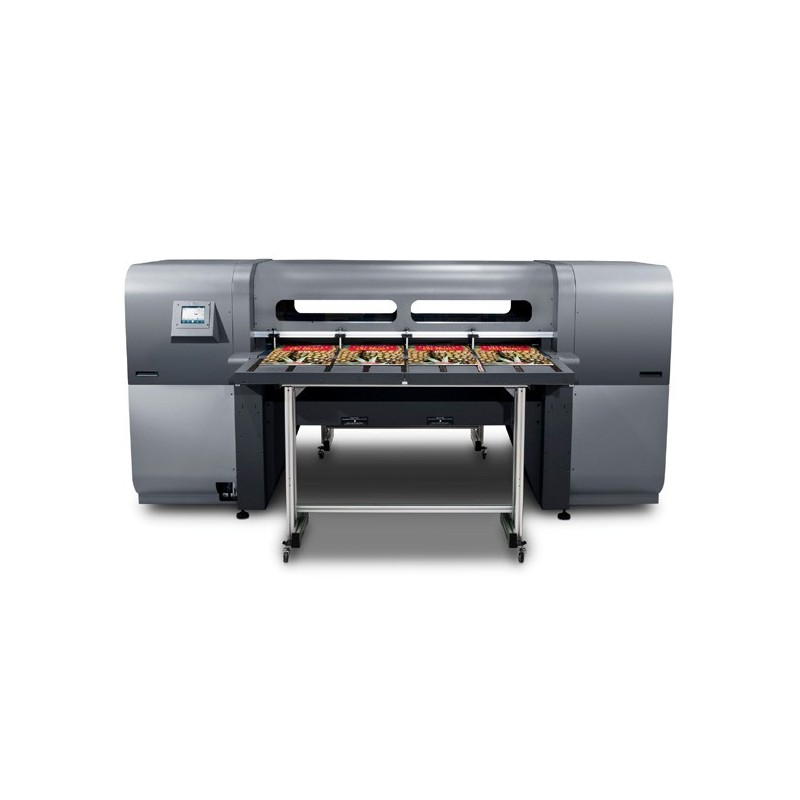

HP Scitex FB500 Industrial Printer

Spesifikasi Produk HP Scitex FB500 Industrial Printer

Technical specifications
Print modes Express

• : Up to 37 m²/hr (398 ft²/hr)

Outdoor Signage

• : Up to 29.6 m²/hr (319 ft²/hr)

Indoor Signage

• : Up to 16.4 m²/hr (177 ft²/hr)


• : Up to 8.6 m²/hr (93 ft²/hr)

White ink printing
overcoat or
undercoat11
Outdoor Signage Plus

• : Up to 7.9 m²/hr (85 ft²/hr)

Indoor Signage

• : Up to 7 m²/hr (75 ft2

/hr)

• : Up to 3.6 m²/h (39 ft2

/hr)
Print resolution Up to 1200 x 600 dpi

• Technology Piezoelectric inkjet, UV-curable inks

Ink types UV-curable, pigment-based ink
Ink cartridge
colors

• Cyan, magenta, yellow, black, light cyan, light magenta, white

(optional)

• Ink cartridge size 3 liter (cyan, magenta, yellow, black, light cyan, light

magenta) / 2 liter (white)
Media Handling Flatbed, sheet feed, and roll feed with optional
HP Scitex FB500 Roll-to-Roll Upgrade Kit.
Vacuum belt media drive for easy loading and
accurate media advanceRigid media

support
Standard input and output tables support rigid
materials up to 122 x 163 cm (48 x 64 in). The

optional HP Scitex FB500 Extension Tables
support rigid materials up to 305 x 163 cm (120


X 64 in).


Maximum sheet weight 68kg/150 lb

Roll-fed
media

support
Optional HP Scitex FB500 Roll-to-Roll Upgrade
Kit supports flexible media up to 163 cm (64 in)

wide, with a roll diameter of up to 23 cm (9 in),
up to 81 kg (180 lb) in weight
Thickness Up to 64 mm (2.5 in)

Connectivity Interfaces
(standard)
Fast Ethernet (100 Base-T) with TCP/IP protocol
and DHCP support
UV energy source Dual shuttered UV lamps. Independent user-selectable
control of shutter aperture and of three lamp power levels
Dimensions
(w x d x h) Printer
Printer: 325 x 142 x 152 cm (128 x 56 x 60 in)
Printer with standard tables

• : 325 x 282 x 152 cm

(128 x 111 x 60 in)
Shipping

• : 363 x 170 x 183 cm (143 x 67 x 72 in)

Weight Printer

• : 719 kg (1586 lb)

Printer with tables

• : 789 kg (1739 lb)

Shipping

• : 1050 kg (2315 lb)

What’s in the box HP Scitex FB500 Industrial Printer;

• standard input and output

tables

• ; HP webcam with 5 m (16 ft) USB cable; cleaning kit;

user documentation

• ; site preparation guide; power cord;

auxiliary power supply;

• installation kit

Operating
conditions
Temperature

• : 20 to 30°C (68 to 85°F)

Relative Humidity: 20-80%, non-condensing (with synthetic

media 40% min recommended to avoid static electricity;

with paper-based media 60% max recommended to avoid

buckling)

Power Maximum 2500 watts. Printing 1219 watts

Requirements Input voltage: 200 to 240 VAC, single-phase,

50/60 Hz, 12 A max

Certification Safety CE, UL, c-UL

Electromagnetic CISPR-A, FCC-A, MIC

Environmental RoHS, WEEE

Warranty One-year limited warranty

Ringkasan produk HP Scitex FB500 Industrial Printer

Loading media is fast andeasy, no masking is required

Print up to 4 sheets without masking due to the HP Scitex FB500 automatic media alignment bar, which helps you position the media, and the onboard camera, which automatically detects the media position and thickness.

Minimize interruptions

The HP Scitex FB500 automated service station maintains printhead health without daily manual maintenance. The 3-liter ink supplies5 allow you to print long runs without stopping. Control the HP Scitex FB500 Industrial Printer remotely thanks to the HP Embedded Web Server.

Fits easily in your shop,minimum space required

The compact design allows the HP Scitex FB500 to fit in smaller shops without the need of an external air compressor. In addition, its foldable tables allow you to print on large media, saving space when not used.

Rely on the HP Scitex FB500robust design

A belt-driven system and high-resolution encoder ensure precise media flow. The printer adjusts for misfiring nozzles—for consistent results6. HP Scitex Print Care maintenance assistance helps maximize uptime. And the fullyenclosed printing area reduces the risk of danger to the operator due to UV light or moving parts exposure.
