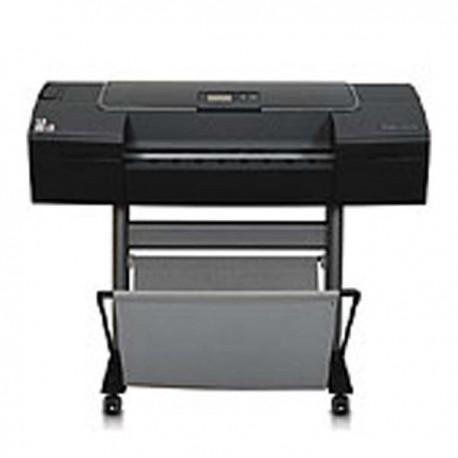

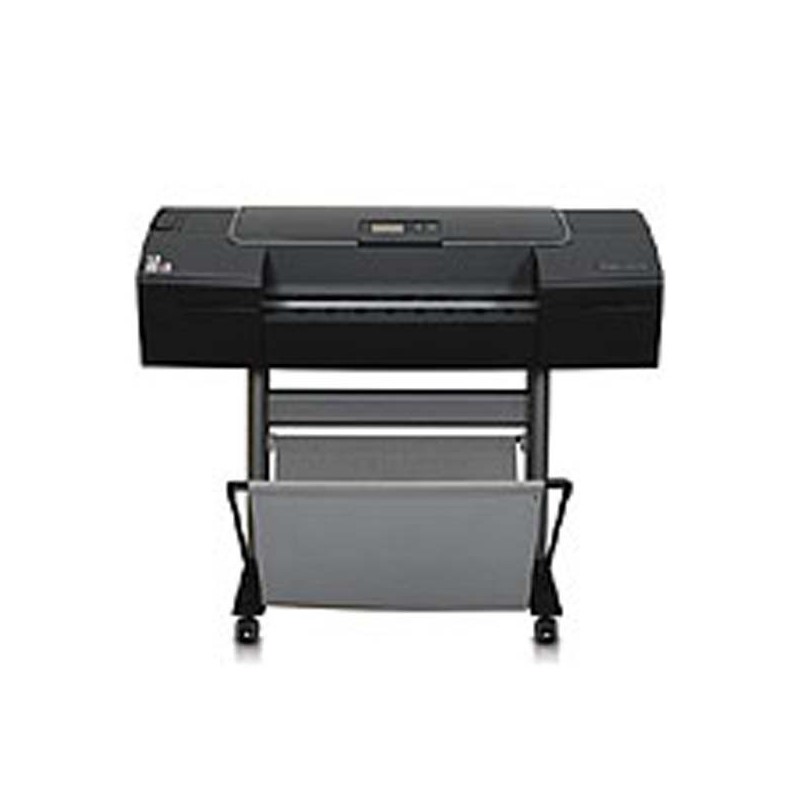

HP DesignJet Z2100

Spesifikasi produk

Model size

• Z2100 24-in: 24 in
• Z2100 44-in: 44 in

Print area/hr, max width, Draft mode, coated

• 150 ft²/hr

Print area/hr, max width, Normal mode, coated

• 72 ft²/hr

Mechanical print time, US D color image, Best mode, glossy

• 15 min/page

Mechanical print time, US D color image, Normal mode, glossy

• 7.9 min/page

Mechanical print time, US D color image, Normal mode, coated

• 4.2 min/page

Mechanical print time, US D color image, Draft mode, coated

• 2 min/page

Line accuracy

• +/- 0.2%

Color accuracy

• Median < 1.6 dE2000, 95% of colors < 2.8 dE2000

Minimum line width

• 0.002 in

Maximum black optical density

• 2.5 maximum black optical density (4 L* min) with HP Premium Instant Dry Photo Gloss media

Short term color stability

• < 1 dE2000 in less than 5 minutes

Long term print-to-print repeatability

• Average < 0.5 dE2000, 95% of colors < 1.4 dE2000

Print quality/technology
Print technology

• Scalable Printing Technology

Resolution

• Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi with maximum detail selected

Print head nozzles

• 2112

Ink cartridges

• 8 (cyan, magenta, yellow, light cyan, light gray, light magenta, matte black, photo black)

Ink types

• HP Vivera pigment inks

Ink drop size

• 4 pl (lc, lm, lg, pK), 6 pl (C, M, Y, mK)

Paper handling
Maximum roll length

• 300 ft

Document finishing
Sheetfed, roll feed, automatic cutter (cuts all media except canvas)
Media sizes, standard

• Z2100 24-in: A, B, C, D
• Z2100 44-in: A, B, C, D, E

Media types

• Photographic (satin, gloss, semi-gloss, matte); proofing (high-gloss, semi-gloss, matte); fine art printing material (canvas, smooth, textured, watercolor); self-adhesive (polypropylene, vinyl); banner and sign (display film, banner, scrim, polypropylene, Tyvek, outdoor paper); bond and coated (bond, coated, heavyweight coated, super heavyweight coated); backlit; fabric/textile

Memory/print languages/typefaces
Memory, standard

• 128 MB

Print languages, standard

• HP PCL 3 GUI

Connectivity
Connectivity, standard

• 1 Fast Ethernet (10/100Base-T) port; 1 Hi-Speed USB 2.0 certified port; 1 EIO Jetdirect accessory slot

Connectivity, optional
HP Jetdirect EIO print servers
Macintosh compatible
Yes
Compatible operating systems
Compatible Operating Systems
Windows Vista (R) (32 and 64-bit); Windows Server 2008 (32 and 64-bit); Windows XP Home and Professional (32 and 64-bit); Windows Server 2003 (32/64 bit); Mac OS X v 10.4; Mac OS X v 10.5; Novell NetWare 5.x, 6.x; Citrix XenApp; Citrix XenServer
Dimensions/weight/warranty
Product Dimensions

• Z2100 24-in: 49.7 x 27.2 x 41.2 in
• Z2100 44-in: 69.7 x 27.2 x 41.2 in

Dimensions, max. (W x D x H)

• Z2100 24-in: 49.7 x 27.2 x 41.2 in
• Z2100 44-in: 69.7 x 27.2 x 41.2 in

Product weight

• Z2100 24-in: 143 lb
• Z2100 44-in: 189 lb

Warranty

• One-year limited hardware warranty
