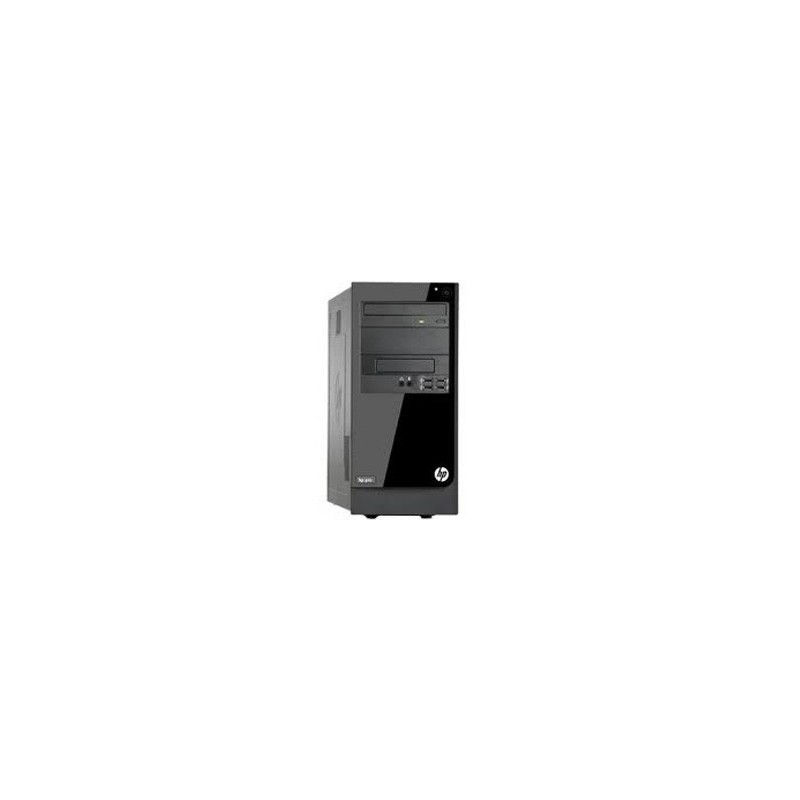

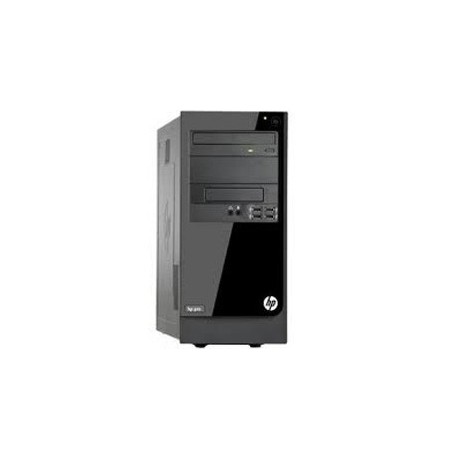

HP Pro 3340 MT PC

SPECIFICATION HP Pro 3340 MT PC

Key Specifications

Processor Type

Intel® Core i5 Pentium, Celeron (option i7, i3)

RAM Type

PC3-10600 DDR3 (1066/1333 MHz), non-ECC

Maximum RAM

8 GB

Expansion Slots

• (1) PCIe-x16
• (1) PCIe-x1
• (2) PCI
Chipset Intel

H67

Graphics Adapter

Integrated Intel HD graphics

Bays

• (2) external 5.25-inch
• (2) internal 3.5-inch

I/O Interfaces

Front: (2) USB 2.0, headphone
Rear: (6) USB 2.0, DVI-D, VGA, PS/2 keyboard and mouse,
audio in, audio out, RJ-45, serial

Preinstalled Operating
Systems

• Windows® 7 (Professional 32/64, Ultimate 64, Home Premium
64, Home Basic 64)
• FreeDos
• RedFlag Linux

System Unit

1 Access panel 657104-001
2 Front bezel for use in the People’s Republic of China 670439-AA1
* Front bezel 668571-001
3 Power supply, 300W 656721-001
* Power supply, 250W, PFC 508466-001

System boards with thermal grease, alcohol pad, and CPU socket cover

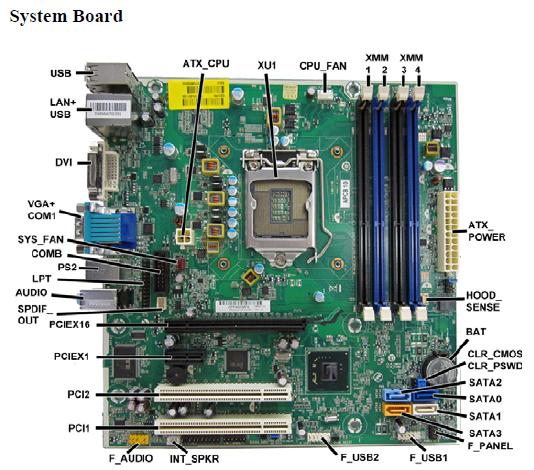

4 System board for use in 3340/3348 models 663100-001

Cables

1 Power switch/LED assembly 657105-001
2 SATA cable, 165 mm 657102-001
* SATA cable, 370 mm 656833-001
* Adapter, DVI to VGA, HF 657401-001
* DMS-59 to Dual VGA cable 463023-001
* PATA to SATA power adapter 449283-001

Mass Storage Devices (not illustrated)

16X SATA DVD±RW drive 581600-001
DVD-ROM drive 581599-001
Blu-ray BD-RW SuperMulti DL Drive 617030-001
Bezel, optical drive 657852-001
1 TB, 7200 rpm hard drive, 6G 636930-001
750 GB, 7200 rpm hard drive, 6G 639363-001
500 GB, 7200 rpm hard drive, 6G 636929-001
250 GB, 7200 rpm hard drive, 6G 636927-001

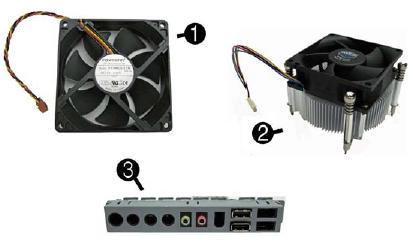

Miscellaneous Parts

1 Chassis fan 657103-001
2 Fan sink for use in models with Intel processors 667727-001
3 Front USB and I/O assembly 668572-001

* Speaker with rubber rivets 666885-001
* Card reader, 15-in-1 657099-001
* Card reader, bezel blank 657853-001
* Card reader, bezel 657854-001
* Mouse, PS2, optical, black 537748-001
* Mouse, USB, laser, black 570580-001
* Mouse, USB, optical, black 537749-001
* Rubber feet 530593-001
* Serial port kit 638815-001
* Printer port kit 638817-001
* USB powered speakers 636917-001

Standard and Optional Boards
Memory modules (PC3-10600, CL9)

* 1 GB 635802-001
* 2 GB 635803-001
* 4 GB 585157-001

Other boards

* ATI Radeon HD 6350 512-MB graphics adapter 637995-001
* ATI Radeon HD 6450 512-MB graphics adapter 637996-001
* ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16 666330-001
* nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16 632486-001
* nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1 632827-001
* nVidia GeForce GT405 512-MB graphics adapter 657108-001
* Intel Gigabit NIC, includes bracket 490367-001

Intel Core i7 processors (include thermal material)

* 2600, 3.4 GHz, 8-MB L3 cache 638632-001

Intel Core i5 processors (include thermal material)

* 2500, 3.3 GHz, 6-MB L3 cache 638631-001
* 2400, 3.1 GHz, 6-MB L3 cache 638630-001

Intel Core i3 processors (include thermal material)

* 2120, 3.3 GHz, 3-MB L3 cache 638629-001
* 2100, 3.1 GHz, 3-MB L3 cache 638628-001

Intel Pentium Dual-Core processors (include thermal material)

* G850, 2.9 GHz, 3-MB L3 cache 655973-001
* G840, 2.8 GHz, 3-MB L3 cache 655972-001
* G620, 2.6 GHz, 3-MB L3 cache 655971-001

Intel Celeron Dual-Core processors (include thermal material)

* G540, 2.5 GHz, 2-MB L3 cache 666892-001
* G530, 2.4 GHz, 2-MB L3 cache 666891-001
* G440, 1.6 GHz, 1-MB L3 cache 666890-001
