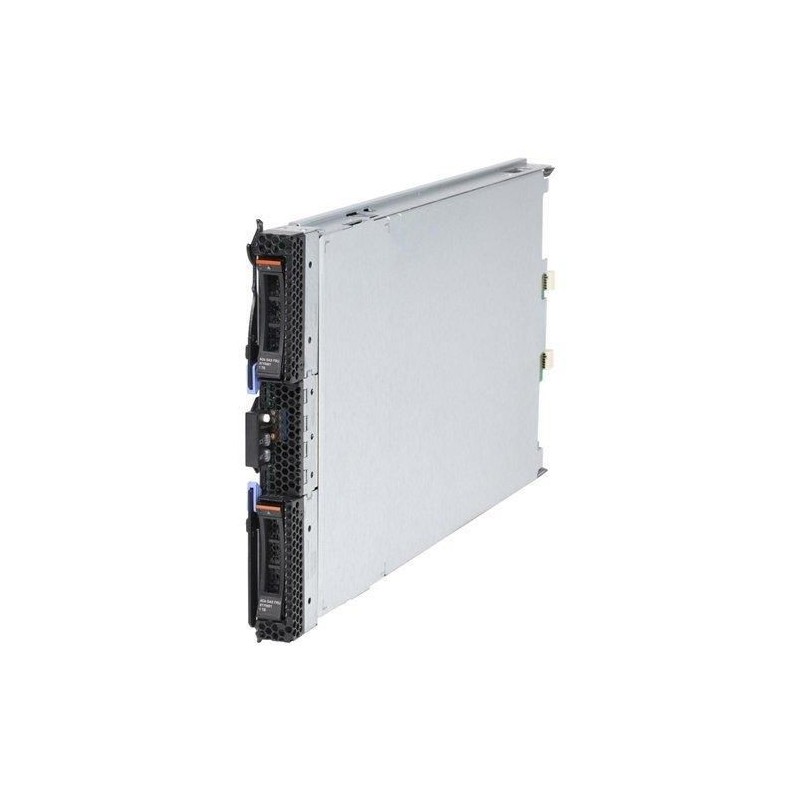

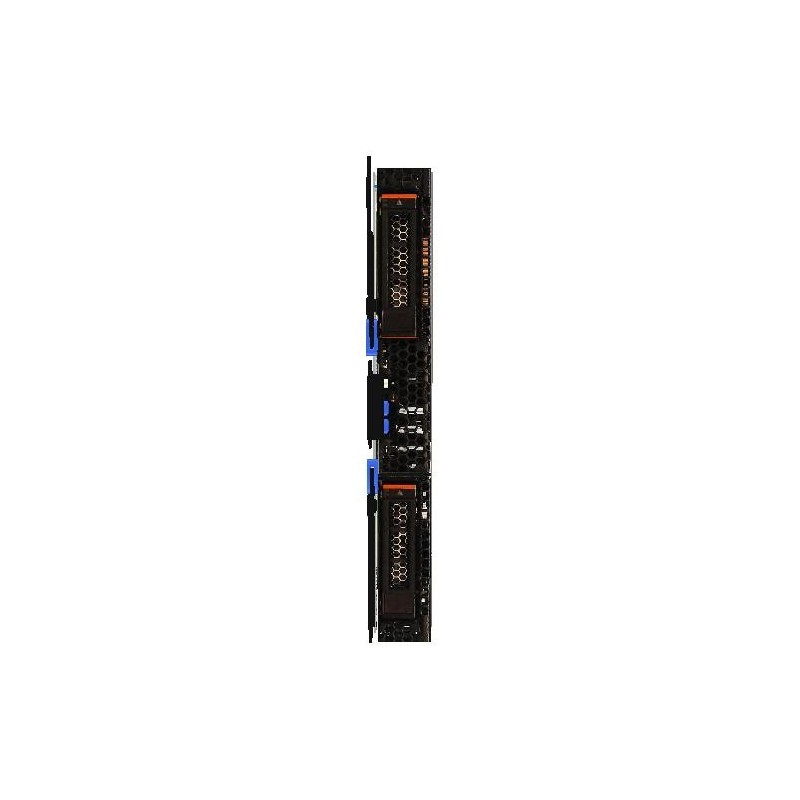

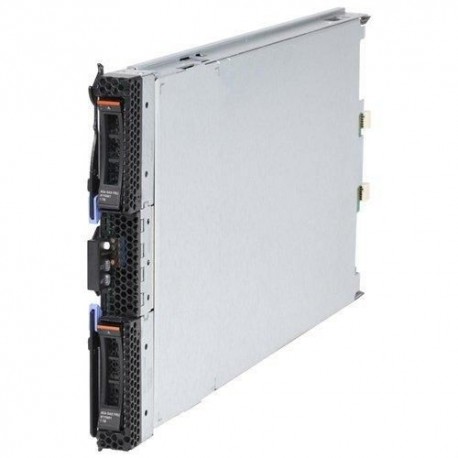

IBM BladeCenter HS23 Xeon 8C E5-2650L

Spesifikasi IBM BladeCenter HS23 IBM BladeCenter HS23 Xeon 4C E5-2603 :

Form factor/height

• Single-width (30 mm)

Processor (max)

• Intel Xeon processor E5-2600 v2 product family, with up to 12 cores, processing up to 24 simultaneous threads

Number of processors (std/max)

• 1/2

Cache (max)

• 30 MB

Memory (max)

• 512 GB (assuming 32 GB DIMMs), 16 DIMM sockets - VLP Registered ECC DDR3, memory mirroring and sparing supported

Expansion slots

• 1 CIOv slot (standard PCIe daughter cards) and 1 CFFh slot (high-speed PCIe daughter card)

Disk bays (total/hot-swap)

• 2 hot-swappable HDDs (SATA/SAS) or SSDs

Maximum internal storage

• 2 TB

Network interface

• Integrated Virtual Fabric for BladeCenter, Emulex BE3R Dual 10 Gb/1 Gb

RAID support

• RAID-0, -1

System management

• Unified Extensible Firmware Interface (UEFI), IBM Integrated Management Module, Predictive Failure Analysis, optional embedded hypervisor for virtualization, IBM Systems Director Active Energy ManagerT, light path diagnostics, IBM Systems Director, IBM Server Guide, UpdateXpress, Dynamic System Analysis with Integrated RT Diagnostics, BladeCenter Open Fabric Manager

Operating systems supported

• Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise, VMware

Limited warranty

• 3-year customer replaceable unit and onsite limited warranty, next business day 9x5, service upgrades available
