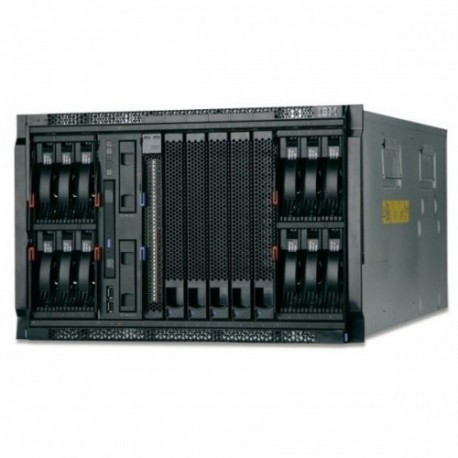

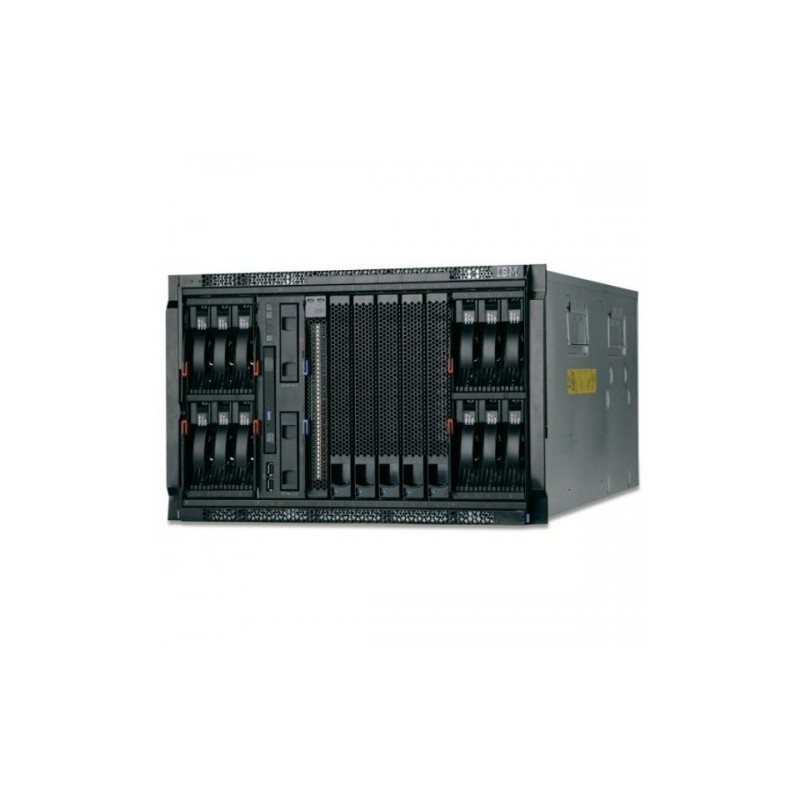

IBM BladeCenter S 88861TA Chassis

spesipikasi produk IBM BladeCenter S 88861TA Chassis

Form factor

• Rack/7U incorporates blade server bays and hot-swap storage high-availability midplane

Blade bays

• Up to six 1- or 2-processor, and up to three 4-processor

Disk bays

• Up to two Disk Storage Modules supporting either 3.5-inch or 2.5-inch hard disk drives (HDDs)

3.5-inch Disk Storage Module

• up to six 3.5-inch SAS, Nearline SAS or SATA, or an intermix of the disks

2.5-inch Disk Storage Module

• up to twelve 2.5-inch SAS HDDs

Media

• Optional DVD multi-burner accessible from each blade server

Switch modules

• 4 switch module bays

Power supply module

• Up to 4 (hot-swap and redundant 950 W/1450 W with load-balancing, auto-sensing and failover capabilities)

Cooling modules

• 4 hot-swap and redundant blowers standard

Systems management hardware

• 1 management module standard

I/O ports

• Keyboard, video, mouse, Ethernet, USB

Systems management software

• Open and easy systems management and deployment tools

Predictive failure analysis

• Hard disk drives, processors, blowers, memory

Light path diagnostics

• Blade server, processor, memory, power supplies, blowers, switch module, management module, hard disk drives and expansion card

Limited warranty

• 3-year customer replaceable unit and onsite limited warranty

Integrated storage

• Support for hot-swap SAS or hot-swap SATA disks

External storage

• Support for IBM System Storager solutions (including DS and NAS family of products) and many widely adopted non-IBM storage offerings
