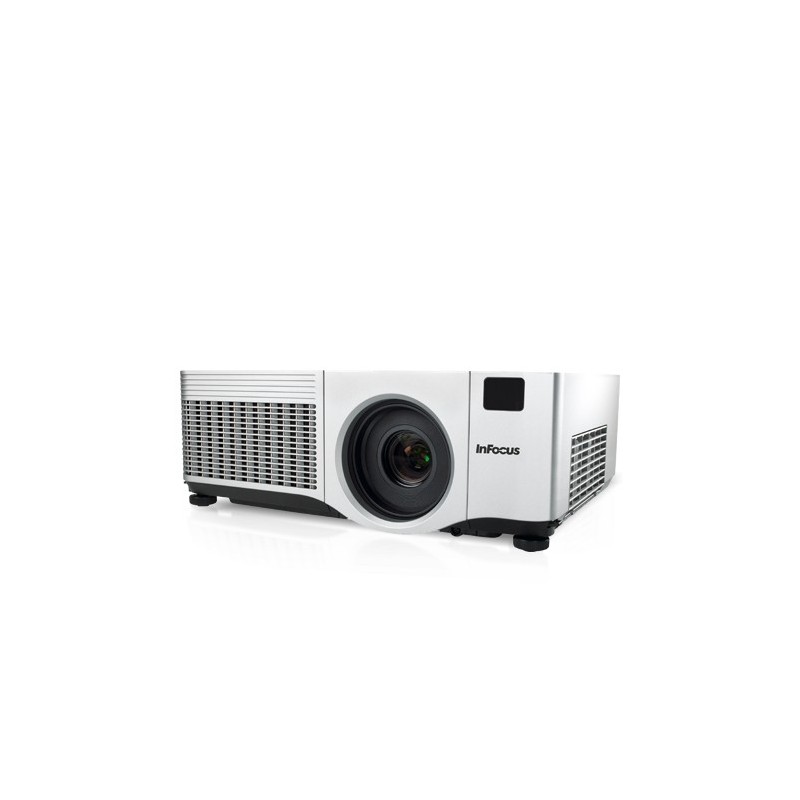

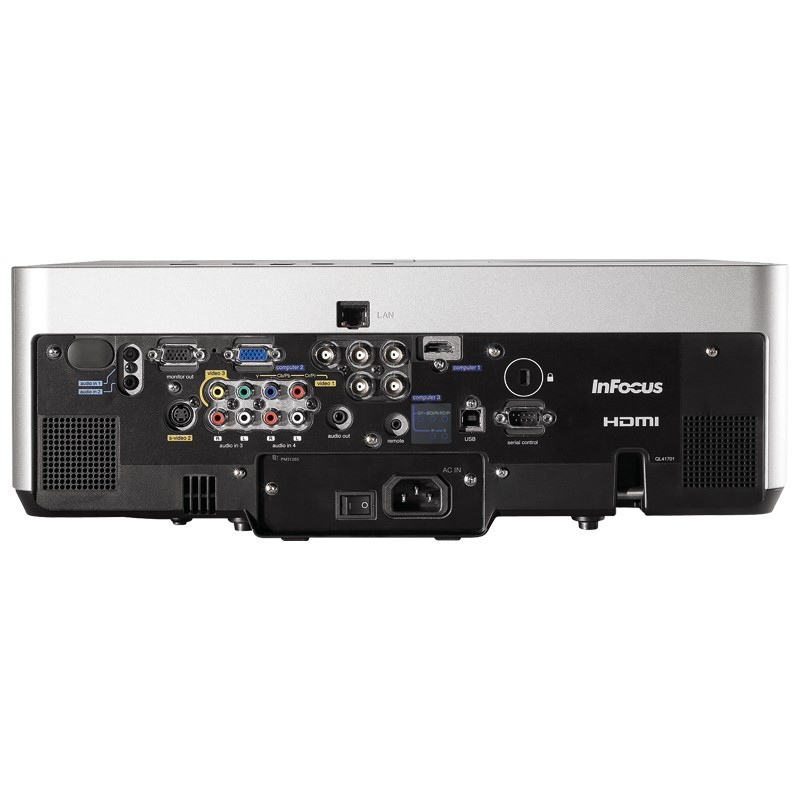

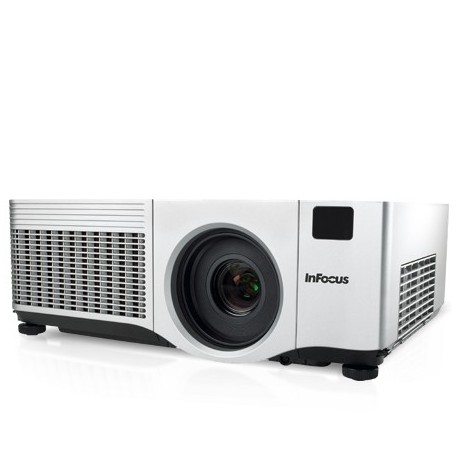

InFocus IN5102 ANSI LUMENS 4000 XGA LCD 2 Years

Spesifikasi Produk InFocus IN5102 ANSI LUMENS 4000 XGA LCD 2 Years

Display Specifications
Aspect Ratio (Native)

• 4:3

Aspect Ratio (Supported)

• 4:3, 5:4, 16:9, 16:10

Resolution (Native)

• XGA (1024 x 768)

Resolution (Max)

• UXGA (1600 x 1200)

Contrast Ratio

• 1000:1

Closed Captioning

• Yes

Computer Compatibility

• PC, Mac

Display Technology

• 3 LCD

Number of Colors

• 16.7 million

Projection Presets

• Presentation, Video, Bright, Whiteboard, User (3)

Projector Placement

• Front, Ceiling, Rear

Video Compatibility

• SDTV / NTSC / PAL and SECAM (480i/576i), EDTV (480p/576p), HDTV (720p/1080i/1080p)

Audio
Speakers

• 8W (2 x 4W)

Environmental
Audible Noise (Eco, dBA)

• 30

Audible Noise (High, dBA)

• 32

Maximum Altitude (feet)

• 7500

Maximum Altitude (meters)

• 2286

Operating Temperature (C)

• 10 - 35°

Operating Temperature (F)

• 50 - 95°

Lamp Specifications
Brightness (Eco)

• 3200 lumens

Brightness (High)

• 4000 lumens

Lamp Hours (Eco)

• 3000

Lamp Hours (High)

• 2000

Lamp Wattage (Eco)

• 220

Lamp Wattage (High)

• 275

Lens / Optical Specifications
Digital Keystone Correction (Horiz)

• +/- 20%

Digital Keystone Correction (Vert.)

• +/- 40%

Focus Type

• Manual

H-Sync Max (kHz)

• 91

H-Sync Min (kHz)

• 15

Lens Shift

• Manual

Lens Shift: Horz (max)

• +/- 20%

Lens Shift: Horz (min)

• +/- 20%

Lens Shift: Vert (max)

• -10%

Lens Shift: Vert (min)

• -50%

Lens Type

• Standard

Lens Zoom Type

• Manual

Lens Zoom Ratio

• 1.20:1

Optional Lenses

• Yes

Optional Lens 1 Name

• Fixed Short Throw

Optional Lens 1 Throw Ratio

• 0.8:1

Optional Lens 1 Zoom

• 1.0:1

Optional Lens 2 Name

• Short Throw

Optional Lens 2 Throw Ratio

• 1.2 ~ 2.0

Optional Lens 2 Zoom

• 1.6:1

Optional Lens 3 Name

• Long Throw

Optional Lens 3 Throw Ratio

• 1.9 ~ 3.9

Optional Lens 3 Zoom

• 1.2:1

Optional Lens 4 Name

• Ultra Long Throw

Optional Lens 4 Throw Ratio

• 3.9 ~ 7.4

Optional Lens 4 Zoom

• 1.85:1

Maximum Image Size (width, cm)

• 604

Maximum Image Size (width, inches)

• 238

Minimum Image Size (width, cm)

• 51

Minimum Image Size (width, inches)

• 20

Projection Distance (max, feet)

• 43.75

Projection Distance (max, meters)

• 13.3

Projection Distance (min, feet)

• 3.75

Projection Distance (min, meters)

• 1.1

Throw Ratio

• 1.5 ~ 1.81

V-Sync Max (Hz)

• 120

V-Sync Min (Hz)

• 50

Physical Attributes
Product Dimensions (W x D x H) (in.)

• 16.5 x 12.4 x 5.1

Product Dimensions (W x D x H) (mm)

• 420 x 315 x 130

Product Weight (kg)

• 7.1

Product Weight (lbs.)

• 15.7

Security

• Kensington Lock

Shipping Dimensions (W x D x H) (in.)

• 21.6 x 18.5 x 9.2

Shipping Dimensions (W x D x H) (mm)

• 549 x 469 x 233
