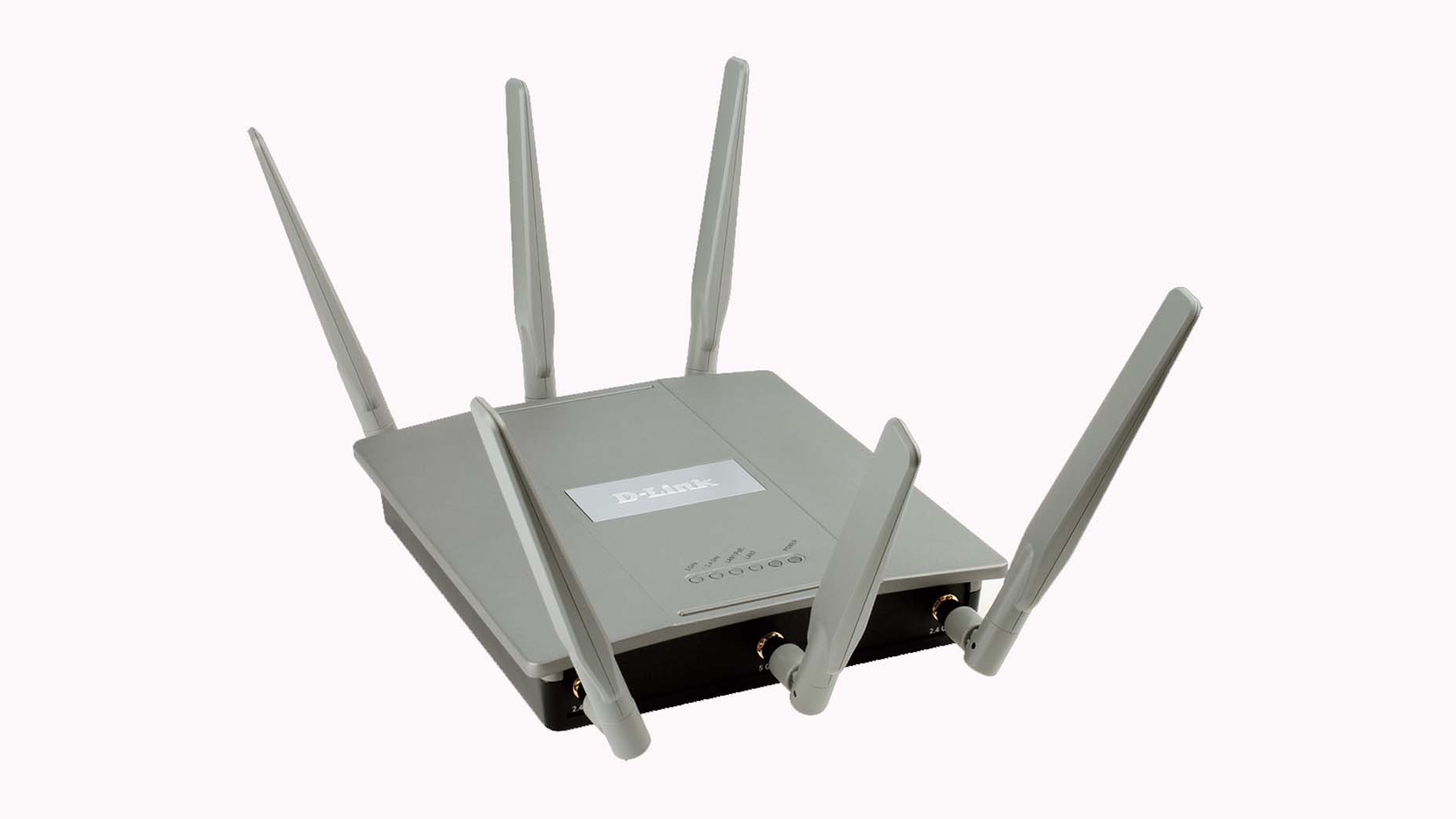

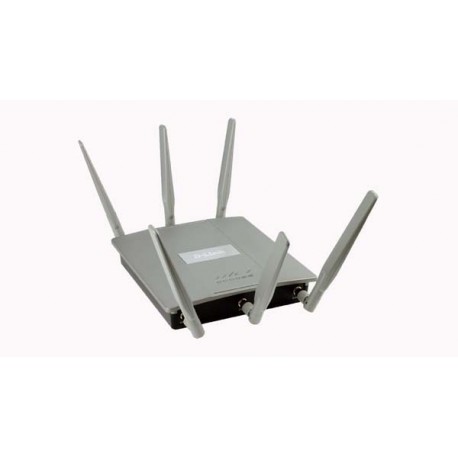

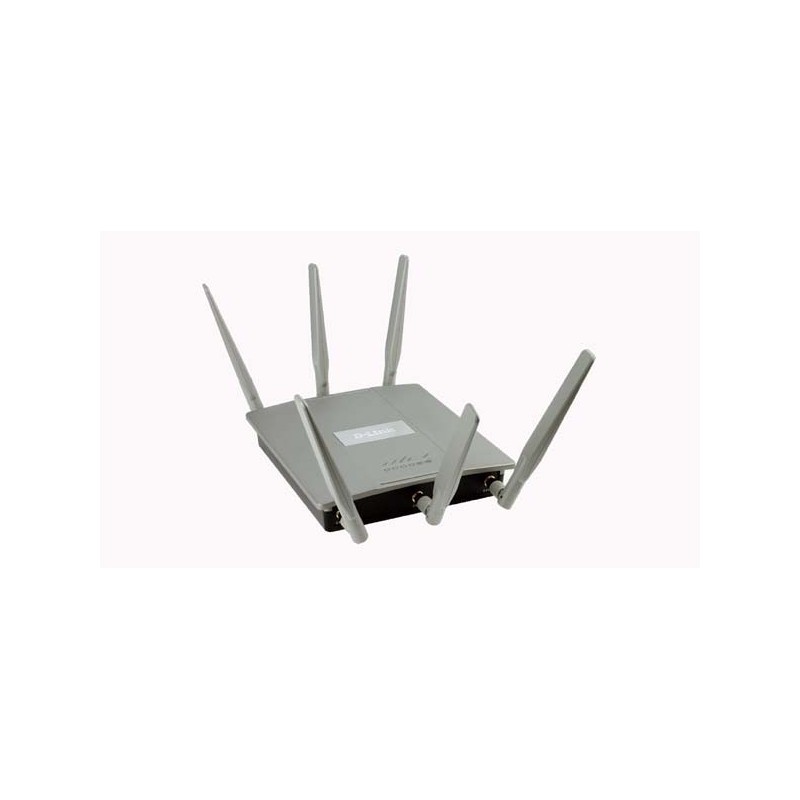

Dlink DAP-2695/ESG Wireless AC1750 Simultaneous Dual-Band PoE Access Point

Spesifikasi Dlink DAP-2695/ESG Wireless AC1750 Simultaneous Dual-Band PoE Access Point

High-performance Connectivity

• IEEE 802.11ac wireless1
• Up to 1300+450 Mbps1
• Gigabit LAN port

Made for Business-class Environments

• Simultaneous dual-band connectivity for increased network capacity
• Band steering
• Console port for debugging
• Rugged metal housing
• Plenum-rated chassis
• Ideal for indoor deployment
• Traffic control/QoS
• Internal RADIUS server
• Web redirection

Trusted Security Features

• WPA/WPA2 - Enterprise/Personal
• WPA2 - PSK/AES over WDS
• MAC address filtering
• Network Access Protection (NAP)
• ARP spoofing prevention
• WLAN partition

Convenient Installation

• Supports 802.3at PoE+ Power over Ethernet
• Wall mounting brackets included

General

Device Interfaces

• 802.11a/b/g/n/ac wireless
• RJ45 console port
• 2 Gigabit LAN Port (One port supporting 802.3at PoE)

LEDs

• Power
• LAN
• 2.4 GHz wireless
• 5 GHz wireless

Standards

• IEEE 802.11a/b/g/n/ac1
• IEEE 802.3u/ab/af

Wireless Frequency Range

• 2.4 GHz band: 2.4 GHz to 2.4835 GHz
• 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz3

Antennas

• Three 4 dBi for 2.4 GHz
• Three 6 dBi for 5 GHz

Functionality

Security

• WPA-Personal
• WPA-Enterprise
• WPA2-Personal
• WPA2-Enterprise
• WEP 64/128-bit encryption
• SSID broadcast disable
• MAC address access control
• Network Access Protection (NAP)
• Internal RADIUS server

Network Management

• Telnet
• Secure Telnet (SSH)
• HTTP
• Secure HTTP (HTTPS)
• Traffic control
• SNMP
• D-View module - private MIB
• AP Manager II
• AP Array

Physical

Dimensions

• 190 x 36.5 x 198.8 mm (7.48 x 1.44 x 7.82 inches)

Weight

• 1140 grams (2.52 lbs) with antennas

Operating Voltage

• 48 V DC +/- 10% (power adapter not included)
• PoE+ (802.3at)

Maximum Transmit Output Power2

• FCC at 2.4 GHz: 26 dBm/ETSI: 15 dBm (Dual Chain)
• FCC at 5 GHz: 26.5 dBm/ETSI: 23.5 dBm (Dual Chain)

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC
• IC
• CE
• UL
• Wi-Fi® Certified

Ringkasan Produk Dlink DAP-2695/ESG Wireless AC1750 Simultaneous Dual-Band PoE Access Point

DAP-2695 adalah titik akses dalam ruangan berkekuatan tinggi serbaguna yang dirancang untuk kondisi yang keras, ini adalah solusi ideal untuk membuat titik panas atau memperluas jaringan nirkabel di dalam ruangan.
