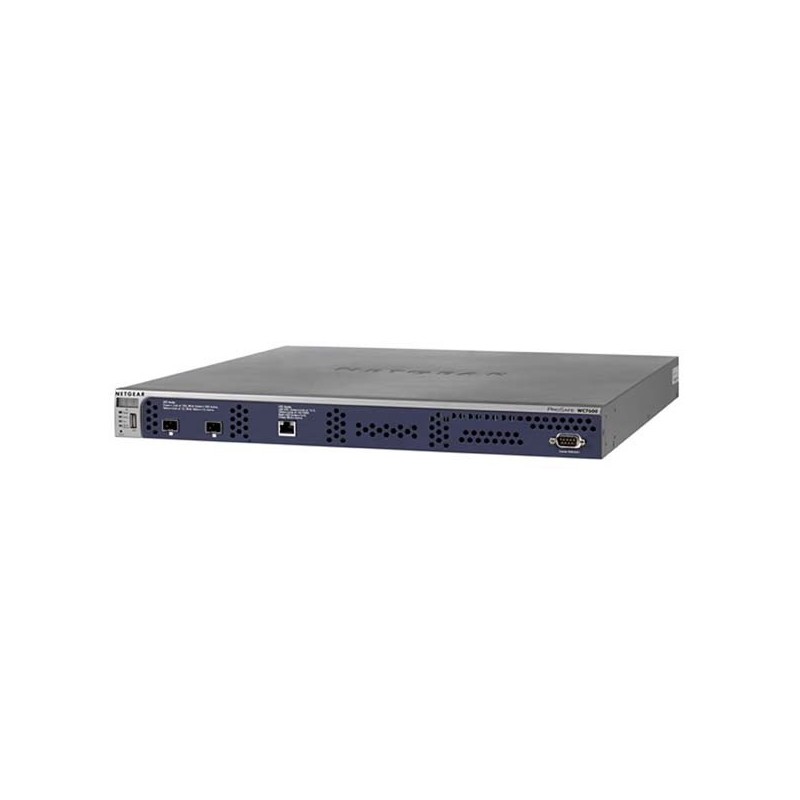

Netgear ProSafe WC7600 High Performance Wireless Controller

Spesifikasi Netgear ProSafe WC7600 High Performance Wireless Controller

Supported AP Models	WAC730 ProSafe 802.11ac 3x3 (1.7 Gbps) Wireless Access Point WAC720 ProSafe 802.11ac 2x2 (1.3 Gbps) Wireless Access Point WNDAP660 ProSafe 802.11n 3x3 (900 Mbps) Wireless Access Point WND930 Outdoor Dual Band 802.11n (600 Mbps) Wireless Access Point WNDAP360 ProSafe Dual Band 802.11n (600 Mbps) Wireless Access Point WNDAP350 ProSafe Dual Band 802.11n (600 Mbps) Wireless Access Point WN370 ProSafe 802.11n (300 Mbps) Wall Mount Wireless Access Point WNAP320 ProSafe 802.11n (300 Mbps) Wireless Access Point WNAP210 ProSafe 802.11n (300 Mbps) Wireless Access Point
Supported Modes	Wireless-A/B/G/N/AC Main Functionality Wireless Controller
Number of Access Points	50 per controller (Default support of 2 with optional license to support up to 50 AP’s)
Maximum AP Supported per Controller	2 (default) 50 with Incremental 10-AP License Upgrades (WC10APL-10000S)
Redundancy Support of Wireless Controller	Stackable up to 3 controllers for a total support of 150 Access Points Supporting N + 1 redundancy with a maximum configuration of 3 active controller and 1 standby
Maximum Profile Groups per Controller	8
Each access point belongs to only one profile group	Each access point belongs to only one profile group Maximum Security Profiles (SSID) per Profile Group 8 per radio (2.4 GHz; 5 GHz) Maximum Security Profiles (SSID) per Controller 128 Maximum Rogue APs Detectable per Controller 512 Maximum Floorplans per Controller 3 (default) Additional floorplans possible with USB local storage (up to a maximum of 18 floorplans)
Number of Captive Portals per Controller	1
Maximum Clients per AP	WNAP210 support up to 32 clients WNAP320 support up to 64 clients WN370 support up to 64 clients All other AP’s support up to 128 clients
Maximum Clients per Controller	None other than maximum clients per AP L2 Mobility L2 fast roaming support between the APs L3 Mobility L3 fast roaming support with encrypted tunnelling between the APs and the controller
Maximum VLANs per Controller	64 VLANs for SSIDs 1 configurable management VLAN DHCP Server/Relay
Integrated DHCP server	Multiple DHCP server/pool can be added for different VLANs (up to 64)
VLANs for the Wireless Controller	One management VLAN (configurable VLAN ID)
VLANs Access Points / Multiple SSIDs	64 VLANs
VLANs Deployment	The Wireless Controller must have IP connectivity with the access points through the management VLAN. If the Controller and the APs are on different management VLANs, external VLAN routing must allow IP connectivity between the Controller and the APs.
Integrated Deployment Planning	Hierarchical view of the network: Floor maps upload and floor maps dimensions input Automated RF planning algorithm: Computed number of APs required to cover a floor plan Theoretical cloud coverage indicated for each AP for positioning assistance on the floor plan RF Monitoring Coverage computing per floor plan Alert for any detected coverage holes with mitigation options with neighboring APs Rogue AP/blacklisted clients triangulation
Automatic Channel Allocation	Channel automatic distribution to reduce interference Auto-channel allocation takes into consideration the AP location, interferences, and neighborhood maps for each AP Modifiable list of corporate channels to be used Scheduled mode for auto-channel allocation Automatic mode available in case of high level of interference
Automatic Power Control	Optimum transmit power determination based on coverage requirements Automatic power control mode available Neighborhood scan of RF environment to minimize neighboring AP interference and leakage across floors Coverage Hole Detection
Automatic mode	Down APs or compromised RF environment detection with alerts Self healing: Automatic neighboring AP power increase to fill in for coverage losses Load Balancing AP load monitoring and overload prevention Client redirection to lightly loaded neighboring APs Fast Roaming Seamless rapid mobility across VLAN and subnets Includes 802.11i pre-auth and fast roaming Fast roaming support across L2, and L3 for video, audio and voice over wireless client
Quality of Service	WMM Quality of Service WMM (802.11e) prioritizes traffic for both upstream traffic from the stations to the access points (station EDCA parameters) and downstream traffic from the access points to the client stations (AP EDCA parameters) WMM Queues in Decreasing Order of Priority Voice: The highest priority queue with minimum delay, which makes it ideal for applications like VoIP and streaming media Video: The second highest priority queue with low delay is given to this queue. Video applications are routed to this queue Best effort: The medium priority queue with medium delay is given to this queue. Most standard IP application will use this queue Background: Low priority queue with high throughput. Applications, such as FTP, which are not time-sensitive but require high throughput can use this queue
WMM Power Save Option	WMM power save helps conserve battery power in small devices such as phones, laptops, PDAs, and audio players using IEEE® 802.11e mechanisms
Rate Limiting	Rate limit per SSID set as a percentage of total available bandwidth
Client Authentication Protocols	Open, WEP, WPA/WPA2-PSK 802.11i/WPA/WPA2 Enterprise with standard interface to external AAA/RADIUS Server Local ACLs (512 MAC) MAC ACLs based on local AAA Server or external Radius Server Distinct AAA Server per SSID Yes
RADIUS Accounting Protocol	Per Client tracking for Bytes Tx/Rx and Connect/disconnect time LDAP-based Authentication Standard interface to external LDAP server/Microsoft® Active Directory Server Integrated AAA Server Local database authentication based on WC7520 internal AAA Server Guest Access Integrated captive portal available for client authentication in a security profile Password based authentication mode: Local user store available, receptionist assigned user name/password External Radius server mode: External RADIUS authentication for the captive portal clients Open authentication mode: Guest auto registration with email address Extraction of logs of guest activity
Captive Portal	Configurable portal page, including image files
Rogue Access Points	Rogue AP definition: AP with radio SSID observed by any of the managed APs and seen transmitting on same L2 wired network Detection and mapping of up to 512 rogue APs
Monitoring Summary	Summary of managed access points status, rogue access points detected, wireless stations connected, Wireless Controller information and wireless network usage
Managed Access Points	AP status for the managed access points and details that includes configuration settings, current wireless settings, current clients and detailed traffic statistics
Rogue Access Points	Rogue access points reported Rogue access points in same channel Rogue access points in interfering channels
Wireless Clients	Clients statistics and details per AP, per SSID, per floor, per location Blacklisted clients, roaming clients
Wireless Network Usage	Network usage statistics display plots of average received/transmitted network traffic per managed access point. Heat Maps Live coverage and visualization heat maps Location visualization and device tracking
DHCP Leases	DHCP details for wireless clients
Management Interface	HTTP, SNMP v1/v2c, telnet, Secure Shell (SSH)
Logging and Reporting	If available syslog server on the network, the Wireless Controller can send all logs. Logs are also available on the GUI and ready to download (log export file) Email alerts for events as per configuration to multiple email addresses Diagnostics
Managed access points ping	Maintenance Save/restore configuration, restore to factory defaults, admin password change, add user (read-only), firmware upgrade via Web browser for the Wireless Controller and the managed access points Dual Boot Image Supported SNMP SNMP v1/v2c IEEE AND IETF RFC STANDARDS Wired IEEE Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T IEEE 802.1Q VLAN tagging Wired IEEE Standards IEEE 802.11a, 802.11b, 802.11g, 802.11n WMM (from 802.11e) RFC - System Facilities RFC 1001 Protocol standard for a NetBIOS service on a TCP/UDP transport: Concepts and methods' RFC 1002 Protocol standard for a NetBIOS service on a TCP/UDP transport: Detailed specifications RFC 1155 Management information for TCP/IP networks RFC 1305 Network Time Protocol (Version 3) Specification, Implementation and Analysis RFC 2131 DHCP RFC 3768 Virtual Router Redundancy Protocol (VRRP) RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC - Security and AAA WPA-PSK, WPA2-PSK RFC 1321 MD5 Message – Digest Algorithm RFC 1851 Triple DES Algorithm RFC 2246 TLS Protocol Version 1.0 RFC 2404 HMAC-SHA-1-96 RFC 3280 Internet X.509 PKI Certificate and CRL certificate RFC 3377 Lightweight Directory Access Protocol (v3): Technical Specification RFC 3565 Use of the Advanced Encryption Standard (AES) Encryption Algorithm in Cryptographic Message Syntax RFC 4346 TLS Protocol version 1.1 IEEE AND IETF RFC STANDARDS RFC - Management SNMP v1, v2c RFC 364 syslog RFC 854 telnet RFC 1156 MIB RFC 1157 SNMP RFC 1213 MIB II RFC 1350 TFTP RFC 2616 HTTP RFC 3164 The BSD Syslog Protocol Enterprise private MIBs HARDWARE Gigabit RJ45 Ports LAN Switch 4-port 10/100/1000 USB Port 1 port for USB storage More floor heat maps Extended statistics history Major Regulatory Compliance FCC Class A, CE, WEEE, RoHS Storage and Operating Temperatures Operating temperature 0°-45° C (32°-113° F) Storage temperature -20°-70° C (-4°-158° F) Humidity Operation 90% Maximum Relative, Storage 95% Maximum Relative Electrical Specifications 100-240V, AC/50-60Hz, Universal Input, DC 5V/8A (internal power supply) Ordering Information - Controller Global (outside of China and India): WC7600-20000S China: WC7600-200PRS India: WC7600-200INS Ordering Information - Licenses Incremental 5-AP License Upgrade: WC05APL-10000S Incremental 50-AP License Upgrade: WC50APL-10000S

Berat dan ukuran Netgear ProSafe WC7600 High Performance Wireless Controller

Weight kg/lb	3.6/7.9
Dimensions	Dimensions (W x H x D) cm 44.0 x 26.2 x 4.3 Dimensions (W x H x D) in 17.3 x 10.3 x 1.7

Isi Paket Netgear ProSafe WC7600 High Performance Wireless Controller

Package Contents

WC7600 ProSafe Wireless Controller, Ethernet cable, power cords, installation guide

Ringkasan Produk Netgear ProSafe WC7600 High Performance Wireless Controller

Prestasi
algoritma uFast ™ memberikan mudah dan cepat penemuan Access Point dan manajemen firmware
Sepenuhnya didistribusikan L2 dan L3 jelajah memungkinkan kinerja yang optimal dan throughput maksimum untuk mobilitas mulus
kontrol otomatis AP daya pancar dan saluran alokasi memastikan cakupan terbaik dengan meminimalkan gangguan
Load balancing dan pembatasan menyediakan alokasi bandwidth yang adil di antara semua klien untuk konektivitas nirkabel yang kuat

Nilai bisnis
Memaksimalkan fleksibilitas investasi dengan bayar karena Anda pergi lisensi. Setiap WC7600 dilengkapi dengan dua lisensi evaluasi AP. manajemen tambahan dari AP dapat diaktifkan dengan 10 lisensi AP.
algoritma penyembuhan diri menyesuaikan daya dan saluran AP tetangga untuk pengalaman pengguna yang lebih baik selama gangguan dampak peristiwa
perlindungan investasi dengan dukungan dari entry level ProSAFE® Access Points dan bukti masa depan dengan Access Points 802.11ac
Memberikan tampilan lengkap dari lingkungan penerapan pelanggan dengan peta panas, saluran nirkabel, dan kekuatan sinyal untuk pelaporan real-time status jaringan.

Skalabilitas
Mendukung hingga 50 Poin Access dengan WC7600 tunggal dan hingga 150 Poin Access dengan tumpukan tiga WC7600.
Line dukungan penuh ProSAFE® Access Points dengan manajemen yang disederhanakan dan pemantauan yang komprehensif
Dukungan dari (N + 1) kontroler redundansi untuk memaksimalkan keandalan dan meminimalkan gangguan layanan
ketahanan hardware lengkap dengan dual fan tray dan pasokan listrik hot-swappable

Kemudahan penggunaan
pencarian dan semacam fungsi lengkap untuk identifikasi statistik nirkabel kunci dan kondisi lingkungan
Mudah digunakan Wizard untuk penemuan Access Points dan manajemen konfigurasi
bundel nirkabel WC7660SKT untuk kemudahan pemesanan dan penyebaran disederhanakan dengan premium 3x3 802.11n Access Points
antarmuka manajemen intuitif memungkinkan mengatur jaringan nirkabel lengkap di menit

NETGEAR Garansi
Produk ini didukung oleh NETGEAR ProSAFE® Lifetime Hardware Warranty.
Lifetime 24x7 Advanced Technical Support melalui chat
90 Hari dukungan teknis
Lifetime pengganti NBD
