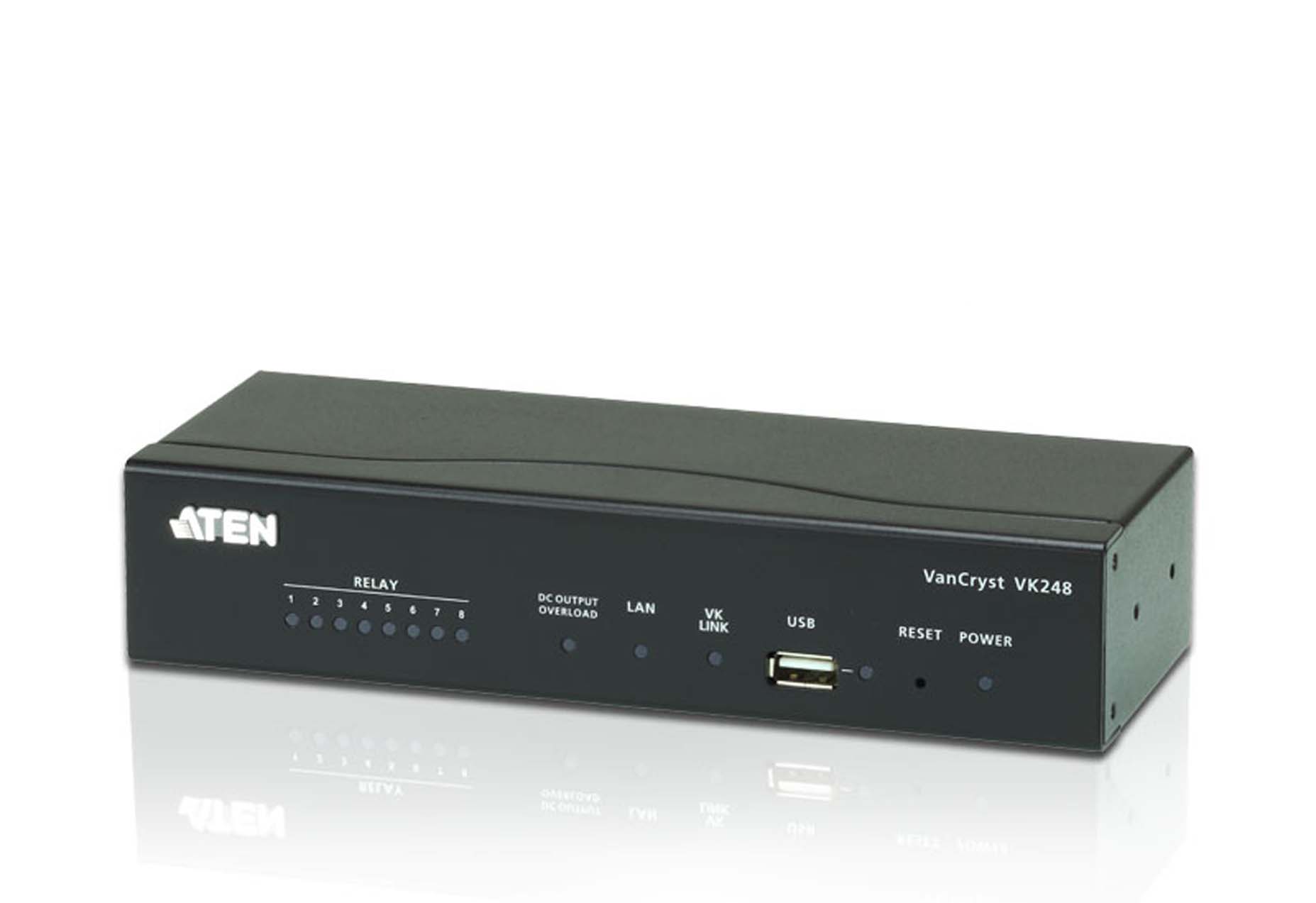

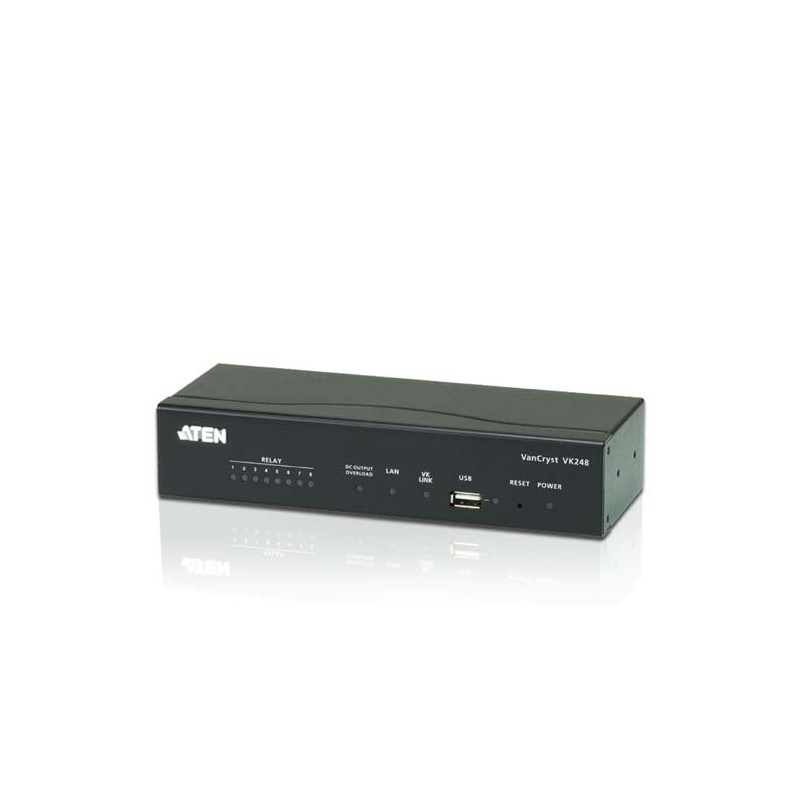

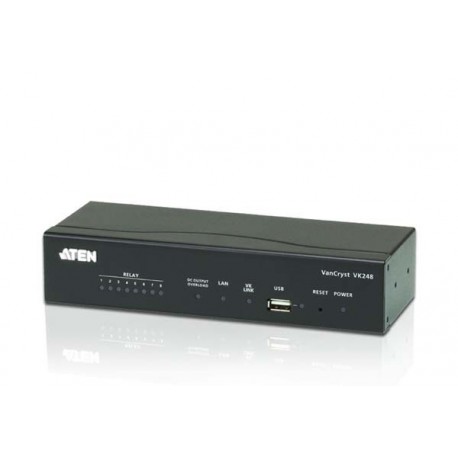

Aten VK248 8-Channel Relay Expansion Box
Kode Produk: 30841
/ET8/L10Produk baru
Info lainnya
Spesifikasi Aten VK248 8-Channel Relay Expansion Box
| Interfaces | Relay 8 normally open relays (8 x 2-pole terminal block) Contact Rating: Max 24 VDC, 2A Ethernet 1 x RJ-45 Female, 10/100Base-T Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0 |
| Controller ID | 1 x 16-segment Switch |
| Expander ID | 1 x 8-segment Switch |
| Reset Button | 1 x Semi-recessed Pushbutton |
| USB | 1 x USB Type A (Firmware upgrade only) |
| Power | Consumption 5 VDC, 10 W (Adapter); 48 VDC, 13 W (PoE, PoE 802.3 AF/AT compatibility) Output 12 VDC, 300 mA |
| Environmental | Operating TemperatureWeight0 – 50°C Storage Temperature –20 – 60°C Humidity 0 - 80% RH, Non-Condensing |
Berat dan ukuran Aten VK248 8-Channel Relay Expansion Box
| Weight | 0.65 kg ( 1.43 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.58 x 4.20 cm (7.87 x 2.98 x 1.65 in.) |
Isi Paket Aten VK248 8-Channel Relay Expansion Box
| Package Contents | 1x VK248 8-Channel Relay Expansion Box 1x Power Adapter 1x Mounting Kit 9x Terminal Blocks 1x User Instructions |
Ringkasan Produk Aten VK248 8-Channel Relay Expansion Box
- Memberikan 8 saluran relay untuk memperluas Sistem ATEN Kontrol
- Hingga delapan VK248 kotak ekspansi dapat ditambahkan ke satu VK2100 Kotak Kontrol
- Deployment fleksibel: Menghubungkan ke Control Box VK2100 melalui koneksi Ethernet
- ID Beralih pasangan yang VK248 dengan kontroler untuk langsung mengkonfigurasi pengaturan jaringan
- Memberikan daya DC untuk daya relay modul AC atau perangkat lainnya
- Mendukung Power over Ethernet (PoE) atau power supply DC
- Firmware diupgrade melalui USB atau antarmuka Web

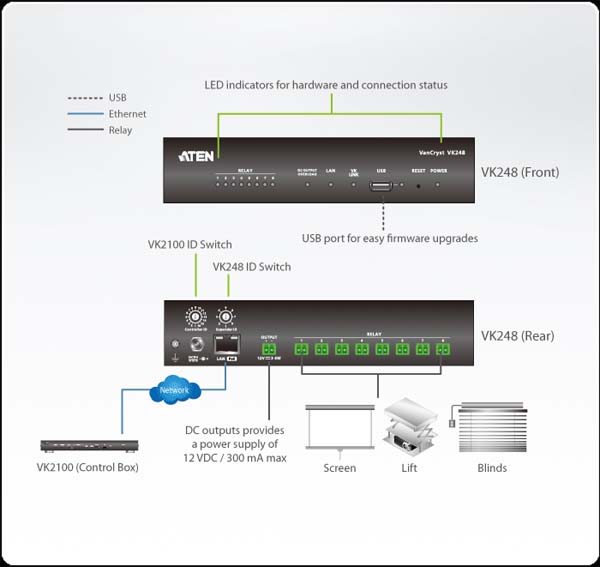

Diagram Aten VK248 8-Channel Relay Expansion Box
