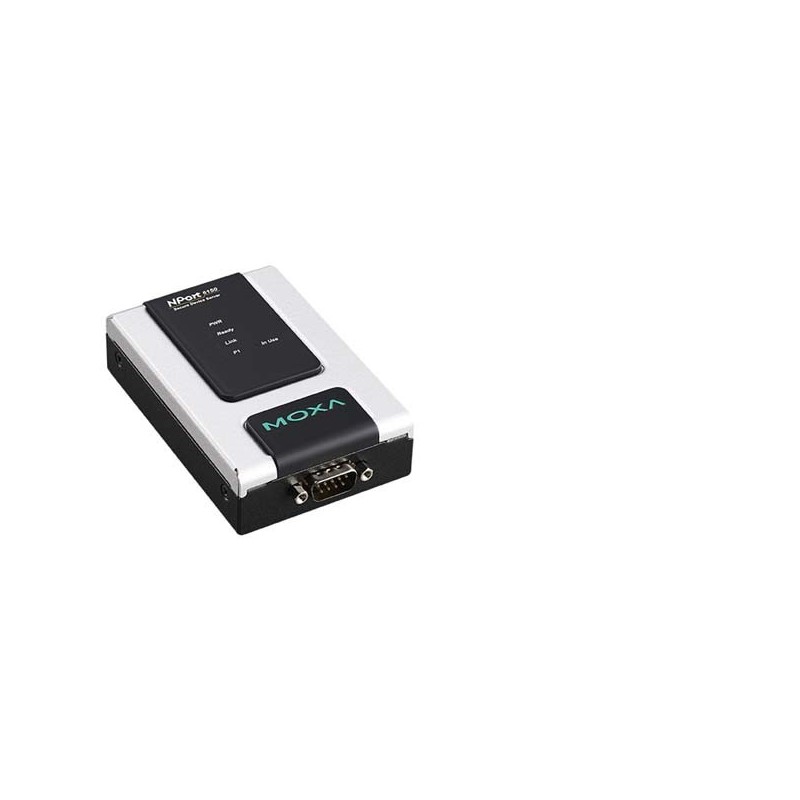

Moxa NPort 6150 1 Port RS-232/422/485 Secure Device Server

Kode Produk: 33228

Referensi EV0918

Kondisi: Produk baru

Lebih detail

Kirim ke teman

Kirim ke teman

Moxa NPort 6150 1 Port RS-232/422/485 Secure Device Server
Moxa NPort 6150 1 Port RS-232/422/485 Secure Device Server

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Moxa NPort 6150 1 Port RS-232/422/485 Secure Device Server

Ethernet Interface	Number of Ports 1 Speed 10/100 Mbps, auto MDI/MDIX Connector 8-pin RJ45 Magnetic Isolation 1.5 kV built-in
Serial Interface	Number of Ports 1 Serial Standards RS-232/422/485 Connector DB9 male RS-485 Data Direction Control ADDC® (Automatic Data Direction Control) Console Port Serial port doubles as RS-232 console port
Serial Communication Parameters	Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS, DTR/DSR, XON/XOFF Baudrate 50 bps to 921.6 kbps (supports nonstandard baudrates) Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ
Serial Signals	RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND
Software	Network Protocols ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE, HTTPS Security Protocols SSLv3, TLSv1.0/1.1/1.2 Configuration Options Web Console, Serial Console, Telnet Console, Windows Utility Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x, 4.x Android API Android 3.1.x and later Management SNMP MIB-II IP Routing Static, RIP-I, RIP-II
Operation Modes	Standard Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled Secure Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
Applications	Terminal Sessions 8 sessions per port
Environmental Limits	Operating Temperature Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing)
Power Requirements	Input Voltage 12 to 48 VDC Input Current 285 mA @ 12 VDC Power Line Protection 1 kV burst (EN 61000-4-4: EFT/B), 1 kV surge (EN 61000-4-5)
Standards and Certifications	Safety UL 60950-1 EMC EN 55032/24 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 Freefall IEC-68-2-6, IEC-68-2-34, IEC-68-2-32 Vibration IEC-68-2-6, IEC-68-2-34 Green Product RoHS, CRoHS, WEEE Transportation NEMA TS2
Reliability	Alert Tools Built-in buzzer and RTC (real-time clock) Automatic Reboot Trigger Built-in WDT (watchdog timer)
MTBF (mean time between failures)	Time 2,097,705 hrs Standard Telcordia (Bellcore) Standard TR/SR
Warranty	Warranty Period 1 years

Berat dan ukuran Moxa NPort 6150 1 Port RS-232/422/485 Secure Device Server

Physical Characteristics	Housing Metal Weight 700 g (1.54 lb) Dimensions Without ears: 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in) With ears: 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)

Ringkasan Produk Moxa NPort 6150 1 Port RS-232/422/485 Secure Device Server

NPort® 6150 Server perangkat 1-port menggunakan protokol SSL dan SSH untuk mengirim data serial terenkripsi melalui Ethernet. Port serial 3-in-1 NPort® 6150 mendukung RS-232, RS-422, dan RS-485, dengan antarmuka yang dipilih dari menu konfigurasi yang mudah diakses.

Transmisi Data Aman
Untuk banyak aplikasi, menjamin transmisi data yang aman adalah masalah penting saat menghubungkan perangkat serial ke jaringan. Untuk menjawab kekhawatiran ini, NPort® 6150 mendukung protokol SSL dan SSH, yang bekerja dengan mengenkripsi data sebelum mengirimnya melalui jaringan. Dengan NPort® 6150, pengguna dapat merasa yakin bahwa data serial dikirimkan secara aman melalui jaringan pribadi dan publik.
