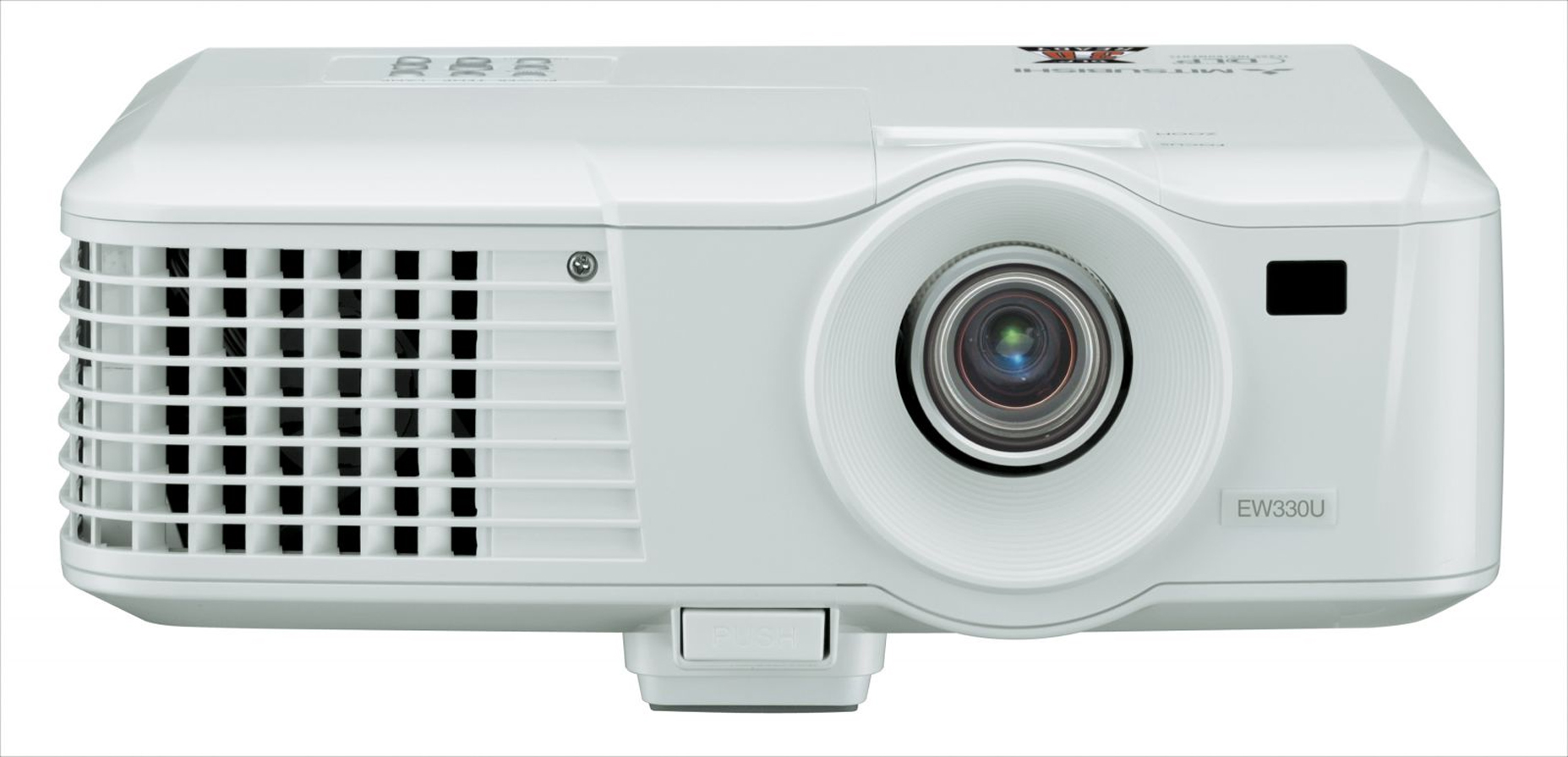

Mitsubishi EW330U ANSI LUMENS 3000 WXGA

Spesifikasi produk Projector Mitsubishi EW330U ANSI LUMENS 3000 WXGA

Display technology

• 0.65" 1-Chip DMD, DDP2430/2431

Resolution

• 1280 x 800 (Total 1,024,000 pixels)

Brightness (Maximum)

• 3000 ANSI lumens

Contrast

• 2000:1

Colour Wheel

• 6 seg. Colour Wheel (R/G/B/W/Y/C)

Picture Size

• 40" ~ 300"

Zoom/Focus

• Manual Focus & Zoom Lens (Zoom Ratio 1.3:1)

Projection Lens

• f=16.9~21.9 mm, F=2.6 ~2.9, (2.6-3.4m@100")

Off set axis

• 41.0:-1 , Hd = 0.03m up @100"

Source lamp

• 230W / 3,500 hours (Normal mode)* 170W / 5,000 hours (Low mode)*

Computer compatibility

• Resolution ; 640 x480 (Expand) - 1280 x 800 (Real) - 1600 x 1200 (Compressed), Sync on green available

Video compatibility

• NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p(1125i/p 50Hz)

PC input terminals

• RGB:mini D-sub 15 pin x 2; Digital: HDMI (ver1.2) x 1; Audio: Stereo mini jack x 1 (3.5mm)

Video input terminals

• Composite RCA x 1, S-Video x 1

Output terminals

• RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)

Communication terminals

• RS-232C; D-sub 9pin x 1, LAN RJ-45 x 1 (Projector Control)

Scanning Rate

• [H] 31 - 99 kHz, [V] 48 - 120Hz; [Dot clock] max.170 MHz

Power consumption

• 330W (maximum) / less than 1W in power saving mode (3W if LAN connected)

Power Supply

• AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

• 29 dB(A) (Lamp low mode)

Dimensions (W x H x D)

• 282 x 94 x 229 mm (excluding all protrusions)

Weight

• 2.5 kg

Optional lamp
VLT-EX320LP
