Mitsubishi WD8200U ANSI LUMENS 6500 WXGA

Spesifikasi produk Projector Mitsubishi WD8200U ANSI LUMENS 6500 WXGA

Display technology

• 0.65" 1-Chip DMD, 12deg.LVDS, Dark Chip 2(TM) with DDP3020

Resolution

• 1280 x 800 (Total 1,024,000 pixels)

Brightness (Maximum)

• Dual Lamp: 6500 lumens; Single Lamp: 3250 lumens

Contrast

• 2000 : 1

Colour wheel

• 5 seg.Colour Wheel (R/G/B/W/Y) , 2x speed

Zoom/Focus

• Powered Focus & Zoom (Zoom Ratio 1.35:1)

Projection Lens

• f=24.5-33.1mm , F=2.0-2.4 3.8m@100"(Wide)

Off set axis

• 10 : 0 (default) with Variable H+V Powered Lens Shift (Excluding OL-XD2000FR) Hd*=0.30m up - 0.67m down @100" from lens shift 10 : 0 Wd=+/-0.20m @100" (+/-10% of Image Width)

Source lamp

• Shut Off Time: Dual Normal Mode 2000Hrs with Low Mode 4000Hrs; Single Normal Mode 4000Hrs with Low Mode 8000Hrs @Lamp Relay Mode

Computer compatibility

• Resolution ; 640 x 400 (Expand) - 1280 x 800 (Real) - 1920 x 1200 (Compress), Sync on Green available

Video compatibility

• NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), 1080p(1125p 50/60Hz), (1080i(1250i 50Hz) is not available) SCART (RGB + 1V sync, only Mini D-Sub 15pin Terminal)

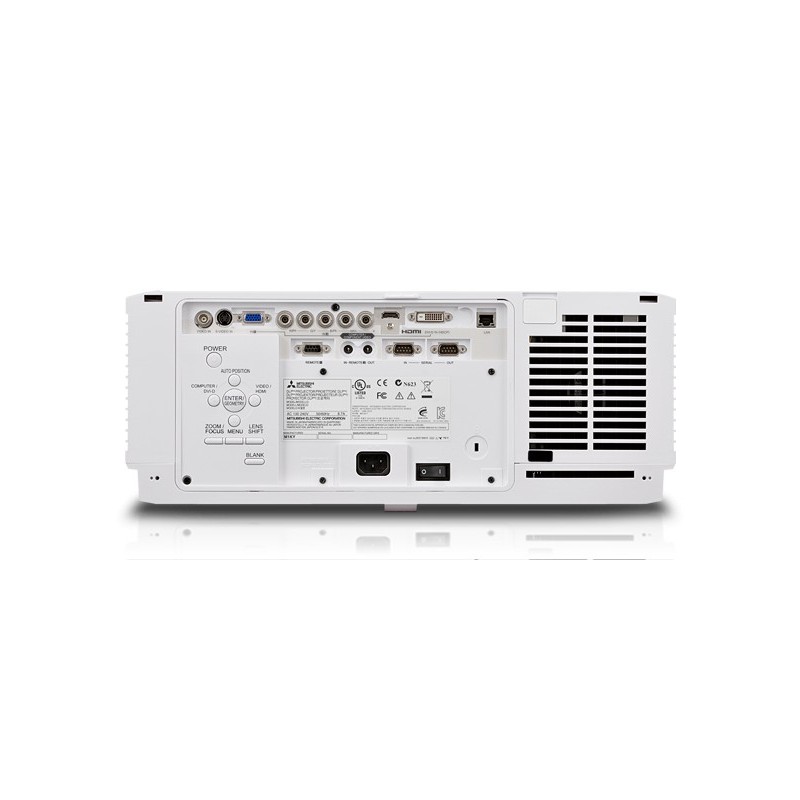

PC input terminals

• 5 BNC x 1, Mini D-Sub 15pin x 1; DVI-D(with HDCP) x 1; Audio: N/A

Video input terminals

• Composite RCA (BNC) x 1, (2)S-VIDEO (4pin) x 1 Audio: N/A

Communication terminals

• RS-232C ; D-Sub 9pin OUT (Direct command is available.) Wired remote (IN) ; x 1 (f3.5mm Stereo mini jack ) Wired remote (OUT) : x 1 (f3.5mm Stereo mini jack ) Remote D-Sub 9-pin (female) x 1

Scanning Rate

• [H]15 - 100 kHz; [V]50 - 95 Hz; [Dot clock] max.162 MHz

Fan noise

• 28dBA (Lamp low mode)

Dimensions (W x H x D)

• 490W) x 201(H) x 421(D) mm (including detachable terminal cover)

Weight

• 16.0 kg

Power Consumption

• 860W/8.7A 0.3W in Standby Mode (2W when connected to a network via LAN)

Power supply

• AC 100 - 240 V, 50/60Hz

Optional lamp

• VLT-XD8000LP

Optional Accessories

• OL-XD2000FR / OL-XD8000UZ Changeable Colour Wheel of Rich Colour Reproduction Type ,CW-FC2 (6seg , R/G/B/C/Y/M)

Included accessories

• AC Power Cable :2.9m x 1 RGB cable :1.8m x1 RS-232C cable :1.8m x 1 Remote unit (incl. battery) x 1 Terminal Cover x 1 User Manual (CD-ROM) : Eng / Fra / Ger / Spa / Ita / Chi/ Por Safety Manual : Eng / Fra / Ger / Spa / Ita / Chi/ Kor / Por / Rus(incl. explanation for Quick Start) Mitsubishi logo badge x 1 Labels for ceiling installation x 3
