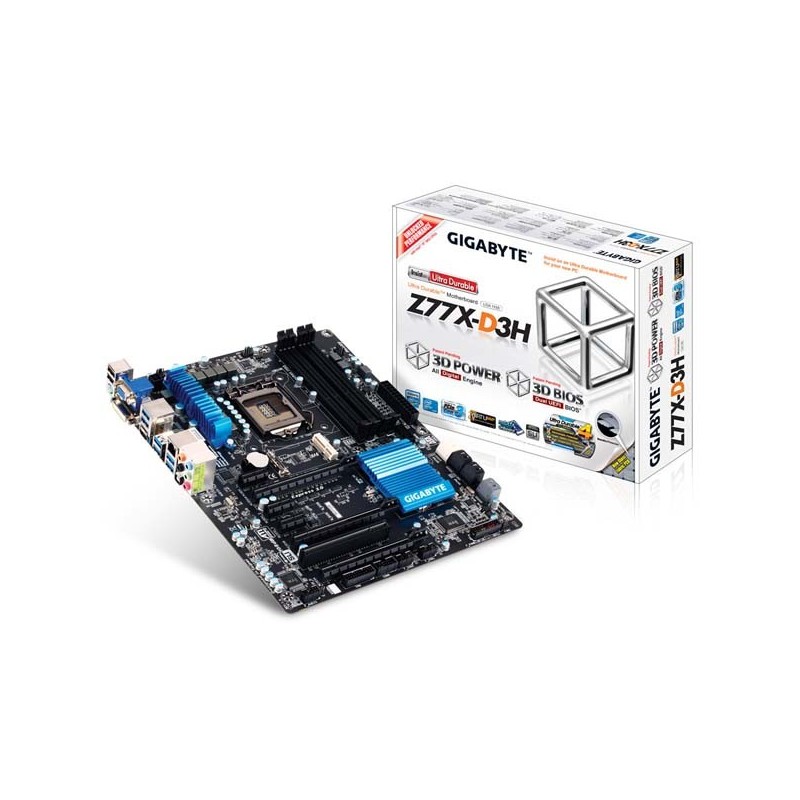

Gigabyte GA-Z77X-D3H LGA1155 Z77 DDR3

Spesifikasi produk Motherboard Intel Gigabyte GA-Z77X-D3H LGA1155 Z77 DDR3

Model
Brand

• GIGABYTE

Model

• GA-Z77X-D3H

Supported CPU
CPU Socket Type

• LGA 1155

CPU Type

• Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)

Chipsets
Chipset

• Intel Z77

Memory
Number of Memory Slots

• 4×240pin

Memory Standard

• DDR3 2400(OC)/1600/1333/1066

Maximum Memory Supported

• 32GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 3.0 x16

• 1

PCI Express 2.0 x16

• 2 (x8, x4)

PCI Express x1

• 3

PCI Slots

• 1

Storage Devices
SATA 3Gb/s

• 4

SATA 6Gb/s

• 4 x SATA 6Gb/s

SATA RAID

• 2 x SATA 6Gb/s (SATA3 0/SATA3 1), 4 x SATA 3Gb/s (SATA2 2~SATA2 5) and 1 x mSATA (The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.)
• Support for RAID 0, RAID 1, RAID 5, and RAID 10

Onboard Video
Onboard Video Chipset

• Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset

• VIA VT2021

Audio Channels

• 8 Channels

Onboard LAN
Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 1 x PS/2 keyboard/mouse port

Video Ports

• D-Sub + DVI

HDMI

• 1 x HDMI

USB 3.0

• 6 x USB 3.0

USB 1.1/2.0

• 2 x USB 2.0

S/PDIF Out

• 1 x Optical

Audio Ports

• 5 Ports

Internal I/O Connectors
Onboard USB

• 2 x USB 3.0 + 4 x USB 2.0

Other Connectors

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x mSATA connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Trusted Platform Module (TPM) header

Physical Spec
Form Factor

• ATX

Dimensions (W x L)

• 12.0" x 9.6"

Power Pin

• 24 Pin

Features
Features

• GIGABYTE All Digital Power Engine
• GIGABYTE 3D Power Utility
• GIGABYTE 3D BIOS
• 3rd Generation Intel Core processors
• Designed for PCI Express Gen.3 Support
• Intel Rapid Start Technology
• Intel Smart Connect Technology
• GIGABYTE Ultra Durable 4 Classic
